Vishay Cera-Mite 562R10TST47RB Ceramic Capacitor - Equivalent & Substitute Parts

Part Overview

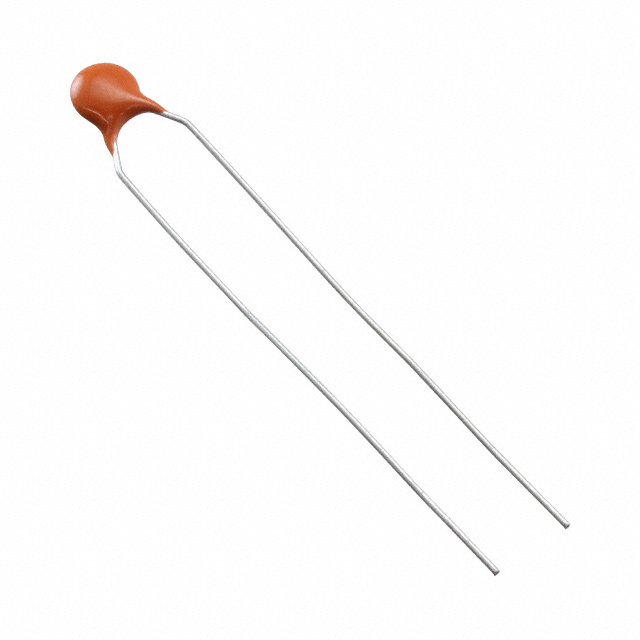

The Vishay Cera-Mite 562R10TST47RB is a 470 pF ceramic capacitor rated for 1000V (1kV) with X5F temperature coefficient, designed for general-purpose through-hole applications. This part is classified as obsolete, making identification of active equivalent and substitute components essential for ongoing design support and procurement continuity. The radial disc configuration with straight leads provides standard through-hole mounting compatibility.

Substiute Parts

562R10TST47RB

Vishay Cera-MiteIn Stock: 820562R10TST47RB Datasheet

Current PartRFQ

561R1DF0T47

Vishay Cera-MiteIn Stock: 1045561R1DF0T47 Datasheet

MFR RecommendedRFQ

561R1DF0T47LB

Vishay Cera-MiteIn Stock: 924561R1DF0T47LB Datasheet

MFR RecommendedRFQ

562R10TST47

Vishay Cera-MiteIn Stock: 2931562R10TST47 Datasheet

Parametric EquivalentRFQ

562R10TST47RE

Vishay Cera-MiteIn Stock: 880562R10TST47RE Datasheet

Parametric EquivalentRFQ

562R10TST47WK

Vishay Cera-MiteIn Stock: 750562R10TST47WK Datasheet

Parametric EquivalentRFQ

S471K25X5FN63L6R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 2017S471K25X5FN63L6R Datasheet

MFR RecommendedRFQ

S471K25X5FN6TJ5R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 765S471K25X5FN6TJ5R Datasheet

MFR RecommendedRFQ

S471K25X5FN6TJ6R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 18456S471K25X5FN6TJ6R Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 562R10TST47RB is determined by strict parameter matching across electrical and mechanical specifications. The following criteria define valid substitutes:

Core Electrical Parameters (Non-Negotiable):

• Capacitance: 470 pF
• Tolerance: ±10%
• Voltage Rating: 1000V (1kV)
• Temperature Coefficient: X5F or N2800 (alternative temperature coefficient with equivalent operating range)

Mechanical Parameters (Compatibility-Critical):

• Mounting Type: Through Hole
• Package Type: Radial, Disc
• Lead Spacing: 0.252" (6.40mm) or compatible spacing for PCB layout

Compliance Requirements:

• RoHS3 Compliant
• ECCN: EAR99

Substitutes are grouped into two categories: MFR Recommended (manufacturer-approved alternatives with active product status) and Parametric Equivalents (parts matching all electrical specifications with minor packaging variations).

Parameter Comparison

Engineering Selection Recommendations

Direct Parametric Equivalents (Preferred for Retrofit):

The 562R10TST47, 562R10TST47RE, and 562R10TST47WK are parametric equivalents with identical electrical specifications and mechanical dimensions to the obsolete 562R10TST47RB. All three are active products with ROHS3 compliance. These parts maintain the same X5F temperature coefficient and operating temperature range, ensuring direct functional compatibility without PCB layout modifications.

MFR Recommended Alternatives (Temperature Coefficient Variation):

The 561R1DF0T47 and 561R1DF0T47LB feature N2800 temperature coefficient instead of X5F, with identical capacitance, voltage rating, and operating temperature range. These parts are manufacturer-recommended substitutes with active product status. The larger physical diameter (0.291" vs. 0.252") requires PCB layout verification but maintains the same lead spacing. Low dissipation factor is specified as a feature.

Cross-Manufacturer Alternatives (Extended Temperature Range):

The Vishay Beyschlag/Draloric/BC Components S-series parts (S471K25X5FN63L6R, S471K25X5FN6TJ5R, S471K25X5FN6TJ6R) provide X5F temperature coefficient with extended operating range (-55°C ~ 125°C). These parts feature formed leads with kinked configuration and reduced lead spacing (0.197" for TJ variants). All are active products with ROHS3 compliance. PCB layout verification is required due to dimensional and lead configuration differences.

Frequently Asked Questions (FAQ)

Q: Can I use 561R1DF0T47 as a direct replacement for 562R10TST47RB?

A: The 561R1DF0T47 is a manufacturer-recommended substitute with matching capacitance, voltage rating, and operating temperature range. The primary difference is temperature coefficient (N2800 vs. X5F) and physical diameter (0.291" vs. 0.252"). Both maintain 0.252" lead spacing. Verify your circuit design does not require the specific X5F temperature coefficient behavior before substitution.

Q: What is the difference between X5F and N2800 temperature coefficients?

A: Both temperature coefficients are provided in the input data as valid alternatives for this application. The selection between them depends on your circuit's temperature stability requirements. Consult your design specifications to determine which coefficient is appropriate for your application.

Q: Can I use S471K25X5FN6TJ6R in place of 562R10TST47RB?

A: The S471K25X5FN6TJ6R matches all electrical parameters (470 pF, 1000V, X5F, ±10% tolerance) and offers extended operating temperature range (-55°C ~ 125°C). However, it has reduced lead spacing (0.197" vs. 0.252") and formed leads with kinked configuration. PCB layout modification is required. Verify your board design accommodates the different lead spacing and lead style before implementation.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All substitute parts listed are ROHS3 compliant and maintain the same compliance status as the original 562R10TST47RB.

Q: What is the inventory status of these substitute parts?

A: All substitute parts are active products with current inventory availability. The 562R10TST47 variant has the highest inventory (2893 pcs), followed by S471K25X5FN6TJ6R (18368 pcs). Verify current stock levels with your supplier for procurement planning.

Q: Do I need to modify my PCB layout to use these substitutes?

A: Parametric equivalents (562R10TST47, 562R10TST47RE, 562R10TST47WK) require no layout changes. The 561R1DF0T47 series requires verification due to larger diameter. The S471K25X5FN6TJ variants require layout modification due to reduced lead spacing (0.197" vs. 0.252") and formed lead configuration.
