Equivalent & Substitute Parts for 562R10TSD10BA

Part Overview

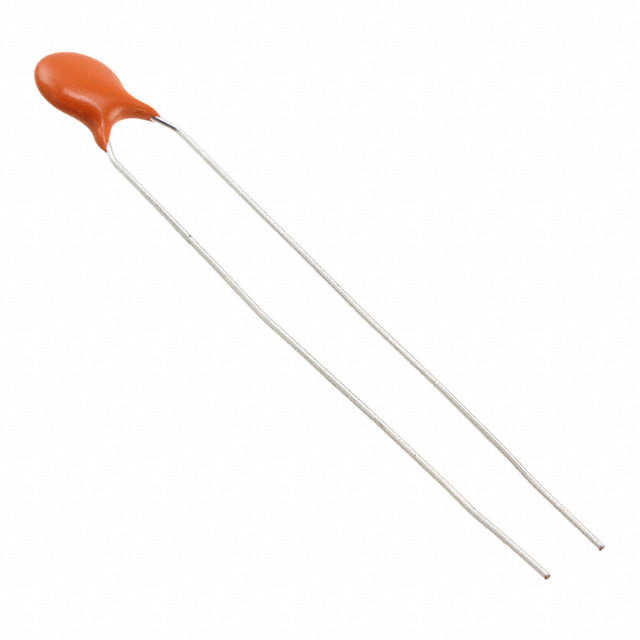

The Vishay Cera-Mite 562R10TSD10BA is a 1000 pF ceramic capacitor rated at 1000V with X5F temperature coefficient, designed for general-purpose applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance requirements. The radial, disc-type construction with through-hole mounting provides compatibility with standard PCB assembly processes.

Substiute Parts

562R10TSD10BA

Vishay Cera-MiteIn Stock: 884562R10TSD10BA Datasheet

Current PartRFQ

562R10TSD10TR

Vishay Cera-MiteIn Stock: 11082562R10TSD10TR Datasheet

DirectRFQ

561R1DF0D10

Vishay Cera-MiteIn Stock: 6454561R1DF0D10 Datasheet

MFR RecommendedRFQ

562R5HKD10

Vishay Cera-MiteIn Stock: 2590562R5HKD10 Datasheet

MFR RecommendedRFQ

562R5TSD10

Vishay Cera-MiteIn Stock: 2775562R5TSD10 Datasheet

MFR RecommendedRFQ

562R10TSD10RE

Vishay Cera-MiteIn Stock: 950562R10TSD10RE Datasheet

Parametric EquivalentRFQ

562R10TSD10

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 2503562R10TSD10 Datasheet

DirectRFQ

S102K29X5FN63L6R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 15915S102K29X5FN63L6R Datasheet

MFR RecommendedRFQ

S102K29X5FN6TJ5R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 21552S102K29X5FN6TJ5R Datasheet

MFR RecommendedRFQ

S102K29X5FN6TJ6R

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 972S102K29X5FN6TJ6R Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the 562R10TSD10BA is determined by strict equivalence across the following critical parameters: capacitance value (1000 pF), voltage rating (1000V), tolerance (±10%), temperature coefficient (X5F), mounting type (through hole), and package configuration (radial disc). Lead spacing and physical dimensions are secondary considerations that may vary within acceptable mechanical tolerances for PCB assembly.

The substitute parts are grouped into three categories:

Direct Packaging Equivalent: Parts with identical electrical specifications and packaging format but different distribution channels or tape configurations.

Manufacturer-Recommended Alternatives: Parts with identical capacitance, voltage, and tolerance but different temperature coefficients (N2800, Z5U, X7R) or lead configurations, suitable when thermal performance requirements differ from the original specification.

Parametric Equivalents: Parts meeting all core electrical parameters with minor dimensional or lead-style variations that remain compatible with standard through-hole PCB layouts.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Direct Equivalents): 562R10TSD10TR, 562R10TSD10RE, and 562R10TSD10 are direct electrical and mechanical equivalents to the obsolete 562R10TSD10BA. All three maintain identical capacitance, voltage rating, temperature coefficient (X5F), and lead spacing. These parts are active products with ROHS3 compliance and are recommended as first-choice replacements.

Alternative Temperature Coefficients: 561R1DF0D10 (N2800), 562R5HKD10 (Z5U), and 562R5TSD10 (X7R) provide substitution when thermal stability requirements differ from X5F specifications. These parts maintain the same capacitance, voltage, and tolerance but offer different temperature performance characteristics. Selection depends on circuit thermal requirements.

Lead Spacing Variants: S102K29X5FN63L6R, S102K29X5FN6TJ5R, and S102K29X5FN6TJ6R feature reduced lead spacing (0.197" versus 0.252") and extended operating temperature range (-55°C ~ 125°C). These parts are suitable for applications requiring tighter PCB pitch or enhanced thermal performance. PCB layout modification may be required due to lead spacing differences.

All substitute parts maintain ROHS3 compliance and are suitable for applications requiring regulatory adherence.

Frequently Asked Questions (FAQ)

Q: Can 562R10TSD10TR be used as a direct replacement for 562R10TSD10BA? A: Yes. Both parts share identical electrical specifications (1000 pF, 1000V, ±10%, X5F) and mechanical configuration (radial disc, 0.252" lead spacing, through-hole mounting). The primary difference is packaging format (cut tape versus bulk), which does not affect electrical performance or PCB compatibility.

Q: What is the difference between X5F, N2800, Z5U, and X7R temperature coefficients? A: These designations specify capacitance stability across temperature ranges. X5F provides ±5% capacitance change over -55°C to 105°C. N2800 offers low dissipation factor performance. Z5U and X7R provide different temperature stability profiles. Selection depends on circuit requirements for capacitance stability at operating temperatures.

Q: Can S102K29X5FN6TJ5R replace 562R10TSD10BA in existing PCB layouts? A: Electrical substitution is valid (1000 pF, 1000V, X5F). However, lead spacing differs (0.197" versus 0.252"), requiring PCB layout modification. The part is mechanically compatible with through-hole assembly but cannot be used in existing PCB designs without drilling adjustment.

Q: Are all substitute parts ROHS3 compliant? A: Yes. All listed substitute parts maintain ROHS3 compliance, suitable for applications requiring regulatory adherence to hazardous substance restrictions.

Q: What inventory considerations apply to these substitutes? A: 562R10TSD10TR offers the highest inventory availability (11,068 pcs), followed by S102K29X5FN6TJ5R (21,511 pcs). Parts with lower inventory may require longer lead times for procurement.
