Dialight 5593501804F LED Panel Indicator Equivalent & Substitute Parts

Part Overview

The Dialight 5593501804F is an active production LED panel indicator featuring dual-color (green/red) snap-in configuration with 5mm T-1 3/4 lens format. This component is designed for panel-mount applications requiring simultaneous red and green indicator capability. The part is ROHS3 compliant and maintains unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical performance, mechanical fit, and compliance certifications are maintained across the product line.

Substiute Parts

5593501804F

DialightIn Stock: 11355593501804F Datasheet

Current PartRFQ

5593501007F

DialightIn Stock: 19925593501007F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Dialight 5593501804F is determined by strict equivalence across the following critical parameters:

• Electrical specifications: Forward voltage (2.3V green, 2.1V red) and maximum current (30mA both colors)
• Mechanical compatibility: Round panel cutout (0.25" / 6.35mm), 5mm T-1 3/4 lens format, round domed top lens style
• Optical performance: Millicandela ratings (8mcd green, 5mcd red), wavelength peaks (565nm green, 635nm red), and 65° viewing angle
• Compliance certifications: ROHS3 compliance and REACH unaffected status
• Product status: Active production status

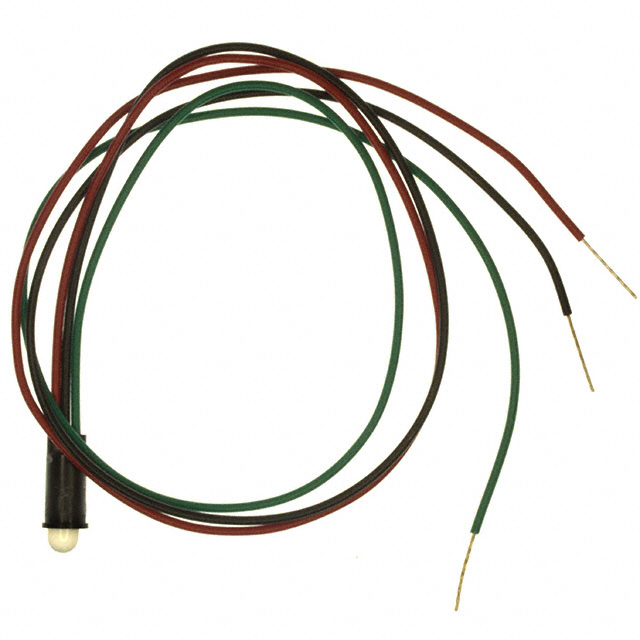

The substitute part 5593501007F maintains all electrical, mechanical, and optical parameters. The primary difference is termination style: the main part uses snap-in configuration, while the substitute employs wire leads (14" / 355.60mm). Both parts share identical base product number (5593501) and belong to the same 559 series.

Parameter Comparison

Engineering Selection Recommendations

Both the Dialight 5593501804F and 5593501007F are active production components with identical ROHS3 and REACH compliance certifications. Selection between these parts is determined by application mounting requirements:

The 5593501804F snap-in configuration is suitable for direct panel-mount applications where the component is inserted into a 0.25" round cutout and secured mechanically through the panel.

The 5593501007F wire lead configuration (14" leads) is suitable for applications requiring remote mounting, flexible positioning, or integration into harness assemblies where direct panel mounting is not feasible.

Both parts maintain identical electrical performance (2.3V/30mA green, 2.1V/30mA red), optical output (8mcd green, 5mcd red), and spectral characteristics (565nm green, 635nm red). The lens transparency difference (clear vs. diffused) affects light distribution characteristics but does not alter electrical compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 5593501007F wire lead version replace the 5593501804F snap-in version in a panel-mount application?

A: Electrical and optical compatibility is maintained. However, mechanical integration differs: the snap-in version requires a 0.25" round panel cutout with mechanical retention, while the wire lead version requires terminal connection points. Panel cutout compatibility cannot be assumed without application-specific design review.

Q: What is the difference between clear and diffused lens transparency?

A: The 5593501804F features a clear lens, while the 5593501007F features a diffused lens. Both maintain identical millicandela ratings (8mcd green, 5mcd red) and wavelength peaks (565nm green, 635nm red). Diffused lenses scatter light over a wider area, while clear lenses concentrate light output. Selection depends on desired light distribution in the application.

Q: Are both parts suitable for the same voltage and current specifications?

A: Yes. Both parts operate at identical forward voltages (2.3V green, 2.1V red) and maximum currents (30mA green, 30mA red). Circuit design and current-limiting resistor calculations are equivalent for both parts.

Q: Do both parts meet the same compliance requirements?

A: Yes. Both the 5593501804F and 5593501007F are ROHS3 compliant, REACH unaffected, and carry MSL 1 (unlimited) moisture sensitivity rating. Compliance certifications are identical.

Q: What is the viewing angle for both parts?

A: Both parts maintain a 65° viewing angle, ensuring consistent visibility characteristics across the product line.
