Equivalent & Substitute Parts Reference: Eaton Bussmann 5591-52-R

Part Overview

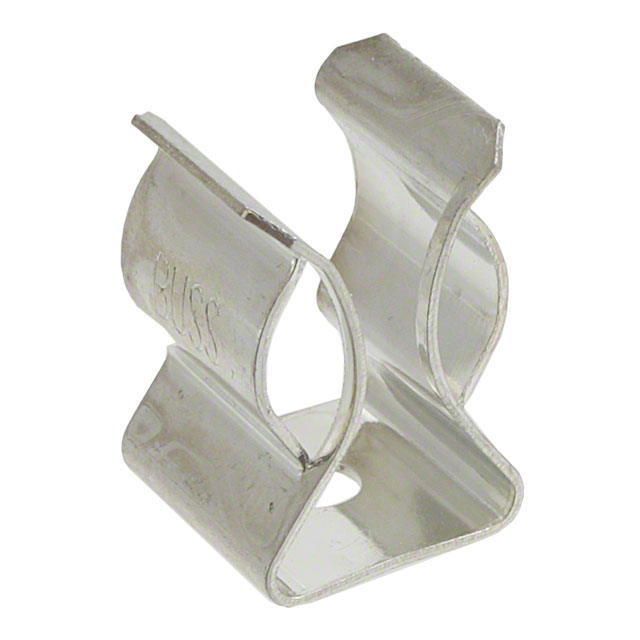

Manufacturer part number 5591-52-R from Eaton - Bussmann Electrical Division is a chassis-mount fuse clip designed for cartridge-type fuses. It supports one circuit and accommodates 0.563" diameter (14.3mm) fuses, specifically 9/16" diameter cartridge fuses. The product status is listed as Obsolete, necessitating identification of suitable substitute parts for continued designs, service, or maintenance. Obsolescence requires selection of alternatives with matching electrical and mechanical parameters for functional and compliance assurance.

Substiute Parts

5591-52-R

Eaton - Bussmann Electrical DivisionIn Stock: 10145591-52-R Datasheet

Current PartRFQ

5592-01

Eaton - Bussmann Electrical DivisionIn Stock: 12805592-01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined strictly by matching the following key parameters: chassis mounting type, fuse size (0.563" diameter / 14.3mm), compatibility with 9/16" diameter cartridge fuses, number of circuits (1), termination style (screw terminal), and compliance (RoHS, ECCN, HTSUS). For products in this category, material and contact finish distinctions are only considered if they affect form, fit, or function based on provided data. The substitute part 5592-01 meets all stipulated criteria for direct replacement within the same functional scope.

Parameter Comparison

Engineering Selection Recommendations

Selection of Eaton Bussmann 5592-01 as a substitute for 5591-52-R is based on matching chassis mounting type, fuse size compatibility, number of circuits, and termination style. Both parts are RoHS compliant and meet the same ECCN and HTSUS classifications. The substitute part 5592-01 is active, allowing use in ongoing designs or replacements in existing assemblies as required by the obsolescence of 5591-52-R.

Frequently Asked Questions (FAQ)

Q1: What determines whether a fuse clip is suitable as a substitute in this category?
Substitution is determined by mounting type, fuse size, circuit count, termination style, and compliance standards. Parts must meet all these criteria exactly.

Q2: Are there compatibility concerns with using 5592-01 in place of 5591-52-R?
Based on provided parameters, 5592-01 matches 5591-52-R in mounting, fuse compatibility, electrical connection type, and compliance, ensuring direct compatibility.

Q3: How does contact material and finish affect substitution?
Contact material and finish are provided for reference. Substitution is allowed if core mechanical and electrical parameters are matched, as detailed above.

Q4: What package considerations should be evaluated when selecting substitutes?
Both parts are offered in bulk packaging. There are no packaging differences affecting selection for this product category.

Q5: Is RoHS compliance maintained with the substitute part?
Yes, both 5591-52-R and 5592-01 are RoHS compliant per the provided data.
