LED Panel Indicator 5583201023F Equivalent & Substitute Parts

Part Overview

The Dialight 5583201023F is an LED panel indicator featuring dual-color capability (Green/Yellow) with snap-in mounting. This component is classified as Active product status and is fully RoHS3 compliant. The part is designed for applications requiring visual status indication with standard panel cutout integration. Substitute parts become necessary when addressing inventory constraints, lead time requirements, or specific packaging preferences while maintaining identical electrical and mechanical performance.

Substiute Parts

5583201023F

DialightIn Stock: 8275583201023F Datasheet

Current PartRFQ

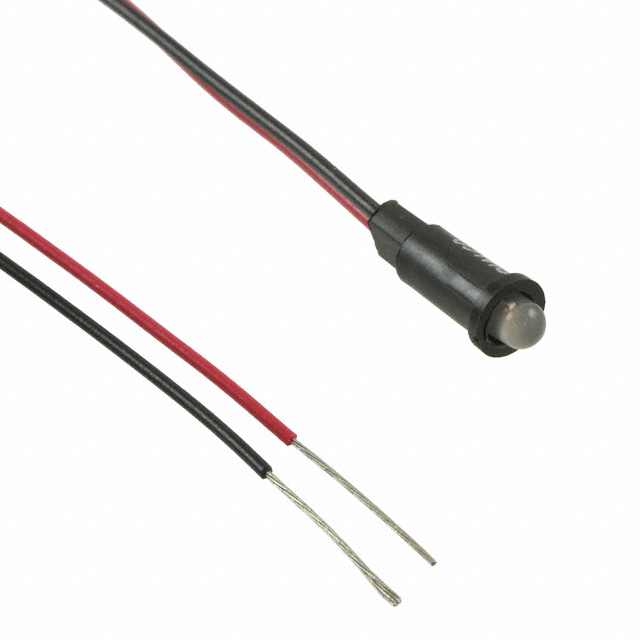

5583201003F

DialightIn Stock: 15755583201003F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5583201023F is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5583201003F qualifies as a parametric equivalent based on the following criteria:

Critical Parameters for Substitution:

• Identical voltage specifications: 2.1V Green, 2.1V Yellow
• Identical current ratings: 30mA Green, 20mA Yellow
• Identical lens configuration: 3mm, T-1, Round with Domed Top
• Identical panel cutout dimensions: 0.16" (4.06mm), Round shape
• Identical viewing angle: 80°
• Identical optical output: 12.3mcd Green, 5.8mcd Yellow
• Identical wavelength characteristics: 565nm Green, 585nm Yellow
• Identical termination: Wire Leads - 6" (152.40mm)
• Identical series classification: 558
• Identical compliance status: ROHS3 Compliant, REACH Unaffected

Both parts share the same base product number (5583201), confirming their functional equivalence within the Dialight product family.

Parameter Comparison

Engineering Selection Recommendations

Both the 5583201023F and 5583201003F are Active status products manufactured by Dialight within the 558 series. Selection between these parts should be based on inventory availability and packaging requirements rather than technical performance, as all electrical and mechanical parameters are identical.

The 5583201003F currently maintains higher inventory levels (1514 pcs) compared to the 5583201023F (805 pcs), making it suitable for applications where lead time optimization is a consideration. Both parts maintain full ROHS3 compliance and REACH Unaffected status, ensuring regulatory compatibility across all markets.

Frequently Asked Questions (FAQ)

Q: Can the 5583201003F directly replace the 5583201023F in existing designs?

A: Yes. Both parts are parametric equivalents with identical electrical ratings (2.1V, 30mA Green / 20mA Yellow), mechanical dimensions (0.16" panel cutout, 3mm T-1 lens), optical characteristics (12.3mcd Green, 5.8mcd Yellow, 80° viewing angle), and termination specifications (6" wire leads). No circuit modifications are required.

Q: Are there differences in compliance or regulatory status between these parts?

A: No. Both parts carry identical ROHS3 compliance and REACH Unaffected status. Moisture Sensitivity Level is 1 (Unlimited) for both, indicating no special handling requirements during storage or assembly.

Q: What determines the difference between part numbers 5583201023F and 5583201003F?

A: The provided specifications indicate both parts share the same base product number (5583201) and identical technical parameters. Differences in the suffix designations reflect internal Dialight product line organization but do not affect functional performance or compatibility.

Q: Can these parts be used interchangeably in panel-mounted applications?

A: Yes. Both parts feature identical panel cutout specifications (0.16" round), snap-in mounting capability, and 6" wire lead termination, ensuring mechanical and electrical interchangeability in standard panel indicator applications.

Q: What is the wavelength specification for each color?

A: Green operates at 565nm peak wavelength with 12.3mcd output. Yellow operates at 585nm peak wavelength with 5.8mcd output. Both colors maintain an 80° viewing angle.
