Dialight 5583201007F LED Panel Indicator Equivalent & Substitute Parts

Part Overview

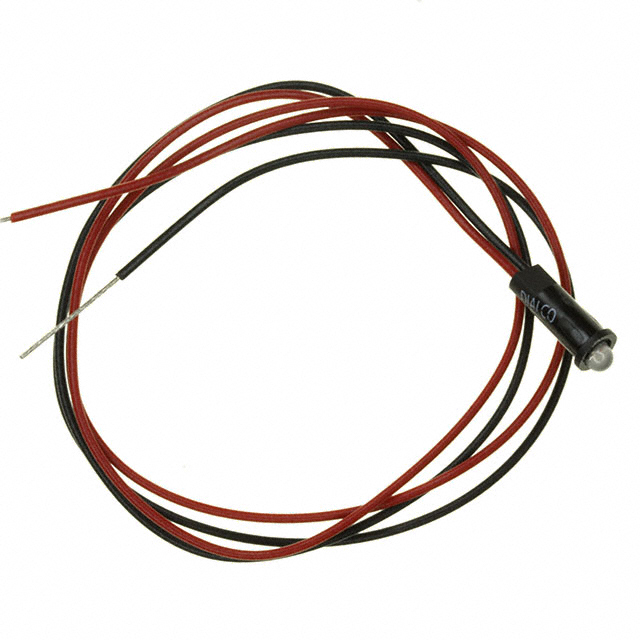

The Dialight 5583201007F is an LED panel indicator featuring dual-color operation (green and yellow) with snap-in panel mounting. This active product is designed for applications requiring visual status indication with 80° viewing angle and wire lead termination. The part is ROHS3 compliant and maintains unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when identical electrical and mechanical parameters are maintained across the product line, ensuring direct interchangeability in existing designs.

Substiute Parts

5583201007F

DialightIn Stock: 10465583201007F Datasheet

Current PartRFQ

5583201027F

DialightIn Stock: 13055583201027F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The Dialight 5583201027F qualifies as a parametric equivalent to the 5583201007F based on strict electrical and mechanical parameter matching. Both parts share identical specifications across all critical substitution criteria:

Key Parameters Determining Substitution:

• Forward voltage: 2.1V for both green and yellow channels
• Maximum current: 30mA green, 20mA yellow
• Lens configuration: 3mm T-1 round domed top
• Panel cutout: 0.16" (4.06mm) round opening
• Viewing angle: 80°
• Optical output: 12.3mcd green, 5.8mcd yellow
• Peak wavelengths: 565nm green, 585nm yellow
• Wire lead length: 14" (355.60mm)
• Compliance: ROHS3 compliant, MSL 1

The substitution is based on complete parameter equivalence. Both parts belong to the Dialight 558 series and maintain active product status.

Parameter Comparison

Engineering Selection Recommendations

Both the Dialight 5583201007F and 5583201027F are active products with full ROHS3 compliance and REACH unaffected status. Selection between these parts should be based on availability and supply chain requirements. The 5583201027F currently maintains higher inventory levels (1245 pcs vs. 950 pcs), which may influence procurement decisions for high-volume applications. Both parts carry identical electrical ratings, mechanical dimensions, and optical specifications, ensuring functional equivalence in circuit design and panel integration. No design modifications are required when substituting between these part numbers.

Frequently Asked Questions (FAQ)

Q: Can the 5583201027F directly replace the 5583201007F in existing designs? A: Yes. Both parts maintain identical electrical parameters (2.1V forward voltage, 30mA/20mA current ratings), mechanical dimensions (0.16" panel cutout, 3mm T-1 lens), and optical output (12.3mcd green, 5.8mcd yellow). Direct substitution requires no circuit or mechanical modifications.

Q: Are there differences in packaging or material composition between these parts? A: Both parts are supplied in bulk packaging and maintain ROHS3 compliance. The 5583201027F description references PVC-free construction, indicating a material specification difference. This does not affect electrical or mechanical interchangeability.

Q: What viewing angle should be considered for panel placement? A: Both parts feature an 80° viewing angle, which defines the cone of visibility for the indicator. This parameter is identical across both part numbers and should be considered during panel design and operator positioning.

Q: Are the wire lead lengths identical? A: Yes. Both parts feature 14" (355.60mm) wire leads, ensuring identical routing and connection requirements in panel assemblies.

Q: Do both parts meet the same compliance standards? A: Yes. Both the 5583201007F and 5583201027F are ROHS3 compliant, REACH unaffected, and carry MSL 1 (unlimited moisture sensitivity rating), meeting identical regulatory requirements.
