Dialight 5583001003 LED Panel Snap-In Bi-Color Red/Green Equivalent & Substitute Parts

Part Overview

The Dialight 5583001003 is a bi-color LED panel indicator with snap-in termination, featuring simultaneous red and green light output capability. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations. The part delivers 8.7mcd green and 5.6mcd red output with a 200° viewing angle, suitable for panel-mounted indicator applications requiring dual-color status indication.

Substiute Parts

5583001003

DialightIn Stock: 8855583001003 Datasheet

Current PartRFQ

5583001003F

DialightIn Stock: 12135583001003F Datasheet

DirectRFQ

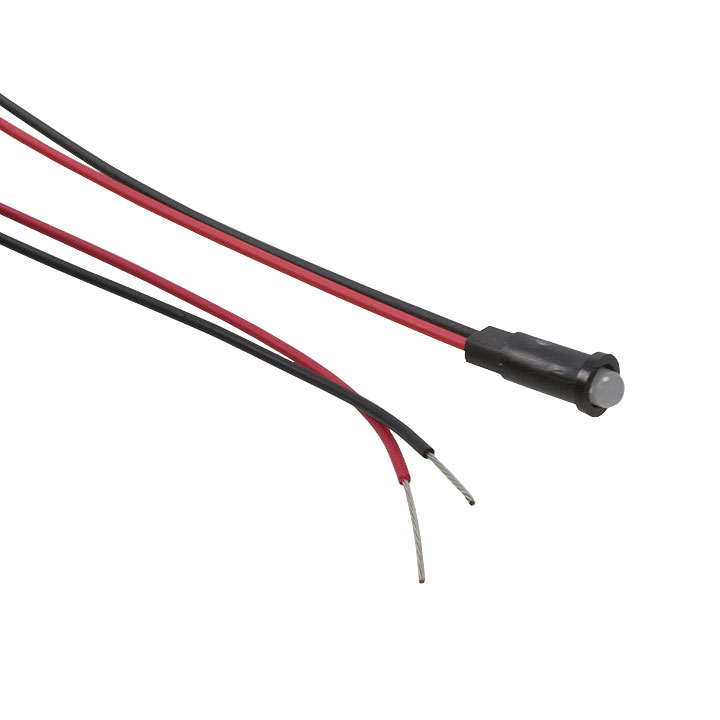

5583001023F

DialightIn Stock: 17135583001023F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Dialight 5583001003 is determined by strict equivalence across the following parameters:

• Bi-color lamp configuration (Green and Red)
• Forward voltage: 2V Green, 1.9V Red
• Forward current: 30mA Green, 30mA Red
• Lens geometry: 3mm T-1 round domed top
• Panel cutout: 0.16" (4.06mm) round
• Viewing angle: 200°
• Termination: Wire leads 6" (152.40mm)
• Wavelength peaks: 565nm Green, 630nm Red
• Luminous intensity: 8.7mcd Green, 5.6mcd Red

The substitute parts 5583001003F and 5583001023F maintain identical electrical and mechanical parameters to the original part, ensuring direct functional equivalence in panel-mounted indicator circuits.

Parameter Comparison

Engineering Selection Recommendations

Both 5583001003F and 5583001023F are active production parts from Dialight with ROHS3 compliance, addressing the obsolescence of the original 5583001003. The electrical and mechanical parameters are identical across all three parts, ensuring direct circuit compatibility.

For new designs and system replacements, 5583001003F or 5583001023F should be selected based on procurement availability and packaging requirements. Both parts maintain the same 0.16" (4.06mm) round panel cutout, wire lead termination, and bi-color output characteristics. The transition from RoHS non-compliant to ROHS3 compliant status reflects current manufacturing standards and regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can 5583001003F directly replace 5583001003 in existing designs? A: Yes. The 5583001003F maintains identical electrical ratings (2V/30mA green, 1.9V/30mA red), mechanical dimensions (0.16" panel cutout, 3mm T-1 lens), and optical characteristics (8.7mcd green, 5.6mcd red, 200° viewing angle). No circuit modifications are required.

Q: What is the difference between 5583001003F and 5583001023F? A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The primary distinction is the description notation: 5583001023F is designated as PVC-free. Both are ROHS3 compliant and active production parts.

Q: Are there any compatibility concerns with panel cutout dimensions? A: No. All three parts share the same 0.16" (4.06mm) round panel cutout specification, ensuring mechanical interchangeability in existing panel assemblies.

Q: What is the significance of the obsolete status for 5583001003? A: The obsolete designation indicates that 5583001003 is no longer in active production. For ongoing system support and new implementations, 5583001003F or 5583001023F should be specified to ensure long-term component availability.

Q: Do the substitute parts meet current regulatory requirements? A: Yes. Both 5583001003F and 5583001023F are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards.
