TE Connectivity AMP Connectors 558067-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 558067-1 is a Jack Modular Connector with 10p10c (RJ50) configuration, featuring 90° right-angle orientation and shielded design for Cat3 applications. This connector is designed for through-hole solder termination with a single port and single row configuration.

The 558067-1 carries an obsolete product status, which necessitates identification of active equivalent parts for new designs and ongoing production requirements. Locating suitable substitutes ensures design continuity and supply chain reliability for applications requiring this connector specification.

Substiute Parts

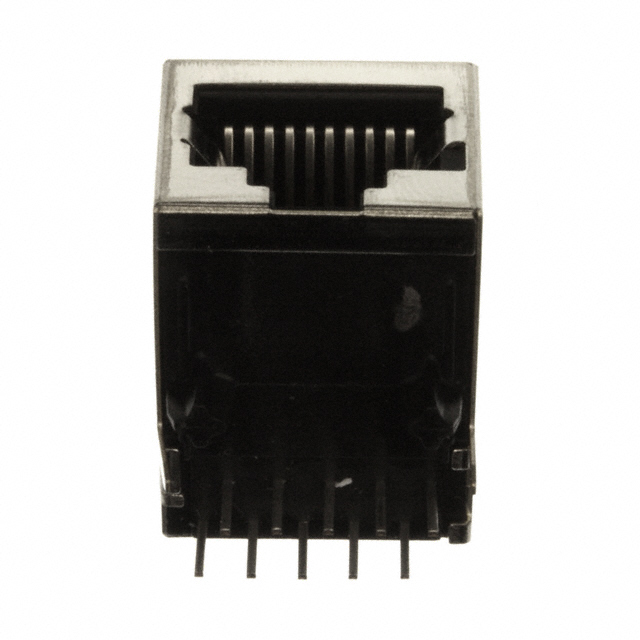

558067-1

TE Connectivity AMP ConnectorsIn Stock: 1073558067-1 Datasheet

Current PartRFQ

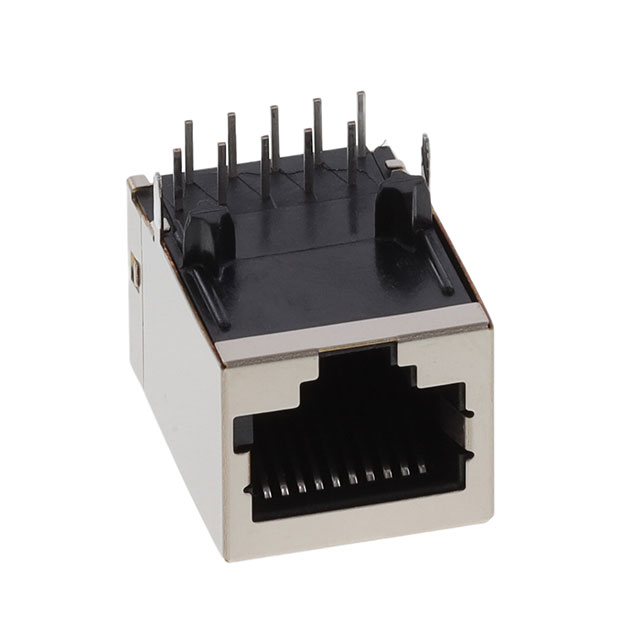

5558067-1

TE Connectivity AMP ConnectorsIn Stock: 64005558067-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 558067-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector type (Jack)
• Number of positions and contacts (10p10c/RJ50)
• Shielding configuration (Shielded)
• Cat3 rating

Mechanical Compatibility Parameters:

• Orientation (90° right-angle)
• Mounting type (Through hole)
• Termination method (Solder)
• Tab direction (Down)
• Board guide feature

Environmental & Material Parameters:

• Operating temperature range (-40°C ~ 85°C)
• Contact material (Phosphor Bronze)
• Contact finish (Gold at 50.0µin/1.27µm thickness)
• Housing material (PCT/Polyester)

The substitute part 5558067-1 maintains full equivalence across all specified parameters, with the primary distinction being product status (active versus obsolete) and packaging configuration (tray versus unspecified).

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 5558067-1

The 5558067-1 is the direct functional equivalent to the 558067-1 across all electrical and mechanical parameters. Selection of 5558067-1 is appropriate for the following conditions:

Product Status Consideration: The 558067-1 is classified as obsolete, while 5558067-1 maintains active product status. For new designs and ongoing production, 5558067-1 provides assured supply continuity and manufacturer support.

Compliance Consideration: The 5558067-1 is RoHS Compliant, whereas the 558067-1 is RoHS non-compliant. Applications subject to RoHS requirements must utilize 5558067-1. For legacy systems or applications without RoHS mandates, either part satisfies the electrical and mechanical specifications.

Packaging Consideration: The 5558067-1 is supplied in tray packaging, which differs from the unspecified packaging of the 558067-1. Packaging selection should align with assembly process requirements and inventory management protocols.

Inventory Availability: The 5558067-1 maintains higher inventory levels (6314 pieces) compared to the 558067-1 (968 pieces), supporting extended production schedules and supply chain resilience.

Frequently Asked Questions (FAQ)

Q: Can 5558067-1 be used as a direct replacement for 558067-1 in existing designs?

A: Yes. The 5558067-1 maintains identical electrical and mechanical specifications across all critical parameters including connector type, pin configuration (10p10c/RJ50), orientation (90° right-angle), shielding, termination method, and operating temperature range. No design modifications are required for substitution.

Q: What is the difference between 558067-1 and 5558067-1?

A: The primary differences are product status (obsolete versus active), RoHS compliance status (non-compliant versus compliant), and packaging format (unspecified versus tray). All functional and electrical parameters are identical.

Q: Does the RoHS compliance difference affect electrical performance?

A: No. RoHS compliance relates to material composition and environmental regulations, not electrical performance. Both parts deliver identical electrical characteristics and Cat3 ratings. RoHS compliance is a regulatory and supply chain consideration, not a performance specification.

Q: Is the housing material difference between the two parts significant?

A: The housing material specifications are equivalent. The 558067-1 lists "Polycyclohexylenedimethylene Terephthalate (PCT), Polyester" while 5558067-1 lists "Polycyclohexylenedimethylene Terephthalate (PCT)." Both utilize PCT as the primary housing material, which provides the same mechanical and thermal properties.

Q: What packaging format should be selected for production assembly?

A: The 5558067-1 is supplied in tray packaging. Tray packaging is standard for automated pick-and-place assembly operations. Packaging selection should align with your assembly equipment capabilities and inventory management requirements.

Q: Are there any temperature or environmental limitations that differ between these parts?

A: No. Both parts operate across the identical temperature range of -40°C to 85°C and maintain the same moisture sensitivity level (MSL 1 - Unlimited). Environmental performance is equivalent.

Q: Can 558067-1 be used in new designs?

A: The 558067-1 is classified as obsolete. For new designs, 5558067-1 is the appropriate selection to ensure long-term supply availability, manufacturer support, and compliance with current regulatory requirements.
