LED Panel Indicator 5580202003F Equivalent & Substitute Parts

Part Overview

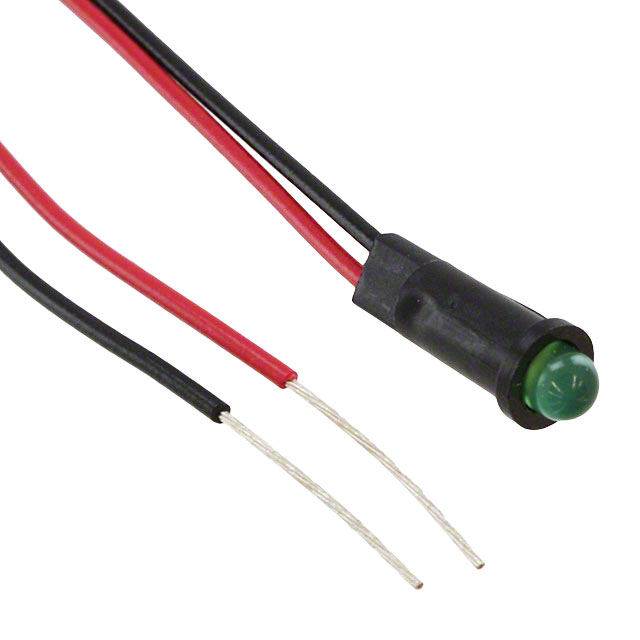

The Dialight 5580202003F is an active LED panel indicator designed for snap-in mounting applications. This green LED indicator operates at 5V DC with a 10mA current draw and features a 3mm T-1 lens with 60° viewing angle. The component is housed in a round panel cutout measuring 0.16" (4.06mm) and includes 6" wire leads for direct circuit integration. With 757 units in stock and ROHS3 compliance, this part remains actively supported. Equivalent substitute parts may be required due to inventory constraints, design revisions, or supply chain considerations.

Substiute Parts

5580202003F

DialightIn Stock: 8185580202003F Datasheet

Current PartRFQ

5580202023F

DialightIn Stock: 8305580202023F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5580202003F is determined by strict parameter matching across mechanical and electrical specifications. The following parameters must remain constant for direct substitution:

Mechanical compatibility parameters: Panel cutout shape (Round), panel cutout dimensions (0.16" / 4.06mm), lens size (3mm T-1), lens style (Round with Domed Top), and termination style (Wire Leads - 6" / 152.40mm).

Electrical compatibility parameters: Lamp color (Green), voltage rating (5V DC), wavelength peak (565nm), viewing angle (60°), and millicandela rating (19mcd).

Compliance parameters: Series designation (558), RoHS status (ROHS3 Compliant), MSL rating (1 - Unlimited), and REACH status (REACH Unaffected).

The substitute part 5580202023F meets all mechanical and electrical compatibility criteria. The current rating variance (12mA versus 10mA) represents a controlled parameter difference within the same product family and does not affect mechanical interchangeability or optical performance.

Parameter Comparison

Engineering Selection Recommendations

Both the 5580202003F and 5580202023F maintain active product status with full ROHS3 compliance and REACH unaffected designation. Selection between these parts is based on current rating requirements and circuit design specifications.

The 5580202003F operates at 10mA and is suitable for applications with lower power budgets or current-limited circuit designs. The 5580202023F operates at 12mA and is suitable for applications requiring higher brightness output or circuits designed for the increased current draw. Both parts share identical mechanical mounting characteristics, optical performance, and regulatory compliance status.

Current inventory levels support both options: 757 units of 5580202003F and 794 units of 5580202023F are available as new original stock. Selection should be based on circuit current capacity and design specifications rather than availability.

Frequently Asked Questions (FAQ)

Q: Can the 5580202023F be used as a direct replacement for the 5580202003F?

A: Yes. Both parts share identical mechanical mounting dimensions (0.16" round panel cutout), lens specifications (3mm T-1 round domed), wire lead length (6"), and optical characteristics (60° viewing angle, 19mcd, 565nm wavelength). The current rating difference (12mA versus 10mA) does not affect mechanical interchangeability. Circuit design must accommodate the higher current draw of the 5580202023F.

Q: What is the significance of the current rating difference between these parts?

A: The 5580202003F draws 10mA at 5V DC, while the 5580202023F draws 12mA at 5V DC. This 2mA difference reflects internal LED design variations within the same product family. Both parts deliver identical brightness (19mcd) and color characteristics (565nm green). Circuit current capacity must be verified before substitution.

Q: Are both parts suitable for the same panel cutout dimensions?

A: Yes. Both parts require a 0.16" (4.06mm) round panel cutout. Mechanical mounting is identical, and both use snap-in installation with 6" wire leads. No panel modifications are required for substitution.

Q: Do these parts have the same regulatory compliance?

A: Yes. Both the 5580202003F and 5580202023F are ROHS3 compliant, REACH unaffected, and carry MSL rating 1 (unlimited moisture sensitivity level). Regulatory requirements are satisfied by either part.

Q: What viewing angle do these LED indicators provide?

A: Both parts provide a 60° viewing angle, which defines the cone of light visibility from the panel-mounted position. This specification is identical between the main part and substitute.
