LED Panel Indicator 5580102007F Equivalent & Substitute Parts

Part Overview

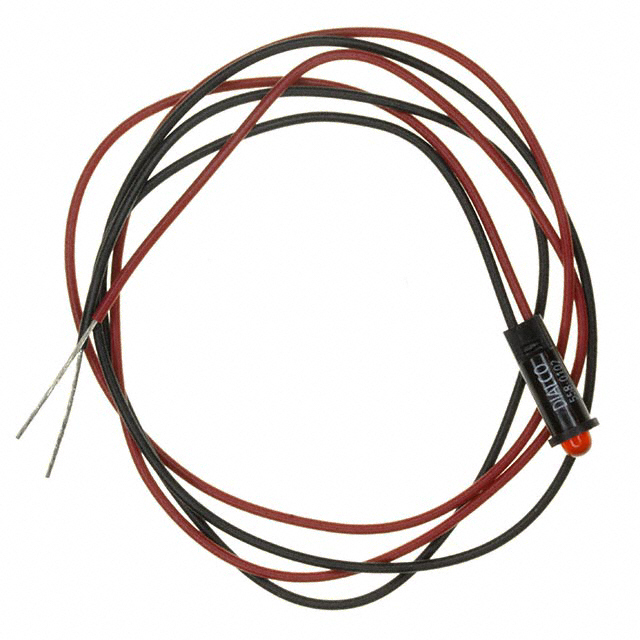

The Dialight 5580102007F is an LED panel indicator designed for snap-in panel mounting applications. This red diffused LED features a 3mm T-1 lens with a 60° viewing angle, operating at 5V with 12mA current consumption. The component is actively manufactured and maintains full RoHS3 compliance with REACH unaffected status. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design alternatives when the primary part becomes unavailable or when application requirements necessitate alternative electrical or mechanical specifications.

Substiute Parts

5580102007F

DialightIn Stock: 11775580102007F Datasheet

Current PartRFQ

5110F1

Visual Communications Company - VCCIn Stock: 20605110F1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5580102007F is determined by the following critical parameters:

• Panel cutout shape and dimensions (0.16" round opening)
• Lens size and style (3mm T-1 round with domed top)
• Color specification (red lamp and lens)
• Lens transparency (diffused)
• Wavelength compatibility (635nm peak)
• Termination method (wire leads)
• Compliance certifications (RoHS3, REACH unaffected)

The VCC 5110F1 qualifies as a substitute based on matching panel cutout dimensions, lens size, color, transparency, wavelength, and termination style. Electrical parameter differences (2V/30mA versus 5V/12mA) and lead length variations (4.4" versus 14") represent design trade-offs that must be evaluated within specific application contexts. Both parts maintain identical compliance status and active product availability.

Parameter Comparison

Engineering Selection Recommendations

Both the Dialight 5580102007F and VCC 5110F1 maintain active product status with full RoHS3 compliance and REACH unaffected certification. Selection between these parts depends on electrical system requirements and physical installation constraints.

The 5580102007F operates at 5V with 12mA consumption and provides 4mcd brightness with 14" wire leads. The 5110F1 operates at 2V with 30mA consumption, delivers 10mcd brightness, and features 4.4" wire leads. Both parts share identical mechanical compatibility for panel mounting through the 0.16" round cutout and maintain equivalent optical characteristics through matching 3mm T-1 diffused red lenses at 635nm wavelength.

Compliance certifications are equivalent across both parts, supporting deployment in regulated environments without additional qualification requirements.

Frequently Asked Questions (FAQ)

Q: Can the VCC 5110F1 directly replace the Dialight 5580102007F in existing designs?

A: Mechanical compatibility is confirmed through matching panel cutout dimensions (0.16" round) and lens specifications (3mm T-1 diffused red). Electrical compatibility requires verification of system voltage and current capacity. The 5110F1 operates at 2V/30mA versus the 5580102007F at 5V/12mA. Lead length differs (4.4" versus 14"), which may affect wiring routing in constrained installations.

Q: What are the key mechanical compatibility factors?

A: Panel cutout shape and dimensions (0.16" round opening), lens size (3mm T-1), lens style (round with domed top), and termination method (wire leads) determine mechanical interchangeability. Both parts satisfy these requirements identically.

Q: How do the brightness ratings compare?

A: The VCC 5110F1 provides 10mcd brightness compared to 4mcd for the Dialight 5580102007F. This 2.5x brightness difference may affect visibility in high-ambient-light applications or when specific luminous intensity is required by design specification.

Q: Are there compliance differences between these parts?

A: Both parts maintain identical compliance status: RoHS3 compliant and REACH unaffected. No additional certification or qualification is required when substituting between these parts from a regulatory standpoint.

Q: What lead length considerations apply to substitution?

A: The 5580102007F provides 14" leads while the 5110F1 provides 4.4" leads. Applications requiring extended lead length for remote panel mounting or complex wiring harnesses may necessitate lead extension or alternative routing when using the 5110F1.
