TE Connectivity 5-569215-2 Modular Connector Equivalent & Substitute Parts

Part Overview

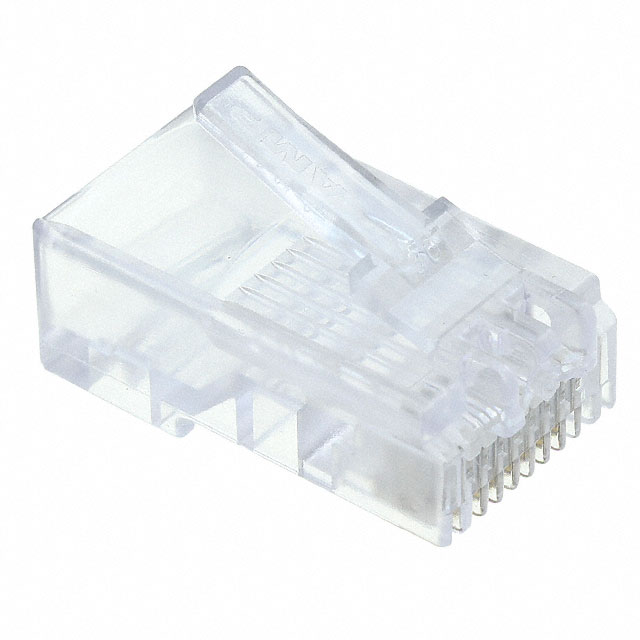

The TE Connectivity 5-569215-2 is an 8P8C (RJ45/Ethernet) modular plug connector with unshielded construction, designed for round cable with solid wires using IDC (Insulation Displacement Contact) termination. This connector is rated for Cat3 applications and features gold-plated phosphor bronze contacts with polycarbonate housing.

The 5-569215-2 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or field replacement requirements.

Substiute Parts

5-569215-2

TE Connectivity AMP ConnectorsIn Stock: 10815-569215-2 Datasheet

Current PartRFQ

5-406347-3

TE Connectivity AMP ConnectorsIn Stock: 10955-406347-3 Datasheet

DirectRFQ

940-SP-3088R-A133

Stewart ConnectorIn Stock: 91743940-SP-3088R-A133 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5-569215-2 is determined by the following critical parameters:

Primary Substitution Criteria:

• Connector type (Plug)
• Number of positions/contacts (8P8C / RJ45 / Ethernet)
• Termination method (IDC)
• Shielding configuration (Unshielded)
• Cable type compatibility (Round Cable)
• Contact material and finish (Phosphor Bronze, Gold plated)
• Housing material (Polycarbonate)

Acceptable Variations:

• Wire gauge range (24-26 AWG for main part; 26-28 AWG or unspecified for substitutes)
• Length tolerance (±0.030" acceptable)
• Color (functional equivalence regardless of color)
• Manufacturer (different OEM acceptable if all electrical and mechanical parameters align)

Non-Substitutable Differences:

• Shielding configuration change (unshielded to shielded or vice versa) represents a design change and is not a direct substitute
• Connector type change (plug to jack or other configuration)
• Termination method change (IDC to solder or other method)

Parameter Comparison

Engineering Selection Recommendations

Direct Substitute: 940-SP-3088R-A133 (Stewart Connector)

The Stewart Connector 940-SP-3088R-A133 is the primary equivalent substitute for the obsolete TE Connectivity 5-569215-2. This part maintains functional and mechanical compatibility across all critical parameters:

• Identical connector type, contact count, and IDC termination
• Matching unshielded configuration
• Identical physical length (0.885" / 22.48mm)
• Identical contact material and finish specifications
• Compatible housing material (Polycarbonate)
• Supports both solid and stranded wire, providing broader cable compatibility than the original part

The 940-SP-3088R-A133 is currently in active production with substantial inventory availability (91,666 units). This part carries ROHS3 compliance and REACH Unaffected status, meeting modern regulatory requirements. The part is rated for 1.5 A at 150V, providing electrical performance suitable for Cat3 Ethernet applications.

Reference Part (Not a Direct Substitute): 5-406347-3 (TE Connectivity)

The TE Connectivity 5-406347-3 is an active production alternative within the same manufacturer family. However, this part features shielded construction, which represents a design change from the unshielded 5-569215-2. The shielded configuration is not a direct substitute and should only be selected when EMI shielding is a design requirement. This part also specifies a narrower wire gauge range (26-28 AWG) and is 0.030" longer (0.915" vs. 0.885"), which may affect mechanical fit in existing applications.

Frequently Asked Questions (FAQ)

Q: Can the 940-SP-3088R-A133 directly replace the 5-569215-2 in existing designs?

A: Yes. The 940-SP-3088R-A133 maintains identical mechanical dimensions (0.885" length), connector configuration (8P8C plug), termination method (IDC), and shielding (unshielded). Contact material, finish, and housing material are identical. The part is mechanically and electrically compatible for direct substitution.

Q: What is the difference between the unshielded 5-569215-2 and the shielded 5-406347-3?

A: The 5-406347-3 includes copper alloy shielding and is 0.030" longer (0.915" vs. 0.885"). Shielding provides EMI protection but changes the connector's physical profile and electrical characteristics. The 5-406347-3 is not a direct substitute unless EMI shielding is required by the application.

Q: Does the 940-SP-3088R-A133 support both solid and stranded wire?

A: Yes. The 940-SP-3088R-A133 is specified for round cable with solid or stranded wires, providing broader cable compatibility than the original 5-569215-2, which specifies solid wires only.

Q: Are there wire gauge compatibility concerns with the 940-SP-3088R-A133?

A: The 5-569215-2 specifies 24-26 AWG wire gauge. The 940-SP-3088R-A133 does not specify wire gauge in the provided data. However, both parts use identical IDC termination and contact specifications, and the 940-SP-3088R-A133 is documented to accept both solid and stranded wires, indicating compatibility with standard Ethernet cable gauges.

Q: What is the inventory status for these substitute parts?

A: The 940-SP-3088R-A133 has 91,666 units in stock, providing substantial availability. The 5-569215-2 (obsolete) has 1,071 units remaining. The 5-406347-3 (active) has 1,035 units in stock.

Q: Are there regulatory compliance differences between these parts?

A: The 940-SP-3088R-A133 carries ROHS3 compliance and REACH Unaffected status. The 5-569215-2 and 5-406347-3 show "Not applicable" and "Vendor Undefined" status respectively. For applications requiring modern regulatory compliance, the 940-SP-3088R-A133 is the preferred choice.

Q: What electrical ratings apply to the 940-SP-3088R-A133?

A: The 940-SP-3088R-A133 is rated for 1.5 A at 150V. The original 5-569215-2 does not specify voltage or current ratings in the provided data. Both parts are suitable for Cat3 Ethernet applications.
