TE Connectivity AMP Connectors 555139-2 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

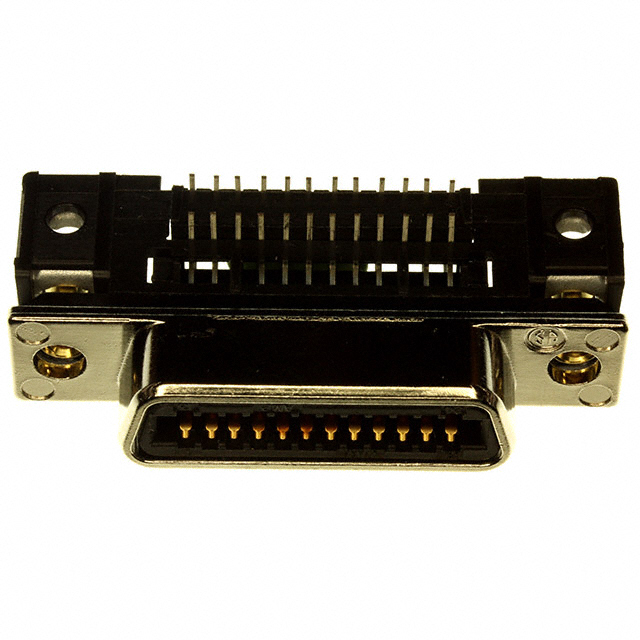

The TE Connectivity AMP Connectors 555139-2 is a 24-position D-Sub receptacle connector featuring right-angle through-hole solder termination. This connector is part of the CHAMP .085 series and incorporates shielded outer shroud contacts with gold-plated contact finish. The part is classified as obsolete, necessitating identification of active equivalent alternatives to ensure continued availability and supply chain continuity for new designs and production requirements.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Number of Positions	24
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Termination Method	Solder
Connector Style	Outer Shroud Contacts
Features	Shielded
Contact Finish	Gold
Flange Feature	Housing/Shell (6-32)
Series	CHAMP .085

Substitute Part Grouping Explanation

Substitution of the 555139-2 is determined by strict equivalence across the following critical parameters: connector type (receptacle), position count (24), row configuration (2), mounting orientation (through hole, right angle), termination method (solder), connector style (outer shroud contacts), shielding requirement, contact finish material (gold), and flange specification (housing/shell 6-32). The substitute part 5555139-2 maintains identical electrical and mechanical specifications across all these parameters, differing only in product status (active versus obsolete), packaging format (tube), and regulatory compliance status (RoHS compliant and REACH affected versus non-compliant).

Parameter Comparison

Parameter	555139-2 (Main Part)	5555139-2 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Category	D-Sub, D-Shaped Connectors	D-Sub, D-Shaped Connectors	Identical
Series	CHAMP .085	CHAMP .085	Identical
Connector Type	Receptacle	Receptacle	Identical
Number of Positions	24	24	Identical
Number of Rows	2	2	Identical
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Identical
Termination	Solder	Solder	Identical
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts	Identical
Features	Shielded	Shielded	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Flange Feature	Housing/Shell (6-32)	Housing/Shell (6-32)	Identical
Product Status	Obsolete	Active	Different
Packaging	Not specified	Tube	Different
RoHS Status	RoHS non-compliant	RoHS Compliant	Different
REACH Status	Vendor Undefined	REACH Affected	Different
ECCN	EAR99	EAR99	Identical
HTSUS	8536.69.4040	8536.69.4040	Identical

Engineering Selection Recommendations

The 5555139-2 serves as a direct functional equivalent to the obsolete 555139-2, providing identical electrical and mechanical performance for D-Sub receptacle connector applications. The substitute part is currently in active production status, ensuring long-term availability and supply chain reliability. The 5555139-2 achieves RoHS compliance and REACH affected status, meeting modern regulatory requirements for electronic component procurement. Both parts share identical ECCN and HTSUS classifications, maintaining consistent export and tariff treatment. The transition from the obsolete 555139-2 to the active 5555139-2 is supported by complete parameter equivalence across all connector specifications, including position count, mounting configuration, termination method, and contact characteristics.

Frequently Asked Questions (FAQ)

Question	Answer
Can the 5555139-2 directly replace the 555139-2 in existing designs?	Yes. The 5555139-2 maintains identical electrical and mechanical specifications across all critical parameters including connector type, position count, mounting orientation, termination method, and contact finish. Direct substitution is supported without design modification.
What is the primary difference between these two part numbers?	The 555139-2 is obsolete with undefined REACH status and RoHS non-compliance. The 5555139-2 is an active production part with RoHS compliance and REACH affected status. Packaging differs, with the 5555139-2 supplied in tube format.
Are there any electrical performance differences between the parts?	No. Both parts feature identical 24-position receptacle configuration, gold contact finish at 30.0µin thickness, shielded outer shroud design, and 6-32 housing/shell flange specification.
Does the tube packaging of the 5555139-2 affect compatibility?	Packaging format does not affect electrical or mechanical compatibility. Tube packaging is a supply and handling consideration only and does not impact connector performance or board-level integration.
What regulatory advantages does the 5555139-2 provide?	The 5555139-2 achieves RoHS compliance and REACH affected status, meeting current environmental and chemical safety regulations. The obsolete 555139-2 carries undefined REACH status and RoHS non-compliance, creating regulatory risk for new applications.
Are both parts classified under the same export control and tariff codes?	Yes. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, ensuring consistent export control and tariff treatment.
What is the inventory status of each part?	The 555139-2 has 958 pieces in stock as new original inventory. The 5555139-2 has 1578 pieces in stock as new original inventory. The 5555139-2 represents the active production alternative with higher availability.
