Part Overview

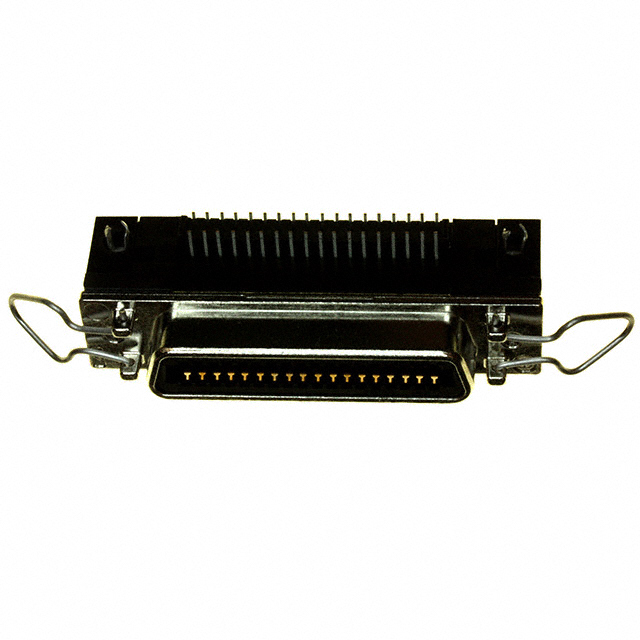

The TE Connectivity AMP Connectors 555119-1 is a 36-position D-Sub receptacle connector featuring right-angle panel mount configuration with through-hole solder termination. This connector is part of the CHAMP .085 series and incorporates outer shroud contacts with bail lock, board lock, and shielded features. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure long-term component availability for new production and field service applications.

Substiute Parts

555119-1

TE Connectivity AMP ConnectorsIn Stock: 973555119-1 Datasheet

Current PartRFQ

5555119-1

TE Connectivity AMP ConnectorsIn Stock: 22635555119-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 555119-1 with an active equivalent is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5555119-1 maintains identical specifications across the following critical parameters:

• Connector type (Receptacle)
• Position count (36 positions in 2 rows)
• Mounting configuration (Panel Mount, Through Hole, Right Angle)
• Termination method (Solder)
• Connector style (Outer Shroud Contacts)
• Series designation (CHAMP .085)
• Feature set (Bail Lock, Board Lock, Shielded)
• Contact finish and thickness (Gold, 30.0µin)
• Flange specification (Housing/Shell 4-40)

The primary distinction between these parts is product status and compliance certification. The substitute part 5555119-1 is active and RoHS3 compliant, whereas the original 555119-1 is obsolete and RoHS non-compliant. Packaging differs between the two parts, with the substitute supplied in tray format.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5555119-1 is the direct functional equivalent of the obsolete 555119-1. All electrical and mechanical parameters are identical, ensuring pin-for-pin and form-factor compatibility. The substitute part is currently active in production and carries RoHS3 compliance certification, addressing regulatory requirements for new designs and manufacturing processes.

Selection of the substitute part 5555119-1 is appropriate for:

• New product designs requiring 36-position D-Sub receptacle connectors with right-angle panel mount solder termination
• Replacement of obsolete inventory in existing designs
• Applications requiring RoHS3 compliance
• Designs utilizing the CHAMP .085 series connector platform

The substitute part maintains identical contact finish specifications, flange configuration, and feature set, ensuring mechanical and electrical interchangeability with the original part. Packaging format differs, with the substitute supplied in tray configuration rather than the original unspecified packaging.

Frequently Asked Questions (FAQ)

Q: Can 5555119-1 be used as a direct replacement for 555119-1 in existing designs?

A: Yes. The 5555119-1 is electrically and mechanically identical to 555119-1 across all specified parameters, including connector type, position count, mounting configuration, termination method, and feature set. The parts are pin-for-pin and form-factor compatible.

Q: What is the primary difference between 555119-1 and 5555119-1?

A: The primary differences are product status and compliance certification. The 555119-1 is obsolete and RoHS non-compliant, while the 5555119-1 is active and RoHS3 compliant. Packaging also differs, with the substitute supplied in tray format.

Q: Does the packaging difference between the two parts affect compatibility?

A: No. Packaging format does not affect electrical or mechanical compatibility. The tray packaging of the 5555119-1 is a logistics consideration only and does not impact connector performance or interchangeability.

Q: Are there any electrical performance differences between these parts?

A: No. Both parts share identical electrical specifications, including contact finish (gold), contact finish thickness (30.0µin), and all functional features (bail lock, board lock, shielded).

Q: Is the 5555119-1 suitable for new product designs?

A: Yes. The 5555119-1 is an active part with current manufacturing support and RoHS3 compliance, making it suitable for new product designs requiring 36-position D-Sub receptacle connectors with right-angle panel mount solder termination.

Q: What does RoHS3 compliance mean for this connector?

A: RoHS3 compliance indicates the part meets Restriction of Hazardous Substances Directive requirements, restricting the use of specific hazardous materials in electrical and electronic equipment. This certification is required for many regulatory jurisdictions and end-market applications.

Q: Are both parts from the same manufacturer?

A: Yes. Both 555119-1 and 5555119-1 are manufactured by TE Connectivity AMP Connectors and are part of the CHAMP .085 series.
