Amphenol ICC 55510-032 32-Position 0.079" Minitek® 2.00mm Receptacle Connector

Part Overview

The Amphenol ICC 55510-032 is a 32-position receptacle connector in the Minitek® 2.00mm series, designed for board-to-board applications with surface mount termination. This part is classified as obsolete, which necessitates identification of active equivalent and substitute components for new designs and ongoing production support. The connector features gold-plated mating contacts, push-pull fastening, and operates across the industrial temperature range of -55°C to 125°C.

Key Parameters

Parameter	Value
Manufacturer Part Number	55510-032
Manufacturer	Amphenol ICC (FCI)
Series	Minitek® 2.00mm
Connector Type	Receptacle
Number of Positions	32
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Operating Temperature	-55°C ~ 125°C
Current Rating	2A
Voltage Rating	200V
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the 55510-032 is determined by strict alignment of the following electrical and mechanical parameters:

Connector type: Receptacle with female socket contacts
Position count: 32 positions
Pitch and row spacing: 0.079" (2.00mm) mating pitch with 2-row configuration
Mounting: Surface mount with solder termination
Fastening: Push-pull mechanism
Mating contact finish: Gold plating
Operating temperature range: Minimum -55°C to 125°C capability
Current and voltage ratings: Minimum 2A at 200V

Substitute parts are grouped into two categories:

Direct Amphenol ICC Successor: 55510-032LF maintains identical electrical and mechanical specifications with updated RoHS compliance and active product status.

Cross-Manufacturer Equivalents: Hirose Electric A3-32DA-2SV(71) and A3A-32DA-2SV(71), and Samtec MMS-116 series variants meet the core substitution criteria of 32-position, 2.00mm pitch, surface mount receptacle configuration with push-pull fastening and gold mating contacts.

Parameter Comparison

Parameter	55510-032	55510-032LF	A3-32DA-2SV(71)	A3A-32DA-2SV(71)	MMS-116-02-F-DV	MMS-116-02-L-DV-10
Manufacturer	Amphenol ICC	Amphenol ICC	Hirose Electric	Hirose Electric	Samtec Inc.	Samtec Inc.
Number of Positions	32	32	32	32	32	32
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	2A	2A	1A	1A	3.9A per Contact	3.9A per Contact
Voltage Rating	200V	200V	200VAC	200VAC	—	—
Product Status	Obsolete	Active	Active	Active	Active	Active
RoHS Status	Non-compliant	Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

Primary Recommendation: 55510-032LF

The 55510-032LF is the direct successor to the 55510-032, manufactured by Amphenol ICC. It maintains identical electrical and mechanical specifications while achieving RoHS compliance and active product status. This part is the preferred choice for designs requiring minimal qualification effort and maximum compatibility with existing tooling and assembly processes.

Secondary Recommendation: Hirose Electric A3-32DA-2SV(71) or A3A-32DA-2SV(71)

These Hirose connectors provide cross-manufacturer equivalence with identical 32-position, 2.00mm pitch, surface mount configuration. Both parts are ROHS3 compliant and active. The A3A-32DA-2SV(71) variant includes a board guide feature. Note that these parts operate at a reduced temperature maximum of -55°C to 85°C and carry a 1A current rating per contact, which may require design review for applications demanding the full 2A rating of the original part.

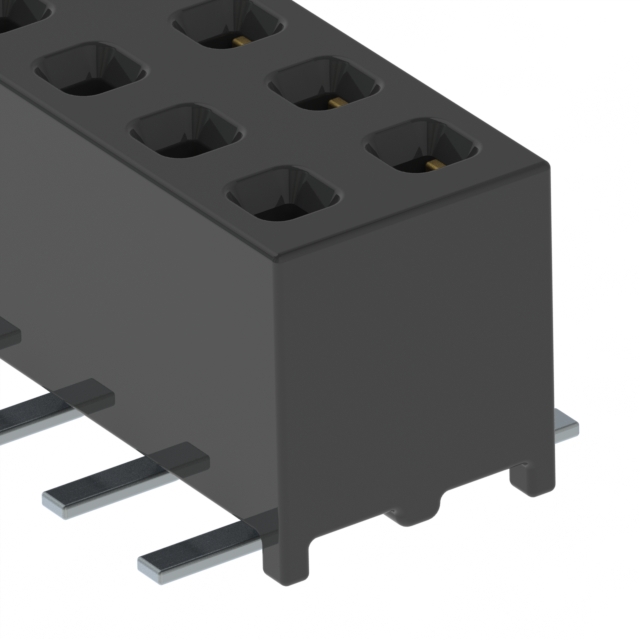

Tertiary Recommendation: Samtec MMS-116 Series

The Samtec MMS-116-02-F-DV and MMS-116-02-L-DV variants (10, 11, 12, 14, 15, 16) meet the core substitution criteria with 32-position, 2.00mm pitch, surface mount receptacle configuration. These parts maintain the full -55°C to 125°C operating range and offer 3.9A per contact current capacity. The MMS-116-02-L-DV variants are loaded with 31 of 32 positions. All Samtec options are ROHS3 compliant and active.

Frequently Asked Questions (FAQ)

Q: Can the 55510-032 be directly replaced with the 55510-032LF?

A: Yes. The 55510-032LF is the direct Amphenol ICC successor with identical electrical and mechanical specifications. The primary difference is RoHS compliance status and active product availability. No design changes are required.

Q: What are the key differences between Amphenol ICC and Hirose Electric substitutes?

A: The Hirose A3 series maintains the 32-position, 2.00mm pitch, surface mount, push-pull configuration. However, the operating temperature range is limited to -55°C to 85°C (versus -55°C to 125°C for the original), and the current rating is 1A per contact (versus 2A for the original). Applications operating above 85°C or requiring 2A per contact must use Amphenol ICC or Samtec alternatives.

Q: What distinguishes the Samtec MMS-116-02-F-DV from the MMS-116-02-L-DV variants?

A: The MMS-116-02-F-DV is fully loaded with all 32 positions. The MMS-116-02-L-DV variants (10, 11, 12, 14, 15, 16) are loaded with 31 of 32 positions. Selection depends on application requirements for position count and specific contact loading configuration.

Q: Are there mechanical compatibility concerns when substituting cross-manufacturer parts?

A: All listed substitutes share identical 2.00mm pitch, 2-row configuration, and surface mount termination. However, insulation height and contact geometry may vary slightly between manufacturers. Physical fit verification on the mating connector is recommended before production implementation.

Q: Which substitute offers the best current capacity?

A: The Samtec MMS-116 series provides 3.9A per contact, exceeding the original 2A specification. This offers design margin for applications with current growth potential.

Q: Are all substitutes RoHS compliant?

A: The original 55510-032 is RoHS non-compliant. All listed substitutes (55510-032LF, Hirose A3 series, and Samtec MMS-116 series) are RoHS3 compliant, meeting current regulatory requirements.
