TE Connectivity AMP Connectors 554501-2 D-Sub Receptacle Connector Equivalent & Substitute Parts

Part Overview

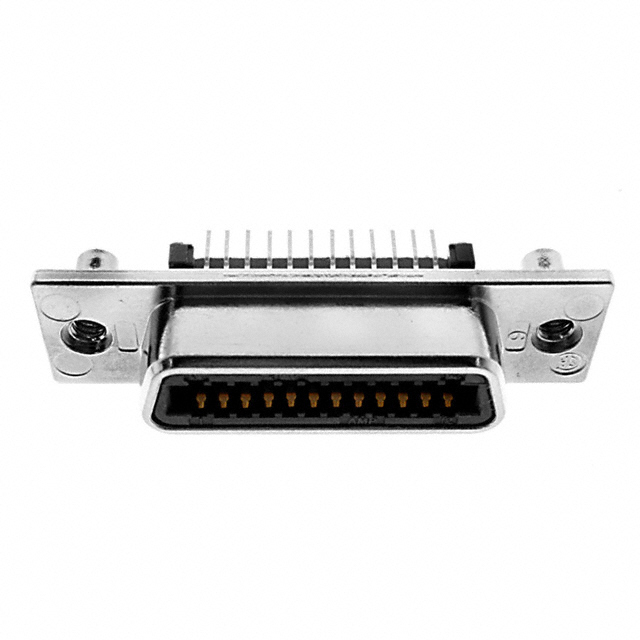

The TE Connectivity AMP Connectors 554501-2 is a 24-position D-Sub receptacle connector designed for panel mount, through-hole solder termination applications. This connector features an outer shroud contact style with shielded construction and gold-plated contacts. The part is classified as obsolete, which necessitates identification of functionally equivalent alternatives for ongoing procurement and system maintenance. Direct substitutes maintain identical electrical and mechanical specifications while offering improved product status and compliance certifications.

Substiute Parts

554501-2

TE Connectivity AMP ConnectorsIn Stock: 742554501-2 Datasheet

Current PartRFQ

5554501-2

TE Connectivity AMP ConnectorsIn Stock: 10865554501-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 554501-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5554501-2 qualifies as a direct equivalent based on the following matching criteria:

Matching Parameters:

• Connector type: Receptacle
• Position count: 24 positions in 2 rows
• Mounting configuration: Panel mount, through-hole solder
• Connector style: Outer shroud contacts
• Series designation: CHAMP .085
• Shielding: Present
• Contact finish: Gold at 30.0µin (0.76µm) thickness
• Flange specification: Board side with 6-32 mounting

The substitute part maintains complete functional and physical compatibility with the original part while offering enhanced product status and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The 5554501-2 is the direct substitute for the obsolete 554501-2. Selection of the substitute part is based on the following engineering considerations:

Product Status: The original 554501-2 carries an obsolete designation, limiting long-term availability and support. The substitute 5554501-2 maintains active product status, ensuring continued procurement capability and manufacturer support.

Regulatory Compliance: The substitute part is RoHS compliant, whereas the original part is RoHS non-compliant. This compliance improvement aligns with current regulatory requirements for electronic components in many jurisdictions.

Functional Equivalence: All electrical and mechanical parameters are identical between the original and substitute parts. The connector maintains the same 24-position configuration, shielded outer shroud design, gold contact finish, and through-hole solder termination.

Inventory Availability: The substitute part is available in higher quantities (995 pieces) compared to the original part (716 pieces), supporting production continuity.

Packaging Consideration: The substitute part is supplied in tray packaging, which may differ from the original bulk packaging. This packaging change does not affect electrical or mechanical compatibility.

Frequently Asked Questions (FAQ)

Q: Are the 554501-2 and 5554501-2 electrically identical?

A: Yes. Both parts are 24-position D-Sub receptacle connectors with identical electrical specifications, including shielded construction, gold contact finish at 30.0µin thickness, and outer shroud contact style.

Q: What is the primary reason to substitute the 554501-2 with the 5554501-2?

A: The original 554501-2 is classified as obsolete. The 5554501-2 is an active product that provides the same functionality with improved product status and RoHS compliance.

Q: Will the 5554501-2 fit in existing PCB designs for the 554501-2?

A: Yes. Both connectors share identical mounting specifications: panel mount, through-hole solder termination, board-side flange with 6-32 mounting holes, and CHAMP .085 series dimensions.

Q: Does the packaging difference affect compatibility?

A: No. The substitute part is supplied in tray packaging instead of bulk packaging. This is a logistics consideration only and does not affect the connector's electrical or mechanical performance.

Q: Is the 5554501-2 RoHS compliant?

A: Yes. The 5554501-2 is RoHS compliant, whereas the original 554501-2 is RoHS non-compliant. This represents an improvement in regulatory compliance.

Q: Are there any differences in moisture sensitivity between the two parts?

A: No. Both parts have identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), indicating no moisture sensitivity restrictions.

Q: Can the 5554501-2 be used as a direct replacement in production?

A: Yes. The 5554501-2 is a direct functional equivalent with identical connector specifications, making it suitable for direct replacement in manufacturing and assembly processes.
