TE Connectivity AMP Connectors 553811-2 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 553811-2 is a 24-position D-Sub receptacle connector designed for panel mount, through-hole, right-angle solder termination applications. This connector features an outer shroud contact design with shielded construction and gold-plated contacts. The part is classified as obsolete, which necessitates identification of active equivalent alternatives to ensure continued availability and supply chain continuity for new designs and legacy system maintenance.

Substiute Parts

553811-2

TE Connectivity AMP ConnectorsIn Stock: 1084553811-2 Datasheet

Current PartRFQ

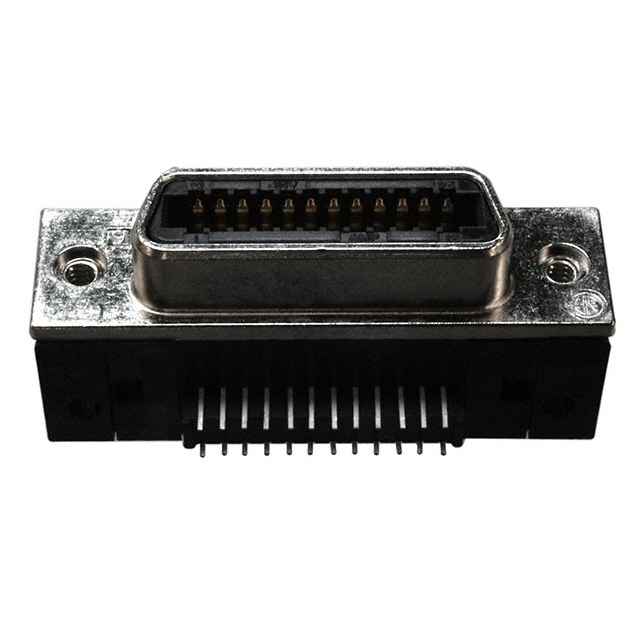

5553811-2

TE Connectivity AMP ConnectorsIn Stock: 13005553811-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 553811-2 is determined by strict equivalence across all core electrical and mechanical parameters. The substitute part 5553811-2 maintains identical specifications for connector type, position count, row configuration, mounting methodology, termination approach, connector styling, shielding characteristics, contact material and finish, and flange specifications. Both parts belong to the CHAMP .085 series, ensuring mechanical and electrical compatibility.

The primary differentiators between the main part and its substitute are product status (obsolete versus active), packaging format (unspecified versus tray), RoHS compliance status (non-compliant versus ROHS3 compliant), and HTSUS classification. These differences do not affect functional interchangeability in applications where the connector specifications are met.

Parameter Comparison

Engineering Selection Recommendations

The 5553811-2 serves as the direct functional equivalent to the obsolete 553811-2. Selection of the substitute part is appropriate for all applications requiring a 24-position D-Sub receptacle connector with panel mount, through-hole, right-angle solder termination in the CHAMP .085 series.

The substitute part offers the advantage of active product status, ensuring long-term availability and supply chain reliability. Additionally, the 5553811-2 achieves ROHS3 compliance, making it suitable for applications subject to RoHS regulatory requirements. The main part's RoHS non-compliant status may restrict its use in regulated markets and new product designs.

Both parts maintain identical electrical and mechanical specifications, including connector positioning, contact finish, shielding characteristics, and flange configuration. The difference in packaging format (tray for the substitute) does not affect functional performance and represents a standard industry packaging variation.

Frequently Asked Questions (FAQ)

Q: Are the 553811-2 and 5553811-2 electrically and mechanically interchangeable?

A: Yes. Both connectors maintain identical specifications for all core parameters including connector type, position count, row configuration, mounting methodology, termination approach, contact finish, and flange specifications. They are fully interchangeable in applications meeting these specifications.

Q: What is the primary reason to transition from 553811-2 to 5553811-2?

A: The 553811-2 is classified as obsolete, while the 5553811-2 is an active product. Transitioning to the active equivalent ensures continued supply chain availability and long-term component sourcing reliability.

Q: Does the RoHS compliance difference affect compatibility?

A: RoHS compliance status does not affect electrical or mechanical compatibility. However, the 5553811-2's ROHS3 compliance makes it suitable for applications and markets with RoHS regulatory requirements, whereas the non-compliant 553811-2 may face restrictions in regulated environments.

Q: What is the significance of the packaging difference between the two parts?

A: The 553811-2 has unspecified packaging, while the 5553811-2 is supplied in tray packaging. Packaging format does not affect connector functionality or performance. Tray packaging is a standard industry format that facilitates handling and storage.

Q: Can the 5553811-2 be used as a direct replacement in existing designs using 553811-2?

A: Yes. The 5553811-2 is a direct substitute with identical electrical and mechanical characteristics. No design modifications are required for component substitution.

Q: Are there any differences in contact finish specifications between the two parts?

A: No. Both parts feature gold contact finish with identical thickness of 30.0µin (0.76µm), ensuring equivalent electrical performance and reliability.

Q: What is the Moisture Sensitivity Level (MSL) for both parts?

A: Both the 553811-2 and 5553811-2 have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
