TE Connectivity AMP Connectors 5532448-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5532448-5 is a 160-position high-density backplane connector header with male pins designed for through-hole PCB mounting. This component features press-fit termination, gold-plated contacts, and a 0.100" (2.54mm) pitch configuration across 4 rows. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure procurement availability for new production runs and field replacements.

Substiute Parts

5532448-5

TE Connectivity AMP ConnectorsIn Stock: 10175532448-5 Datasheet

Current PartRFQ

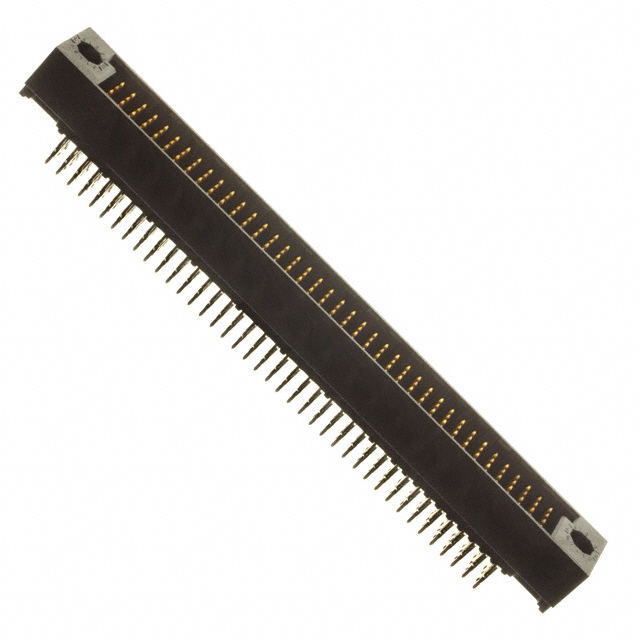

532448-5

TE Connectivity AMP ConnectorsIn Stock: 1304532448-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 5532448-5 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 532448-5 maintains identical specifications for connector type, position count, pitch, row configuration, mounting method, termination style, contact material and finish, color, operating temperature range, and flammability rating. These parameters define the physical and electrical compatibility required for direct substitution in existing PCB designs and mating connector applications.

The primary distinction between the main part and its substitute is product status (obsolete versus active) and regulatory compliance posture. The substitute part 532448-5 is currently in active production status, ensuring ongoing availability and supply chain continuity.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 532448-5 provides complete functional and mechanical equivalence to the obsolete 5532448-5 across all critical connector parameters. Both parts share identical electrical characteristics, physical dimensions, contact specifications, and environmental ratings required for direct PCB design compatibility.

Selection of 532448-5 is appropriate for applications requiring active product status and ongoing supply chain availability. The substitute part is currently in production with documented inventory levels supporting procurement requirements.

Regulatory compliance considerations differ between the two parts. The main part 5532448-5 carries ROHS3 compliance certification, while the substitute part 532448-5 is RoHS non-compliant. Applications subject to RoHS regulatory requirements must account for this distinction. The substitute part carries REACH Affected status, whereas the main part status is vendor-undefined for REACH compliance.

Packaging configuration differs, with the substitute part supplied in tube packaging. Design and procurement workflows must accommodate this packaging specification for assembly and handling processes.

Frequently Asked Questions (FAQ)

Q: Can 532448-5 be used as a direct replacement for 5532448-5 in existing PCB designs?

A: Yes. The substitute part 532448-5 maintains identical connector type, position count, pitch, row configuration, mounting method, termination style, contact material and finish, color, and operating temperature range. Physical and electrical compatibility with existing mating connectors and PCB layouts is preserved.

Q: What is the primary reason for substitution?

A: The main part 5532448-5 is classified as obsolete. The substitute part 532448-5 is in active production status, ensuring continued availability for procurement and supply chain continuity.

Q: Are there differences in regulatory compliance between these parts?

A: Yes. The main part 5532448-5 is ROHS3 compliant, while the substitute part 532448-5 is RoHS non-compliant. The substitute part carries REACH Affected status. Applications subject to RoHS or REACH regulatory requirements must evaluate compliance implications before substitution.

Q: Does packaging differ between these parts?

A: Yes. The main part packaging is not specified in available documentation. The substitute part 532448-5 is supplied in tube packaging. Assembly and handling processes must accommodate tube packaging specifications.

Q: Are the contact specifications identical?

A: Yes. Both parts feature gold-plated contacts with 30.0µin (0.76µm) finish thickness, identical contact layout, and mating guide features.

Q: What is the operating temperature range for both parts?

A: Both parts operate across the identical temperature range of -65°C to 125°C.

Q: Are both parts UL94 V-0 rated?

A: Yes. Both parts carry UL94 V-0 material flammability rating.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
