Dialight 5530220F LED Circuit Board Indicator - Equivalent & Substitute Parts

Part Overview

The Dialight 5530220F is a dual-level LED circuit board indicator featuring a 3mm, T-1 form factor with integrated green and blank LED elements. This through-hole, right-angle mounted component is designed for applications requiring visual status indication with diffused, tinted optics. The part is currently active in production with full RoHS3 compliance and unlimited moisture sensitivity rating, making it suitable for standard industrial and commercial applications where component availability or inventory management necessitates alternative sourcing options.

Substiute Parts

5530220F

DialightIn Stock: 10815530220F Datasheet

Current PartRFQ

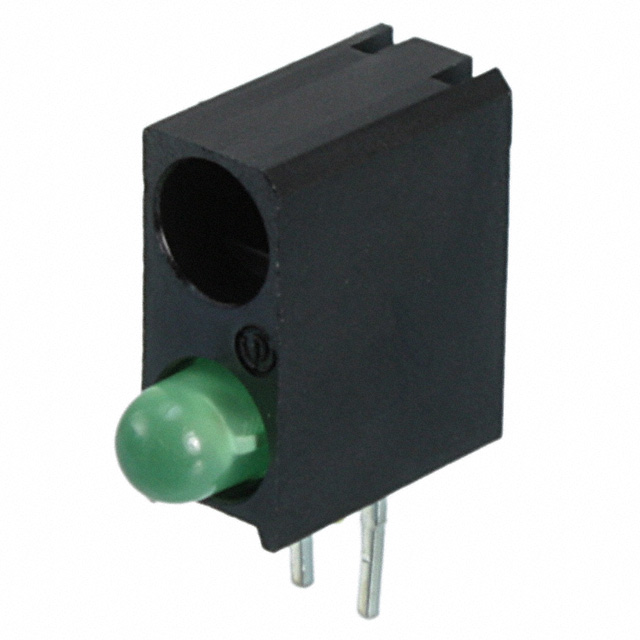

5530202F

DialightIn Stock: 12205530202F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Dialight 5530202F qualifies as a direct substitute for the 5530220F based on identical electrical and mechanical parameters. Substitution compatibility is determined by the following critical parameters:

• Configuration: 2 High (dual-level indicator structure)
• Color specification: Green (x 1), Blank (x 1)
• Wavelength - Peak: 565nm (green spectral output)
• Current Rating: 2mA (operating current)
• Voltage Rating: 1.9V (forward voltage)
• Millicandela Rating: 1.6mcd (luminous intensity)
• Viewing Angle: 60° (optical field of view)
• Lens Type: Diffused, Tinted (optical characteristics)
• Lens Style: Round with Domed Top (physical form)
• Lens Size: 3mm, T-1 (package envelope)
• Mounting Type: Through Hole, Right Angle (PCB integration method)

Both parts belong to the Dialight 553 series and maintain identical compliance certifications, ensuring functional and regulatory interchangeability.

Parameter Comparison

Engineering Selection Recommendations

The Dialight 5530202F provides full functional and regulatory equivalence to the 5530220F. Both parts maintain active product status and carry identical RoHS3 and REACH compliance certifications. Selection between these parts may be based on inventory availability, lead time, or procurement requirements, as all electrical, optical, and mechanical specifications are identical. The 5530202F currently maintains higher inventory levels (1199 pcs vs. 986 pcs), which may influence sourcing decisions for high-volume applications.

Frequently Asked Questions (FAQ)

Q: Can the 5530202F be used as a direct replacement for the 5530220F in existing designs?

A: Yes. The 5530202F is electrically and mechanically identical to the 5530220F across all specified parameters, including voltage rating, current consumption, optical output, and physical form factor. No circuit modifications or PCB layout changes are required.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts carry identical RoHS3 compliance and REACH unaffected status. Moisture sensitivity level is identical at MSL 1 (Unlimited) for both components.

Q: What determines whether a part can substitute for the 5530220F?

A: Substitution eligibility is based on matching all critical parameters: dual-level configuration, green/blank color specification, 565nm wavelength, 2mA current rating, 1.9V voltage rating, 1.6mcd luminous intensity, 60° viewing angle, diffused tinted lens type, round domed top style, 3mm T-1 package, and through-hole right-angle mounting.

Q: Are there any packaging or form factor differences?

A: No. Both parts use identical 3mm, T-1 through-hole right-angle packaging. PCB footprint and mounting requirements are identical.

Q: Which part should be selected for new designs?

A: Either part is suitable for new designs. Selection may be based on current inventory availability or supplier lead times, as all technical specifications are equivalent.
