Dialight 5530128 LED Circuit Board Indicator - Equivalent & Substitute Parts

Part Overview

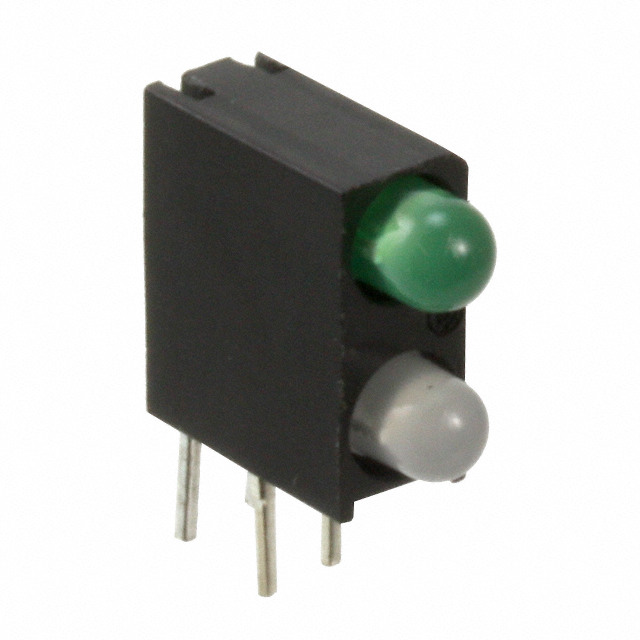

The Dialight 5530128 is a dual-level LED circuit board indicator featuring integrated blue and green LEDs in a 3mm T-1 through-hole right-angle configuration. This component is classified as obsolete, making substitute parts necessary for ongoing production and maintenance applications. The 5530128 provides simultaneous blue (428nm) and green (563nm) indication capability with specified luminous intensity ratings of 13.15mcd and 16mcd respectively.

Substiute Parts

5530128

DialightIn Stock: 8215530128 Datasheet

Current PartRFQ

5530128F

DialightIn Stock: 12705530128F Datasheet

DirectRFQ

5530182F

DialightIn Stock: 12315530182F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Dialight 5530128 are qualified based on strict electrical and mechanical parameter matching within the 553 series product family. The following parameters determine substitution eligibility:

Critical Matching Parameters:

• Dual-level configuration (2 High)
• Identical color combination: Blue (x 1), Green (x 1)
• Matching wavelength specifications: 428nm (Blue), 563nm (Green)
• Equivalent luminous intensity: 13.15mcd (Blue), 16mcd (Green)
• Identical voltage ratings: 4.6V (Blue), 2.1V (Green)
• Matching mechanical form factor: 3mm T-1 lens, round domed top
• Through-hole right-angle mounting configuration
• Equivalent environmental compliance: MSL 1, REACH Unaffected, EAR99

The substitute parts 5530128F and 5530182F maintain full electrical and mechanical compatibility with the original 5530128 specification.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts 5530128F and 5530182F are qualified direct replacements for the obsolete 5530128. Selection between these active alternatives should be based on the following factors:

Product Status: The 5530128 is classified as obsolete. Both 5530128F and 5530182F maintain active product status, ensuring long-term availability and supply chain continuity.

Compliance Certifications: Both substitute parts carry ROHS3 compliance certification, providing enhanced environmental regulatory alignment compared to the original part specification. Both maintain REACH Unaffected status and EAR99 export classification consistent with the main part.

Electrical and Mechanical Compatibility: All three part numbers maintain identical electrical specifications (voltage ratings, wavelength, luminous intensity) and mechanical form factors (3mm T-1 through-hole right-angle configuration). Direct circuit board substitution is supported without design modification.

Packaging Consideration: Both substitute parts are supplied in bulk packaging, which may differ from original packaging specifications for the 5530128.

Frequently Asked Questions (FAQ)

Q: Can 5530128F and 5530182F be used interchangeably with 5530128?

A: Yes. Both substitute parts maintain identical electrical specifications (voltage ratings, wavelength, luminous intensity) and mechanical form factors (3mm T-1 through-hole right-angle mounting). Direct circuit board substitution is supported without design modification.

Q: What is the primary reason for substitution?

A: The 5530128 is classified as obsolete. The substitute parts 5530128F and 5530182F are active products, ensuring continued availability and supply chain support.

Q: Are there differences in environmental compliance between the main part and substitutes?

A: Both substitute parts carry ROHS3 compliance certification. The original 5530128 specification does not include RoHS status documentation. All three parts maintain REACH Unaffected status and EAR99 export classification.

Q: Do the substitute parts require circuit design changes?

A: No. The substitute parts maintain identical voltage ratings (4.6V Blue, 2.1V Green), luminous intensity (13.15mcd Blue, 16mcd Green), and mechanical mounting configuration. No circuit modification is required.

Q: What is the difference between 5530128F and 5530182F?

A: Both parts maintain identical electrical and mechanical specifications. Selection between these alternatives should be based on availability, packaging requirements, and supply chain considerations.

Q: Are MSL ratings equivalent across all three part numbers?

A: Yes. All three parts carry MSL 1 (Unlimited) classification, indicating equivalent moisture sensitivity and storage requirements.
