Part Overview

The Phoenix Contact 5528370 is a 44-position interface module terminal block designed for screw connection to D-Sub female connectors, supporting wire gauges from 12-24 AWG. This component operates at 125V rated voltage with a 1A per-contact current rating and functions across the temperature range of -20°C to 50°C.

The 5528370 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for new designs or replacement applications where the original part is no longer in production.

Substiute Parts

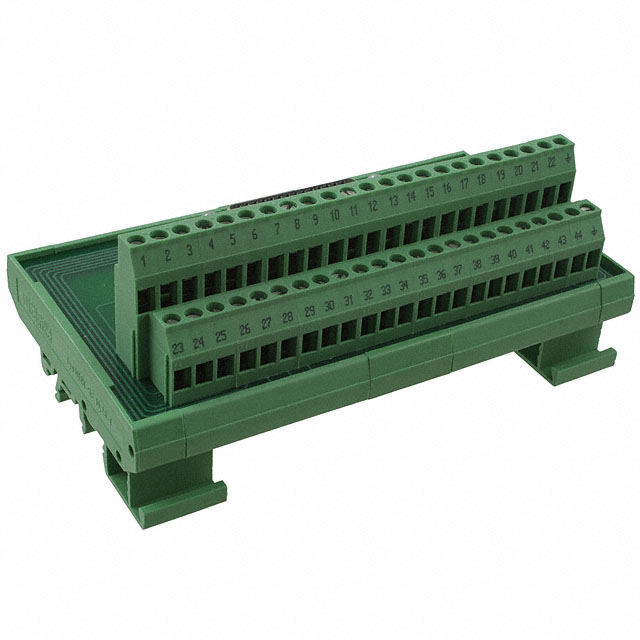

5528370

Phoenix ContactIn Stock: 9605528370 Datasheet

Current PartRFQ

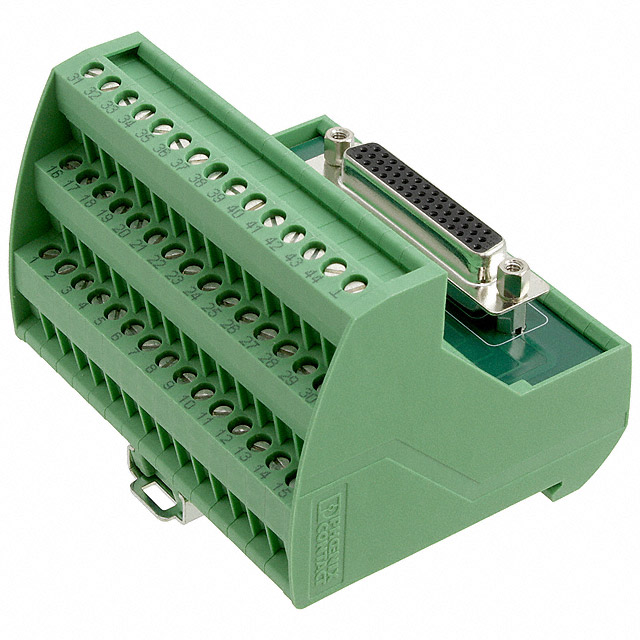

2322427

Phoenix ContactIn Stock: 9792322427 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 5528370 is determined by strict equivalence across the following critical parameters:

• Connector Type & Position Count: Both parts must feature 44-position D-Sub female connectors with jackscrew socket cable retainers
• Electrical Specifications: Rated voltage of 125V and per-contact current rating of 1A
• Wire Gauge Compatibility: Support for 12-24 AWG wire connections
• Connection Method: Screw-type terminal block connection on the process side
• Operating Environment: Temperature range of -20°C to 50°C and MSL rating of 1
• Manufacturer Consistency: Phoenix Contact manufacture ensures design and quality alignment

The substitute part Phoenix Contact 2322427 meets all these criteria and is classified as active product status, making it a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2322427 is the direct functional substitute for the obsolete 5528370. Both components share identical electrical specifications, connector configurations, and operational parameters. The 2322427 is currently in active production status with ROHS3 compliance certification and REACH affected status, ensuring regulatory alignment with current environmental standards.

The 2322427 exhibits reduced physical dimensions compared to the 5528370, which may require mechanical layout verification in existing installations. However, the electrical and functional equivalence is complete across all specified parameters.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2322427 directly replace the 5528370 in existing applications?

A: The 2322427 is electrically and functionally equivalent to the 5528370 across all specified parameters: 44-position D-Sub female connector, 125V rated voltage, 1A per-contact current rating, 12-24 AWG wire gauge support, and identical operating temperature range. Physical dimensions differ, requiring mechanical fit verification in the installation environment.

Q: What is the primary reason for substitution?

A: The 5528370 is classified as obsolete and no longer in production. The 2322427 is an active product offering identical electrical and functional specifications, ensuring continued component availability.

Q: Are there compliance differences between the two parts?

A: Both parts are RoHS compliant. The 2322427 carries ROHS3 certification and is REACH affected, representing current regulatory compliance standards. The 5528370 carries standard RoHS compliance.

Q: What packaging is available for the substitute part?

A: The 2322427 is supplied in bulk packaging, compared to the original part's unspecified packaging format.

Q: Are there any electrical parameter differences?

A: No. Both parts maintain identical voltage ratings (125V), current ratings (1A per contact), wire gauge support (12-24 AWG), and operating temperature ranges (-20°C to 50°C).
