Phoenix Contact 5528354 - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 5528354 is a 26-position interface module terminal block designed for D-Sub male connections with screw-type process-side termination. This component facilitates signal and power distribution in industrial control applications requiring standardized D-Sub connectivity.

The 5528354 carries an obsolete product status. Identifying functionally equivalent alternatives ensures design continuity and supply chain reliability for applications currently utilizing this component.

Substiute Parts

5528354

Phoenix ContactIn Stock: 9845528354 Datasheet

Current PartRFQ

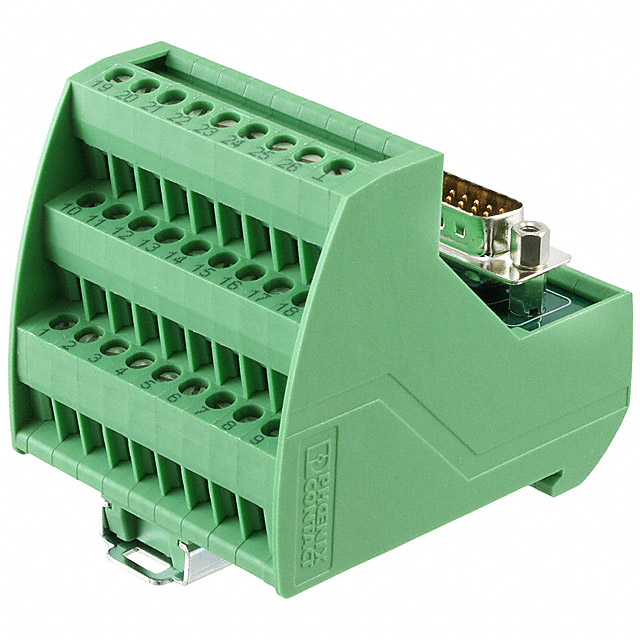

2322375

Phoenix ContactIn Stock: 7752322375 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 5528354 is determined by the following critical parameters:

• Electrical Compatibility: Identical voltage rating (125V), current rating per contact (1 A), and wire gauge range (12-24 AWG)
• Mechanical Interface: Matching 26-position count, D-Sub male connector type, and jackscrew socket cable retainer
• Termination Method: Screw-type process-side connection on both main and substitute parts
• Environmental Specifications: Equivalent operating temperature range (-20°C ~ 50°C) and MSL rating (1)

The substitute part Phoenix Contact 2322375 satisfies all critical substitution criteria while offering active product status and improved supply availability.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Phoenix Contact 2322375

The 2322375 is the direct functional equivalent for the obsolete 5528354. Both components share identical electrical ratings, mechanical interfaces, and environmental specifications. The 2322375 offers the following advantages:

• Active product status ensures continued availability and manufacturing support
• ROHS3 compliance provides alignment with current regulatory requirements
• Equivalent MSL rating and operating temperature range maintain environmental performance
• Identical screw-terminal and D-Sub male interface specifications ensure mechanical compatibility

Selection of the 2322375 is appropriate for new designs and replacement applications requiring the 26-position D-Sub male interface module with screw-type termination.

Frequently Asked Questions (FAQ)

Q: Can the 2322375 directly replace the 5528354 in existing applications?

A: Yes. Both components feature identical electrical ratings (125V, 1 A per contact), mechanical interfaces (26-position D-Sub male with jackscrew socket), and environmental specifications (-20°C ~ 50°C operating range). The screw-type process-side termination is identical on both parts.

Q: What is the significance of the product status difference?

A: The 5528354 is obsolete, indicating discontinued manufacturing and limited supply availability. The 2322375 maintains active status, ensuring reliable sourcing for current and future applications.

Q: Are there packaging differences between these parts?

A: The 5528354 is supplied with unspecified packaging, while the 2322375 is supplied in bulk packaging. Packaging format does not affect electrical or mechanical performance.

Q: How do the RoHS and REACH compliance statuses differ?

A: The 5528354 is RoHS Compliant and REACH Unaffected. The 2322375 is ROHS3 Compliant and REACH Affected. Both meet current regulatory requirements for their respective product statuses. ROHS3 represents the current RoHS directive iteration.

Q: Are there dimensional differences between the main part and substitute?

A: Yes. The 5528354 measures 3.110" × 3.031" (79.00mm × 76.99mm), while the 2322375 measures 2.059" × 2.717" (52.30mm × 69.01mm). Verify mechanical fit within your application enclosure before implementation.
