Phoenix Contact 5528341 - 26 Position Interface Module Terminal Block

Part Overview

The Phoenix Contact 5528341 is a 26-position interface module terminal block designed for screw connection to D-Sub female connectors with 12-24 AWG wire gauge support. This component functions as an adapter between process-side terminal block connections and control-side D-Sub female connectors, featuring jackscrew socket cable retention.

The 5528341 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for applications requiring this specific interface configuration.

Substiute Parts

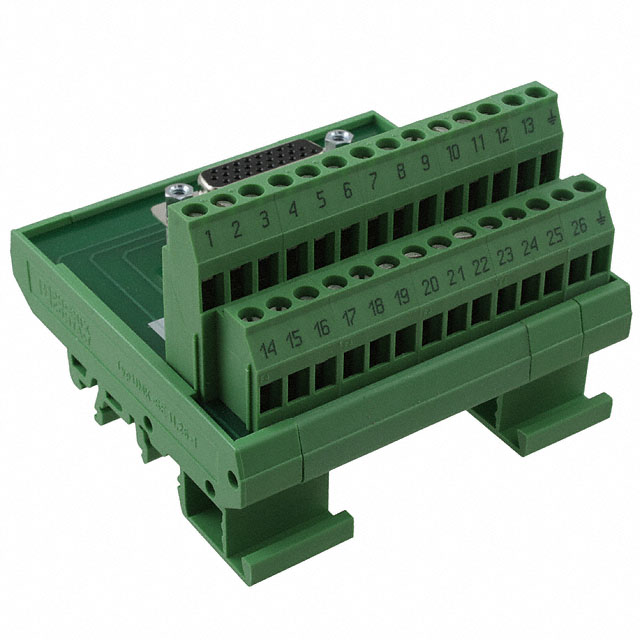

5528341

Phoenix ContactIn Stock: 9535528341 Datasheet

Current PartRFQ

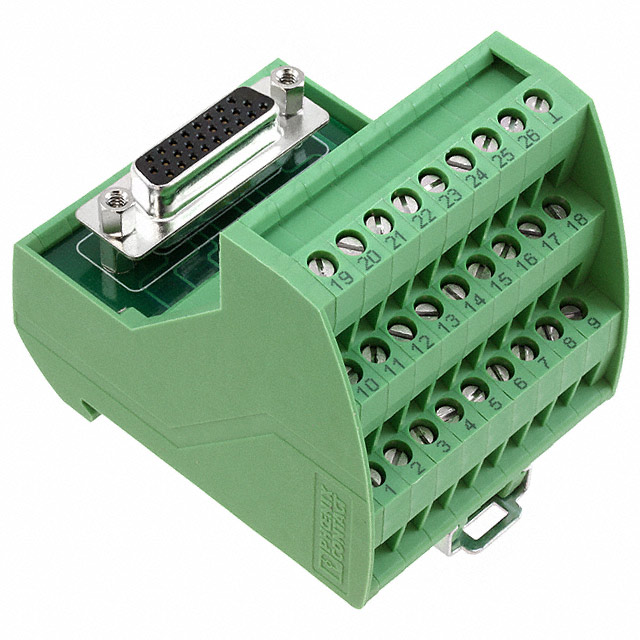

2322414

Phoenix ContactIn Stock: 11552322414 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 5528341 is determined by the following critical parameters:

• Positions / Poles: Must equal 26
• Process Side Connection: Must be Terminal Blocks - Screw Connection
• Control Side Connection: Must be D-Sub, Female
• Control Side Cable Retainer: Must be Jackscrew Socket
• Wire Gauge: Must support 12-24 AWG
• Voltage - Rated: Must be 125V or greater
• Current Rating (Per Contact): Must be 1 A or greater
• Operating Temperature Range: Must encompass -20°C ~ 50°C

The substitute part Phoenix Contact 2322414 meets all critical substitution criteria. Both parts share identical functional specifications for positions, connection types, wire gauge, voltage, current rating, and operating temperature range. The primary distinction is product status: the 2322414 is active production, whereas the 5528341 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2322414 is the direct substitute for the obsolete 5528341. Both parts are manufactured by Phoenix Contact and maintain identical electrical and mechanical specifications across all critical parameters: 26-position configuration, screw terminal process-side connection, D-Sub female control-side connection with jackscrew socket retention, 12-24 AWG wire gauge support, 125V rated voltage, 1 A per-contact current rating, and -20°C to 50°C operating temperature range.

The 2322414 is currently in active production status, ensuring ongoing availability and supply chain continuity. Both parts maintain equivalent RoHS compliance certifications and MSL ratings. The 2322414 is available in bulk packaging with higher inventory levels, supporting both new designs and replacement applications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2322414 directly replace the 5528341 in existing applications?

A: Yes. Both parts share identical functional specifications for all critical parameters: 26 positions, screw terminal connections, D-Sub female connector interface, wire gauge support, voltage rating, current rating, and operating temperature range. Direct substitution is supported without circuit or mechanical redesign.

Q: What is the primary reason for substitution?

A: The 5528341 is classified as obsolete. The 2322414 is the active production equivalent, ensuring continued component availability and supply chain reliability.

Q: Are there differences in physical dimensions between these parts?

A: Yes. The 5528341 measures 3.110" × 3.031" (79.00mm × 76.99mm), while the 2322414 measures 2.059" × 2.717" (52.30mm × 69.01mm). Physical layout and mounting considerations must be evaluated for the specific application.

Q: Do both parts meet current regulatory compliance standards?

A: Both parts are RoHS compliant. The 5528341 carries RoHS Compliant certification, while the 2322414 carries ROHS3 Compliant certification, reflecting current regulatory standards. Both maintain MSL 1 (Unlimited) moisture sensitivity ratings.

Q: What packaging options are available?

A: The 5528341 is available in standard packaging. The 2322414 is supplied in bulk packaging, which may affect procurement and inventory management strategies.
