TE Connectivity AMP Connectors 552633-4 Equivalent & Substitute Parts

Part Overview

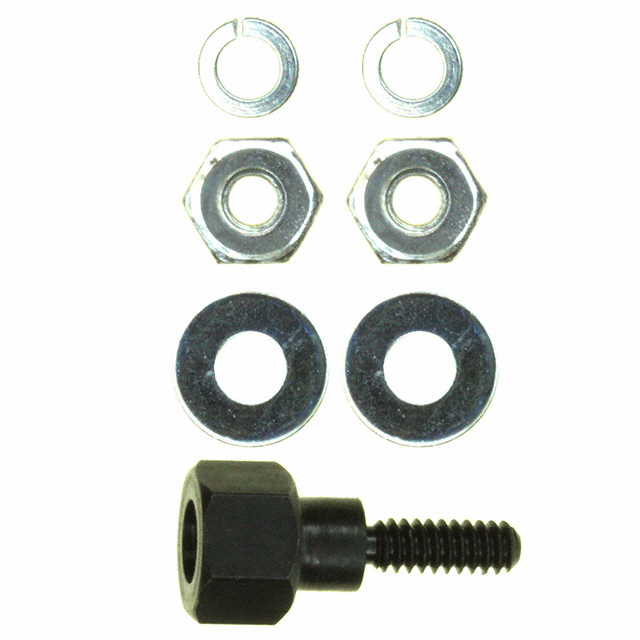

The TE Connectivity AMP Connectors 552633-4 is a jackscrew socket assembly designed for D-Sub right angle PCB connectors. This hardware kit includes a standoff stud mount configuration with integrated fastening components. The part is classified as obsolete, indicating discontinued manufacturing and limited availability through standard distribution channels. Identification of equivalent substitute parts is necessary to ensure project continuity and maintain supply chain reliability for applications utilizing D-Sub right angle PCB connector assemblies.

Substiute Parts

552633-4

TE Connectivity AMP ConnectorsIn Stock: 778552633-4 Datasheet

Current PartRFQ

5552633-4

TE Connectivity AMP ConnectorsIn Stock: 15155552633-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 552633-4 is determined by strict equivalence across the following critical parameters:

• Accessory Type: Must be jackscrew socket
• Application Compatibility: Must be designed for D-Sub right angle PCB connectors
• Mechanical Dimensions: Length - threaded portion below head (0.315" / 8.00mm) and length below head (0.457" / 11.61mm) must match exactly
• Thread Specification: M3.5 socket with 4-40 screw configuration must be identical
• Hardware Configuration: Must include hardware as standard

The substitute part 5552633-4 meets all substitution criteria through identical mechanical and functional specifications. The primary distinction between the main part and substitute is product status and compliance certification level.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5552633-4 provides functional and mechanical equivalence to the obsolete 552633-4 across all critical parameters. Selection of the substitute part is supported by the following factors:

Product Status: The substitute part maintains active production status, ensuring ongoing availability and supply chain stability compared to the obsolete main part.

Compliance Certifications: The substitute part carries ROHS3 compliance certification and REACH affected status, meeting current regulatory requirements for electronic component procurement in regulated industries and markets.

Mechanical Compatibility: Identical dimensional specifications and thread configurations ensure direct functional substitution in D-Sub right angle PCB connector assemblies without design modification.

Inventory Availability: The substitute part demonstrates higher inventory levels (1468 pieces) compared to the main part (723 pieces), supporting procurement reliability.

Frequently Asked Questions (FAQ)

Q: Can 5552633-4 be used as a direct replacement for 552633-4 in existing designs?

A: Yes. The substitute part 5552633-4 is mechanically and functionally equivalent to 552633-4. All critical parameters including thread size (M3.5 socket, 4-40 screw), length specifications (0.315" threaded portion, 0.457" below head), and application compatibility (D-Sub right angle PCB connectors) are identical.

Q: What is the primary difference between these two parts?

A: The main distinction is product status and compliance certification. The 552633-4 is obsolete with undefined REACH status, while the 5552633-4 is an active production part with ROHS3 compliance and REACH affected designation.

Q: Are there packaging differences between the main part and substitute?

A: The substitute part 5552633-4 is supplied in box packaging. The main part 552633-4 does not specify packaging format in available documentation.

Q: Does the substitute part include hardware?

A: Yes. The 5552633-4 includes hardware as a standard feature, matching the hardware inclusion specification of the main part.

Q: Is the substitute part suitable for new designs?

A: Yes. The active production status and current compliance certifications of 5552633-4 make it suitable for new design implementations requiring D-Sub right angle PCB connector jackscrew socket assemblies.

Q: What thread specifications must be matched for substitution?

A: Both parts utilize M3.5 socket with 4-40 screw thread configuration. This specification must remain constant for mechanical compatibility in D-Sub connector assemblies.
