TE Connectivity AMP Connectors 552563-1 Equivalent & Substitute Parts

Part Overview

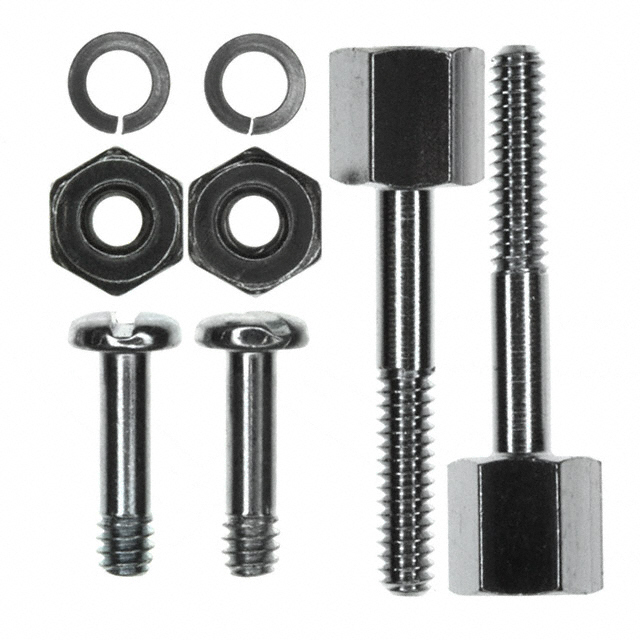

The TE Connectivity AMP Connectors 552563-1 is a screw lock kit designed for vertical mount applications with CHAMP D-Sub connectors. This component functions as a slotted jackscrew assembly and includes necessary hardware for installation. The part is classified as obsolete, making identification of equivalent substitute components essential for ongoing system maintenance and new design implementations. Substitute parts must maintain compatibility with CHAMP D-Sub connector series while meeting the same electrical and mechanical specifications.

Substiute Parts

552563-1

TE Connectivity AMP ConnectorsIn Stock: 1216552563-1 Datasheet

Current PartRFQ

5552563-1

TE Connectivity AMP ConnectorsIn Stock: 12465552563-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 552563-1 are identified based on strict compatibility criteria within the CHAMP D-Sub connector ecosystem. The primary substitution logic is based on the following parameters:

Critical Compatibility Parameters:

• Series designation (CHAMP)
• Thread size (4-40)
• Compatibility with CHAMP D-Sub connectors
• Hardware inclusion requirement
• Mounting orientation (vertical mount)

The substitute part 5552563-1 maintains all critical compatibility parameters with the original 552563-1. Both components are designed for the same connector series, utilize identical thread specifications, and include required hardware. The primary distinction between these parts is the accessory type classification and product status, with the substitute representing an active production alternative to the obsolete original component.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Component Replacement:

The 552563-1 is classified as obsolete and no longer in active production. The substitute part 5552563-1 is the direct equivalent available from TE Connectivity AMP Connectors and maintains active product status. Both components share identical thread specifications (4-40), series designation (CHAMP), and hardware inclusion requirements, ensuring mechanical and electrical compatibility with CHAMP D-Sub connector assemblies.

Compliance Considerations:

The substitute part 5552563-1 carries ROHS3 compliance certification, whereas the original 552563-1 lists RoHS status as not applicable due to its obsolete classification. Both components share identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications, indicating equivalent regulatory treatment for export and tariff purposes.

Inventory and Availability:

Current inventory of the original 552563-1 is 1168 pieces. The substitute 5552563-1 maintains 1143 pieces in active stock with active product status, providing reliable supply chain continuity for ongoing applications.

Frequently Asked Questions (FAQ)

Q: Can the 5552563-1 directly replace the 552563-1 in existing CHAMP D-Sub connector assemblies?

A: Yes. Both components share identical thread size (4-40), series designation (CHAMP), and are designed for use with CHAMP D-Sub connectors. The substitute maintains all critical mechanical and electrical compatibility parameters required for direct substitution.

Q: What is the difference between the jackscrew, slotted (552563-1) and jackscrew socket (5552563-1) designations?

A: The accessory type classification distinguishes the mechanical interface design. Both components function within the CHAMP D-Sub connector system and maintain identical thread specifications and hardware inclusion. The specific accessory type designation reflects the mechanical configuration of the jackscrew assembly.

Q: Why is the original 552563-1 listed as obsolete?

A: The 552563-1 has been discontinued from active production. The 5552563-1 represents the current active production equivalent from TE Connectivity AMP Connectors, maintaining all functional and compatibility specifications.

Q: Does the substitute part 5552563-1 meet current RoHS requirements?

A: Yes. The 5552563-1 carries ROHS3 compliance certification. The original 552563-1 lists RoHS status as not applicable due to its obsolete classification prior to current compliance requirements.

Q: Are there packaging differences between the original and substitute parts?

A: The 5552563-1 is supplied in box packaging. Packaging specifications for the original 552563-1 are not provided in the technical documentation.

Q: What thread size is used in both the original and substitute components?

A: Both the 552563-1 and 5552563-1 utilize 4-40 thread specification, ensuring mechanical compatibility with CHAMP D-Sub connector mounting requirements.
