LED Circuit Board Indicator 5510001876F Equivalent & Substitute Parts

Part Overview

The Dialight 5510001876F is an active LED Circuit Board Indicator designed for through-hole, right-angle mounting applications. This single yellow diffused LED operates at 2.1V with a 20mA current rating and delivers 10mcd luminous intensity. The component is ROHS3 compliant and carries unlimited moisture sensitivity rating (MSL 1), making it suitable for standard industrial and commercial circuit board applications. Substitute parts are identified to provide design flexibility while maintaining electrical and mechanical compatibility within the 551 series product line.

Substiute Parts

5510001876F

DialightIn Stock: 7505510001876F Datasheet

Current PartRFQ

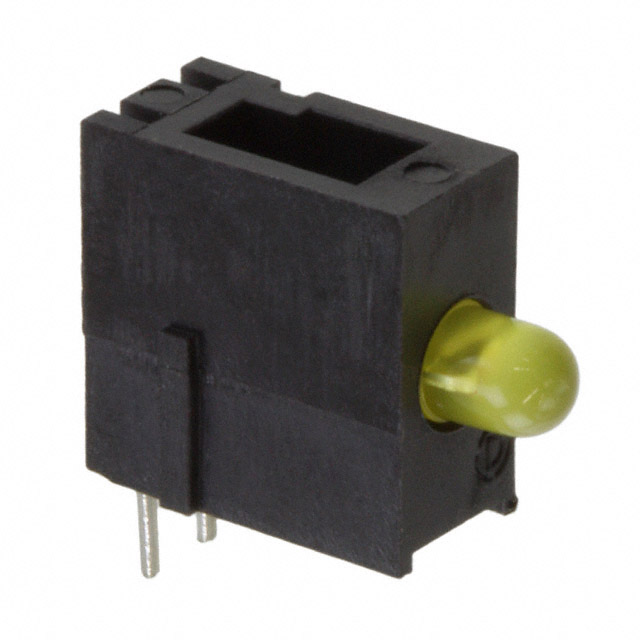

5510301F

DialightIn Stock: 25065510301F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5510001876F are qualified based on strict electrical and mechanical parameter matching within the Dialight 551 series. The substitution criteria are:

• Color: Yellow (585nm peak wavelength)
• Configuration: Single LED
• Current Rating: 20mA
• Voltage Rating: 2.1V
• Millicandela Rating: 10mcd
• Lens Type: Diffused, Tinted
• Lens Style: Round with Domed Top
• Lens Size: 3mm, T-1
• Mounting Type: Through Hole, Right Angle
• RoHS Compliance: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

The identified substitute part 5510301F maintains all critical electrical parameters and physical form factors. Both parts are active products from Dialight with identical compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both the 5510001876F and 5510301F are active Dialight products within the 551 series, carrying identical ROHS3 and REACH compliance certifications. Selection between these parts should be based on circuit board design requirements and viewing angle specifications. The 5510301F provides a defined 60° viewing angle, while the 5510001876F does not specify this parameter. Both components meet unlimited moisture sensitivity requirements (MSL 1) and are suitable for standard industrial circuit board applications without environmental restrictions.

Frequently Asked Questions (FAQ)

Q: Can the 5510301F directly replace the 5510001876F in existing designs?

A: Yes. Both parts share identical electrical ratings (2.1V, 20mA, 10mcd), physical form factor (3mm T-1 through-hole right-angle), lens characteristics (diffused, tinted, round domed top), and compliance certifications (ROHS3, REACH Unaffected). The primary difference is the specified 60° viewing angle on the 5510301F. Verify that your circuit board layout and optical requirements are compatible with this viewing angle specification.

Q: What is the significance of the viewing angle difference?

A: The 5510301F specifies a 60° viewing angle, while the 5510001876F does not provide this specification. Viewing angle determines the cone of light distribution from the LED. If your application requires a specific viewing angle for indicator visibility, confirm compatibility before substitution.

Q: Are both parts available in the same packaging?

A: Yes. Both the 5510001876F and 5510301F are supplied in bulk packaging as standard through-hole components.

Q: Do these parts have any environmental or storage restrictions?

A: No. Both parts carry MSL 1 (Unlimited) ratings, indicating no moisture sensitivity limitations during storage or handling. Standard component storage practices apply.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts are ROHS3 compliant and REACH unaffected, meeting identical regulatory requirements for industrial and commercial applications.
