Phoenix Contact 5452753 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 5452753 is a 4-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 90° free-hanging in-line applications. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations. The BCVP series plug accommodates wire gauges from 12-30 AWG (0.2-2.5mm²) with screw termination and retention latches on the wire side.

Substiute Parts

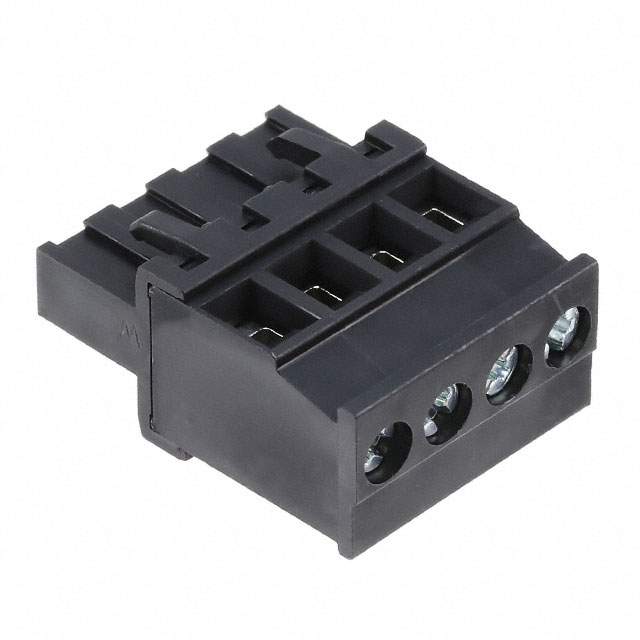

5452753

Phoenix ContactIn Stock: 8805452753 Datasheet

Current PartRFQ

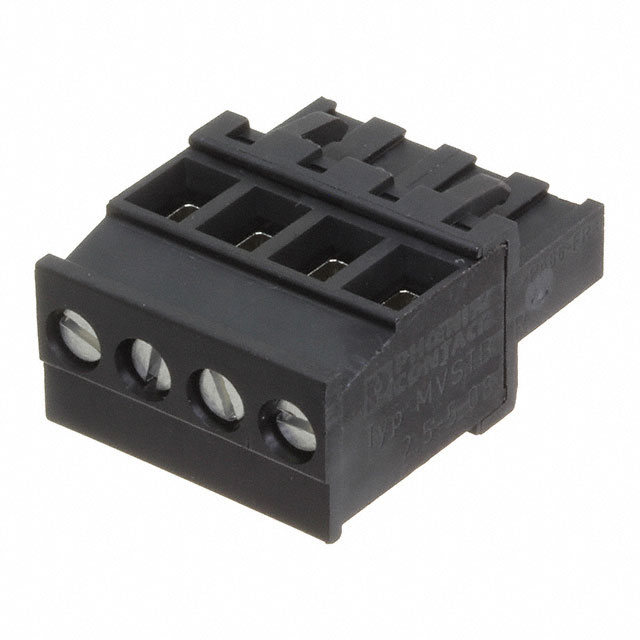

1741834

Phoenix ContactIn Stock: 7711741834 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 5452753 is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: Current rating (12A IEC minimum), voltage rating (320V IEC minimum), and wire gauge accommodation (12-30 AWG / 0.2-2.5mm²)
• Mechanical Compatibility: 4-position configuration, 0.200" (5.08mm) pitch, 90° wire entry orientation, free-hanging in-line mounting, M3 screw termination with 0.5-0.6 Nm torque specification
• Physical Dimensions: Insulation height of 1.024" (26.01mm), wire strip length of 7mm
• Functional Features: Female socket type, retention latches on wire side, tin contact mating finish

The substitute part Phoenix Contact 1741834 meets all critical substitution criteria while offering enhanced electrical performance and improved material specifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1741834 is the direct substitute for the obsolete 5452753 terminal block plug. Both components share identical mechanical and electrical core specifications: 4-position configuration, 0.200" (5.08mm) pitch, 12A current rating, 90° wire entry, and M3 screw termination with matching torque specifications.

The 1741834 offers superior electrical performance with a voltage rating of 630V IEC compared to the 5452753's 320V IEC rating, providing enhanced margin for high-voltage applications. The substitute incorporates rising cage clamp termination technology, which improves wire retention reliability compared to standard screw termination.

The 1741834 maintains active product status with ROHS3 compliance and includes documented material flammability certification (UL94 V-0), whereas the 5452753 is obsolete. The substitute's polyamide (PA) nylon housing material is explicitly specified, ensuring consistent material properties across production batches.

For applications currently using the 5452753, direct substitution with the 1741834 is electrically and mechanically valid. The enhanced voltage rating and improved termination technology of the substitute provide additional design margin without requiring circuit modifications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1741834 directly replace the 5452753 in existing applications?

A: Yes. Both components share identical pitch (0.200" / 5.08mm), position count (4), wire entry angle (90°), current rating (12A), wire gauge accommodation (12-30 AWG / 0.2-2.5mm²), screw size (M3), and torque specification (0.5-0.6 Nm). Physical dimensions including insulation height (1.024") and wire strip length (7mm) are identical. The 1741834 is electrically and mechanically compatible as a direct substitute.

Q: What is the difference between screw termination and screw with rising cage clamp termination?

A: The 5452753 uses standard screw termination, while the 1741834 incorporates rising cage clamp technology. Both termination methods accommodate the same wire gauge range (12-30 AWG / 0.2-2.5mm²) and use identical M3 screws with 0.5-0.6 Nm torque specification. The rising cage clamp design in the 1741834 provides enhanced wire retention and reduced risk of wire displacement during thermal cycling.

Q: Does the higher voltage rating of the 1741834 (630V vs. 320V) affect compatibility?

A: No. The 1741834's 630V IEC rating exceeds the 5452753's 320V IEC rating, providing additional design margin. For applications operating at or below 320V, the substitute performs identically. For applications requiring higher voltage ratings, the 1741834 offers improved capability without any compatibility concerns.

Q: Are there packaging differences between these components?

A: The 5452753 packaging specification is not provided in the technical data. The 1741834 is supplied in bulk packaging. Verify packaging requirements for your procurement process.

Q: What is the significance of the UL94 V-0 flammability rating on the 1741834?

A: The 1741834 housing material (polyamide/nylon) is certified to UL94 V-0 flammability standard, indicating superior flame resistance. The 5452753 flammability rating is not specified. This certification on the substitute provides documented material safety compliance for applications requiring flame-resistant components.

Q: Are both components RoHS compliant?

A: Yes. The 5452753 is RoHS Compliant. The 1741834 is ROHS3 Compliant, representing the current RoHS directive standard. Both components meet RoHS requirements for restricted substance elimination.
