Phoenix Contact 5452719 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

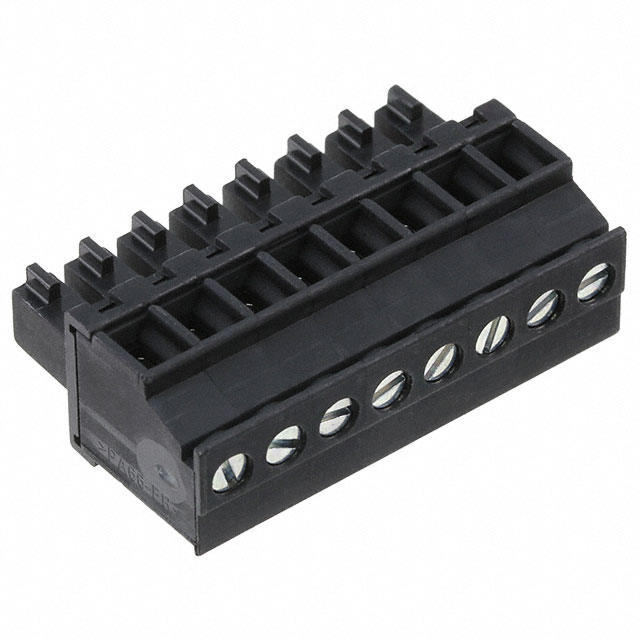

The Phoenix Contact 5452719 is an 8-position terminal block plug with female sockets, 0.150" (3.81mm) pitch, designed for 90° free-hanging in-line applications. This component features screw termination, rated for 8A at 160V (IEC) and 300V (UL), and accommodates wire gauges from 14-30 AWG (0.2-1.5mm²).

The 5452719 carries an obsolete product status. Identifying equivalent substitute parts ensures continued availability and system compatibility for maintenance, repair, and new installations requiring this terminal block configuration.

Key Parameters

Parameter	Value
Number of Positions	8
Pitch	0.150" (3.81mm)
Type	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)
Plug Wire Entry	90°
Current Rating (IEC)	8A
Voltage Rating (IEC)	160V
Voltage Rating (UL)	300V
Wire Gauge Range	14-30 AWG (0.2-1.5mm²)
Termination Style	Screw
Screw Size	M2
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 5452719 is determined by strict alignment of the following critical parameters:

Position Count & Pitch: 8 positions at 0.150" (3.81mm) spacing
Connector Type: Plug with female sockets
Mounting Configuration: Free hanging (in-line) orientation
Wire Entry Angle: 90° entry
Electrical Ratings: Minimum 8A current and 160V (IEC) / 300V (UL) voltage compliance
Wire Gauge Compatibility: Support for 14-30 AWG range
Termination Method: Screw-based connection
Regulatory Compliance: RoHS compliance

The substitute part Phoenix Contact 1800222 meets all critical substitution criteria. Both components share identical position count, pitch, connector type, mounting style, wire entry orientation, and regulatory status. Variations in termination mechanism (rising cage clamp vs. standard screw) and minor wire gauge range differences (0.14-1.5mm² vs. 0.2-1.5mm²) do not preclude functional equivalence within the specified application envelope.

Parameter Comparison

Parameter	5452719 (Main Part)	1800222 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Series	BCVP	COMBICON MCVR
Product Status	Obsolete	Active
Number of Positions	8	8
Pitch	0.150" (3.81mm)	0.150" (3.81mm)
Type	Plug, Female Sockets	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Plug Wire Entry	90°	90°
Termination Style	Screw	Screw - Rising Cage Clamp
Current - IEC	8A	8A
Current - UL	8A	8A
Voltage - IEC	160V	Not specified
Voltage - UL	300V	300V
Wire Gauge - AWG	14-30 AWG	14-30 AWG
Wire Gauge - mm²	0.2-1.5mm²	0.14-1.5mm²
Color	Black	Black
Contact Mating Finish	Tin	Tin
Screw Size	M2	M2
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm	7mm
Insulation Height	0.752" (19.10mm)	0.752" (19.10mm)
RoHS Status	RoHS Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99

Engineering Selection Recommendations

The Phoenix Contact 1800222 is the qualified substitute for the obsolete 5452719. Both components maintain identical mechanical and electrical specifications across all critical parameters: 8-position configuration, 3.81mm pitch, 90° wire entry, free-hanging mounting, and M2 screw termination.

The 1800222 offers the advantage of active product status, ensuring long-term availability and supply chain continuity. Both parts carry RoHS compliance and EAR99 ECCN classification, meeting regulatory requirements for equivalent applications.

The rising cage clamp termination mechanism in the 1800222 represents a design enhancement over the standard screw termination of the 5452719, providing improved wire retention and reduced installation variability. The extended wire gauge range (0.14-1.5mm² vs. 0.2-1.5mm²) in the substitute part accommodates additional conductor sizes without compromising electrical performance.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1800222 directly replace the 5452719 in existing installations?

A: Yes. Both components share identical position count, pitch, connector type, mounting configuration, and electrical ratings. The 1800222 is mechanically and electrically compatible with applications designed for the 5452719.

Q: What is the primary difference between these two parts?

A: The 5452719 uses standard screw termination, while the 1800222 employs rising cage clamp termination. The 1800222 also supports a slightly wider wire gauge range (0.14-1.5mm² vs. 0.2-1.5mm²). The 1800222 maintains active product status, whereas the 5452719 is obsolete.

Q: Are the electrical ratings identical?

A: Both parts are rated for 8A current and 300V (UL). The 5452719 specifies 160V (IEC), while the 1800222 does not specify an IEC voltage rating in the provided data. Both meet the 8A/300V UL requirement.

Q: Do the screw torque specifications differ?

A: Torque ranges are similar: 5452719 requires 0.2-0.25 Nm (1.7-2.2 Lb-In), while 1800222 requires 0.22-0.25 Nm (1.9-2.2 Lb-In). The 1800222 range is slightly narrower but overlaps substantially with the original specification.

Q: Are both parts RoHS compliant?

A: Yes. Both the 5452719 and 1800222 are RoHS compliant with MSL rating 1 (unlimited moisture sensitivity level).

Q: What packaging is available for each part?

A: The 5452719 is available in unspecified packaging with 920 pcs in stock. The 1800222 is supplied in bulk packaging with 933 pcs in stock.
