Phoenix Contact 5452714 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

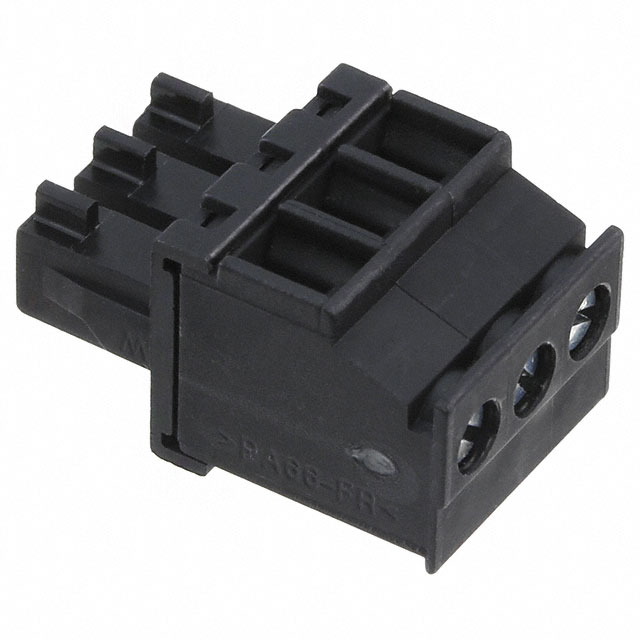

The Phoenix Contact 5452714 is a 3-position terminal block plug with female sockets, 0.150" (3.81mm) pitch, designed for 90° free-hanging in-line applications. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations. The part operates at 8A (IEC/UL) and 160V (IEC) / 300V (UL), with screw termination and wire gauge compatibility from 14-30 AWG (0.2-1.5mm²).

Substiute Parts

5452714

Phoenix ContactIn Stock: 8695452714 Datasheet

Current PartRFQ

1859700

Phoenix ContactIn Stock: 10151859700 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution compatibility for the Phoenix Contact 5452714 is determined by the following critical parameters:

• Electrical Compatibility: Current rating (8A minimum), voltage rating (160V IEC minimum), and contact mating finish (tin)
• Mechanical Compatibility: 3-position configuration, 0.150" (3.81mm) pitch, 90° plug wire entry, free-hanging in-line mounting, M2 screw size, and 7mm wire strip length
• Termination Compatibility: Screw-based termination with torque specification 0.2-0.25 Nm range
• Wire Gauge Compatibility: Support for 14-30 AWG (0.2-1.5mm²) wire range
• Physical Dimensions: Insulation height of 0.752" (19.10mm)

The substitute part Phoenix Contact 1859700 maintains all critical mechanical and electrical parameters within the specified ranges, ensuring direct functional equivalence for applications currently using the 5452714.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1859700 is the qualified substitute for the obsolete 5452714 based on the following engineering criteria:

Compliance and Status: The 1859700 is an active product with ROHS3 compliance, providing long-term availability and regulatory alignment. The 5452714, classified as obsolete, presents supply chain risk and should be replaced in new designs and maintenance applications.

Electrical Performance: Both parts maintain 8A current rating and 300V UL voltage rating. The 1859700 provides enhanced IEC voltage rating (320V versus 160V), offering improved margin for applications operating within the original 160V IEC specification.

Mechanical and Termination Compatibility: The 1859700 retains all critical mechanical parameters: 3-position configuration, 0.150" (3.81mm) pitch, 90° wire entry, M2 screw size, and 7mm wire strip length. The rising cage clamp termination style in the 1859700 is functionally compatible with screw termination applications, maintaining the same electrical connection integrity.

Wire Gauge Support: The 1859700 extends minimum wire gauge support to 0.14mm² (versus 0.2mm² in the 5452714), providing broader compatibility with fine-gauge wire applications while maintaining the 1.5mm² maximum.

Material and Flammability: The 1859700 specifies polyamide (PA) nylon housing with UL94 V-0 flammability rating, providing enhanced material documentation and fire safety certification.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1859700 directly replace the 5452714 in existing installations?

A: Yes. Both parts share identical mechanical pitch (0.150" / 3.81mm), 3-position configuration, 90° wire entry orientation, M2 screw size, and 7mm wire strip length. Electrical ratings are compatible: 8A current and 300V UL voltage are common to both. The 1859700 provides enhanced IEC voltage rating (320V) and extended wire gauge support (0.14mm² minimum).

Q: What is the difference between screw termination and rising cage clamp termination?

A: Both termination methods establish secure electrical connections. Screw termination (5452714) uses manual screw tightening. Rising cage clamp termination (1859700) uses a spring-loaded mechanism that secures wire when inserted. Both achieve equivalent electrical performance and are compatible with the same wire gauge range and torque specifications.

Q: Are there packaging differences between these parts?

A: The 5452714 is supplied with unspecified packaging, while the 1859700 is supplied in bulk packaging. Both are suitable for component-level integration. Packaging selection should be based on procurement volume and handling requirements.

Q: Does the 1859700 support the same wire gauge range as the 5452714?

A: The 1859700 supports 14-30 AWG (0.14-1.5mm²), extending the minimum wire gauge support compared to the 5452714 (0.2-1.5mm²). This provides broader compatibility with fine-gauge wire applications while maintaining the same maximum wire gauge.

Q: What compliance certifications apply to the 1859700?

A: The 1859700 is ROHS3 compliant and REACH unaffected. It includes UL94 V-0 flammability rating for the polyamide housing material. The 5452714 is RoHS compliant. Both parts carry EAR99 ECCN classification and 8536.90.4000 HTSUS code.

Q: Why is the 5452714 classified as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. The 1859700, classified as active, represents the current production equivalent and is the recommended replacement for new designs and ongoing maintenance applications.
