Phoenix Contact 5452702 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

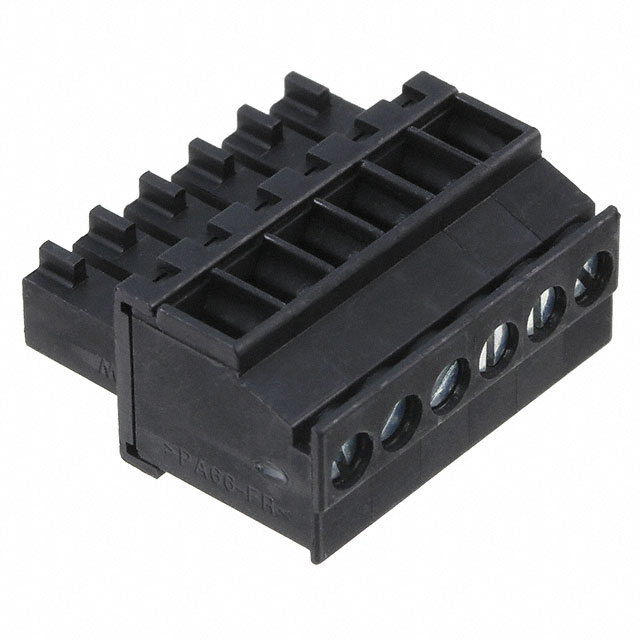

The Phoenix Contact 5452702 is a 6-position terminal block plug with female sockets, 0.138" (4.60mm) pitch, and 90° wire entry. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations. The part operates at 8A (IEC/UL) and 160V (IEC) / 300V (UL), supporting wire gauges from 14-30 AWG (0.2-1.5mm²). Locating functionally equivalent alternatives ensures design continuity and supply chain reliability.

Substiute Parts

5452702

Phoenix ContactIn Stock: 11415452702 Datasheet

Current PartRFQ

1800218

Phoenix ContactIn Stock: 8311800218 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution compatibility for the Phoenix Contact 5452702 is determined by the following critical parameters:

• Electrical Compatibility: Current rating (8A IEC/UL), voltage rating (160V IEC / 300V UL), and wire gauge support (14-30 AWG / 0.2-1.5mm²)
• Physical Compatibility: 6-position configuration, 0.138" (4.60mm) pitch, 90° wire entry orientation, and free-hanging in-line mounting
• Mechanical Interface: Female socket type, tin contact mating finish, and insulation height of 0.752" (19.10mm)
• Regulatory Compliance: RoHS compliance and MSL rating

The substitute part Phoenix Contact 1800218 meets all critical electrical and physical parameters required for direct substitution. While termination style differs (screw-clamping yoke vs. screw), both achieve equivalent electrical performance within the specified current and voltage ratings.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1800218 is the qualified substitute for the obsolete 5452702. Both components are RoHS compliant and carry MSL rating 1 (unlimited moisture sensitivity). The 1800218 maintains active product status, ensuring continued availability and supply chain support.

The primary difference lies in termination mechanism: the 5452702 uses standard screw termination, while the 1800218 employs screw-clamping yoke (tension sleeve) termination. Both methods deliver equivalent electrical performance within the specified 8A current and 160V (IEC) / 300V (UL) voltage parameters. The wire gauge support of the 1800218 extends to 0.14mm² minimum, providing broader compatibility compared to the 5452702's 0.2mm² minimum.

Selection of the 1800218 is appropriate for applications requiring the COMBICON MCVR series connector interface and clamping yoke termination methodology.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1800218 directly replace the 5452702 in existing assemblies?

A: Yes. Both components share identical electrical ratings (8A IEC/UL, 160V IEC / 300V UL), 6-position configuration, 0.138" (4.60mm) pitch, 90° wire entry, and free-hanging in-line mounting. Physical dimensions and insulation height are equivalent. The termination mechanism differs but achieves the same electrical performance.

Q: What is the difference between screw termination and screw-clamping yoke termination?

A: The 5452702 uses direct screw termination, while the 1800218 uses screw-clamping yoke (tension sleeve) termination. Both methods secure wire connections within the specified current and voltage ratings. The clamping yoke design provides additional mechanical retention of the wire conductor.

Q: Does the 1800218 support the same wire gauge range as the 5452702?

A: The 1800218 supports 14-30 AWG (0.14-1.5mm²), while the 5452702 supports 14-30 AWG (0.2-1.5mm²). The 1800218 accommodates slightly smaller wire gauges at the lower end. Both support the full 14-30 AWG range in standard applications.

Q: Are both parts RoHS compliant?

A: Yes. Both the 5452702 and 1800218 are RoHS compliant with MSL rating 1 (unlimited).

Q: Why is the 5452702 listed as obsolete?

A: The 5452702 has been discontinued by Phoenix Contact. The 1800218 (COMBICON MCVR series) represents the active product line replacement, ensuring ongoing supply and support.
