Phoenix Contact 5451718 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 5451718 is a 12-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, and 270° free-hanging in-line mounting. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new designs requiring equivalent functionality.

The 5451718 operates at 12A (IEC) / 12A (UL) and 630V (IEC) / 300V (UL), accommodating wire gauges from 12-30 AWG (0.2-2.5mm²). Its screw termination design and UL94 V-0 flammability rating support industrial control and power distribution applications.

Substiute Parts

5451718

Phoenix ContactIn Stock: 9735451718 Datasheet

Current PartRFQ

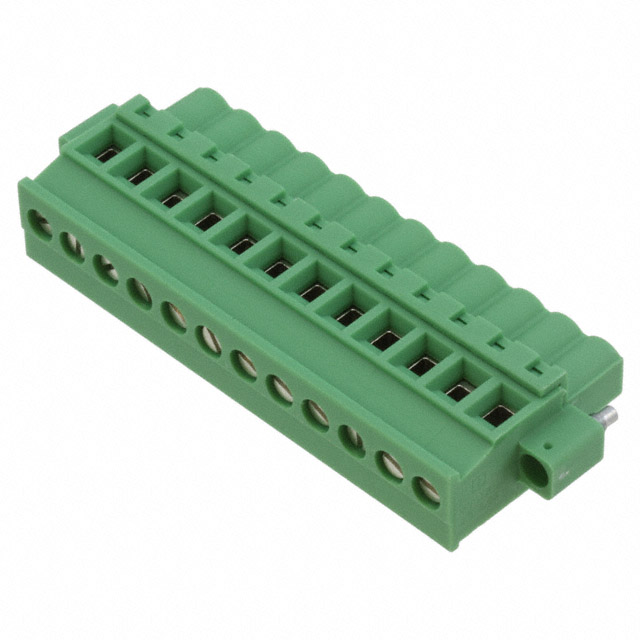

1835009

Phoenix ContactIn Stock: 8151835009 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 5451718 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 12
• Pitch: 0.200" (5.08mm)
• Type: Plug, Female Sockets
• Plug Wire Entry: 270°
• Mounting Type: Free Hanging (In-Line)
• Wire Gauge Range: 12-30 AWG (0.2-2.5mm²)
• Housing Material: Polyamide (PA), Nylon
• Insulation Height: 1.024" (26.01mm)

Electrical Compatibility Parameters:

• Current Rating: Minimum 12A (IEC)
• Voltage Rating: Minimum 630V (IEC) and 300V (UL)
• Flammability Rating: UL94 V-0

The substitute part Phoenix Contact 1835009 meets all mandatory matching parameters and electrical requirements, confirming direct substitution capability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1835009 is a direct substitute for the obsolete 5451718. Both components share identical mechanical and electrical specifications across all critical parameters: 12-position configuration, 5.08mm pitch, 270° wire entry, and equivalent current/voltage ratings under IEC standards.

The 1835009 offers enhanced compliance status (ROHS3 vs. RoHS Compliant) and active product availability, making it the appropriate selection for new designs and obsolescence mitigation. The substitute's rising cage clamp termination mechanism and higher UL current rating (15A vs. 12A) provide additional operational margin without compromising compatibility.

Both components maintain identical insulation height, housing material, and flammability rating, ensuring mechanical fit and safety performance equivalence in existing mounting configurations.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1835009 directly replace the 5451718 in existing installations?

A: Yes. Both components share identical pitch (5.08mm), position count (12), wire entry angle (270°), mounting type (free-hanging in-line), and wire gauge range (12-30 AWG / 0.2-2.5mm²). Mechanical and electrical compatibility is confirmed across all critical parameters.

Q: What is the difference in termination style between these parts?

A: The 5451718 uses standard screw termination, while the 1835009 employs screw-based rising cage clamp termination. Both are screw-actuated connection methods compatible with the same wire gauge range and mounting configuration.

Q: Does the higher UL current rating of the 1835009 (15A vs. 12A) affect compatibility?

A: No. The substitute's higher UL rating (15A) provides additional capacity without reducing compatibility. The IEC current rating remains equivalent at 12A for both parts. System design should reference the applicable standard (IEC or UL) for the installation.

Q: Are there packaging differences between these parts?

A: The 5451718 is listed with unspecified packaging, while the 1835009 is supplied in bulk packaging. This distinction affects procurement and handling but does not impact electrical or mechanical performance.

Q: What compliance certifications apply to the 1835009?

A: The 1835009 carries ROHS3 compliance and REACH unaffected status, representing current regulatory alignment. Both components maintain UL94 V-0 flammability rating and are suitable for industrial control applications.
