Phoenix Contact 5451695 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 5451695 is a 10-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, and 270° free-hanging in-line mounting. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new designs requiring equivalent functionality.

Terminal block plugs of this configuration are used in industrial control systems, power distribution panels, and modular electrical assemblies where reliable screw-terminated connections are required. The obsolete status necessitates evaluation of active alternative models that maintain electrical and mechanical compatibility.

Substiute Parts

5451695

Phoenix ContactIn Stock: 7605451695 Datasheet

Current PartRFQ

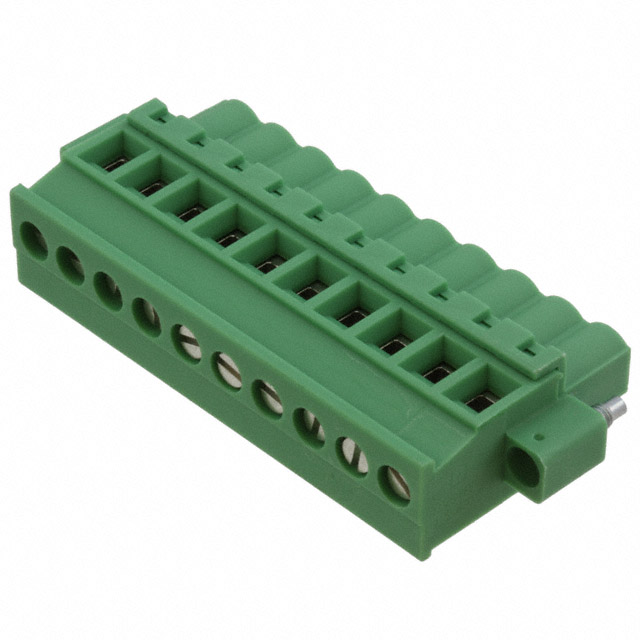

1834987

Phoenix ContactIn Stock: 8511834987 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for terminal block plugs is determined by strict alignment of the following parameters:

Critical Parameters (Must Match Exactly):

• Number of positions: 10
• Pitch: 0.200" (5.08mm)
• Type: Plug, Female Sockets
• Mounting type: Free Hanging (In-Line)
• Plug wire entry angle: 270°
• Housing material: Polyamide (PA), Nylon
• Insulation height: 1.024" (26.01mm)

Electrical Parameters (Must Meet or Exceed):

• Current rating (IEC): minimum 12A
• Voltage rating (IEC): minimum 630V
• Wire gauge compatibility: 12-30 AWG (0.2-2.5mm²)

Compliance Parameters:

• Flammability rating: UL94 V-0 or equivalent
• RoHS compliance required

Phoenix Contact 1834987 meets all critical and electrical parameters while maintaining full compatibility with systems designed for the 5451695.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1834987 is a direct functional equivalent to the 5451695 for applications requiring 10-position, 5.08mm pitch terminal block plugs with 270° wire entry and free-hanging mounting.

Compatibility Basis:

• Identical mechanical envelope and mounting interface
• Equivalent electrical ratings under IEC standards (12A, 630V)
• Enhanced UL current rating (15A vs. 12A) provides additional margin
• Both components meet UL94 V-0 flammability requirements
• Both maintain RoHS compliance (1834987 certified to ROHS3)

Status Advantage: The 1834987 carries active product status, ensuring continued availability, technical support, and supply chain reliability. The 5451695 obsolete classification limits future sourcing options.

Termination Consideration: The 1834987 employs rising cage clamp termination versus standard screw termination on the 5451695. Both termination methods are screw-actuated and compatible with identical wire gauge ranges (12-30 AWG). Rising cage clamp design provides enhanced wire retention and simplified installation procedures.

Frequently Asked Questions (FAQ)

Q: Can the 1834987 be used as a direct replacement for the 5451695 in existing assemblies?

A: Yes. Both components share identical mechanical dimensions, pitch, position count, mounting type, and wire entry angle. Electrical ratings are equivalent under IEC standards. Physical interchangeability is confirmed.

Q: What is the difference between standard screw termination and rising cage clamp termination?

A: Both are screw-actuated termination methods. Rising cage clamp design (1834987) provides automatic wire retention and simplified insertion procedures. Standard screw termination (5451695) requires manual wire positioning. Both accept identical wire gauges (12-30 AWG).

Q: Are there any compliance differences between these parts?

A: Both components meet UL94 V-0 flammability requirements. The 1834987 carries ROHS3 certification versus RoHS compliance on the 5451695. ROHS3 represents current regulatory compliance. Both are suitable for applications requiring RoHS-compliant components.

Q: Does the higher UL current rating of the 1834987 (15A vs. 12A) affect compatibility?

A: No. Higher current ratings indicate enhanced capability and do not affect compatibility. Applications designed for 12A operation remain fully compatible with the 1834987.

Q: What packaging differences exist between these parts?

A: The 5451695 is supplied in standard packaging. The 1834987 is supplied in bulk packaging. Both are suitable for component-level integration into assemblies.

Q: Why is the 5451695 classified as obsolete?

A: Obsolete classification indicates the manufacturer has discontinued active production and support. The 1834987 represents the current active equivalent, ensuring ongoing availability and technical support for new designs and maintenance applications.
