Phoenix Contact 5451022 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

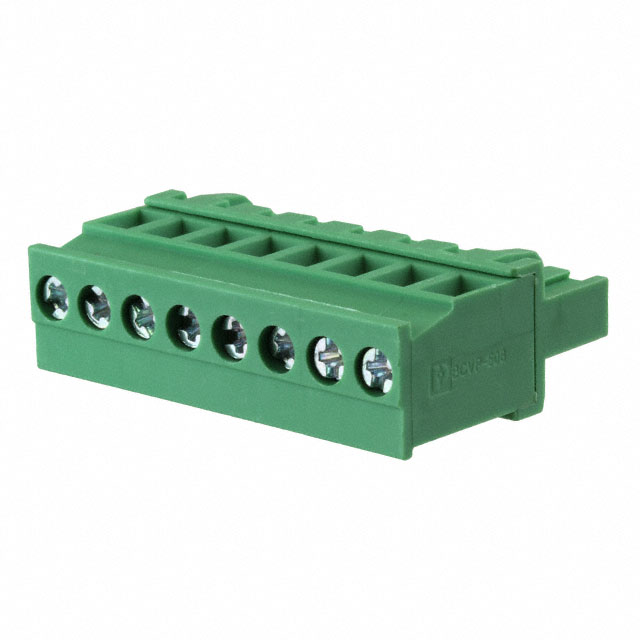

The Phoenix Contact 5451022 is an 8-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 90° free-hanging in-line applications. This component features screw termination, rated for 12A at 630V (IEC) and 12A at 300V (UL), and accommodates wire gauges from 12-30 AWG (0.2-2.5mm²). The part is currently obsolete, making substitute identification critical for ongoing system maintenance and new designs requiring compatible connectivity solutions.

Key Parameters

Parameter	Value
Manufacturer Part Number	5451022
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	8
Pitch	0.200" (5.08mm)
Plug Wire Entry	90°
Termination Style	Screw
Mounting Type	Free Hanging (In-Line)
Current Rating (IEC)	12A
Voltage Rating (IEC)	630V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)
Housing Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 5451022 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility: Identical pitch (0.200"/5.08mm), number of positions (8), and current/voltage ratings (12A minimum at 630V IEC)
Mechanical Compatibility: Matching plug orientation (90° wire entry), mounting type (free hanging in-line), and wire gauge acceptance (12-30 AWG minimum)
Termination Interface: Screw-based termination with M3 screw size and equivalent torque specification (0.5-0.6 Nm)
Material & Safety: UL94 V-0 flammability rating and polyamide housing construction
Connector Form Factor: Female socket configuration with tin contact mating finish

The substitute part Phoenix Contact 1792304 meets all these criteria while offering enhanced product status (active) and improved termination technology (rising cage clamp).

Parameter Comparison

Parameter	5451022 (Main Part)	1792304 (Substitute)
Manufacturer Part Number	5451022	1792304
Series	BCVP	COMBICON MVSTBR
Product Status	Obsolete	Active
Type	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	8	8
Pitch	0.200" (5.08mm)	0.200" (5.08mm)
Plug Wire Entry	90°	90°
Termination Style	Screw	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Current - IEC	12A	12A
Voltage - IEC	630V	630V
Current - UL	12A	15A
Voltage - UL	300V	300V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)	12-30 AWG (0.2-2.5mm²)
Color	Green	Green
Contact Mating Finish	Tin	Tin
Features	Retention Latches (Wire Side)	Retention Latches (Wire Side)
Flammability Rating	UL94 V-0	UL94 V-0
Screw Size	M3	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm	7mm
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	1.024" (26.01mm)	1.024" (26.01mm)
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000

Engineering Selection Recommendations

The Phoenix Contact 1792304 is a direct functional substitute for the obsolete 5451022. Both components share identical electrical ratings (12A at 630V IEC), mechanical form factor (8-position, 5.08mm pitch, 90° free-hanging), and safety certifications (UL94 V-0, RoHS compliance). The 1792304 offers the advantage of active product status, ensuring long-term availability and supply chain continuity.

The 1792304 incorporates rising cage clamp termination technology compared to the standard screw termination of the 5451022, while maintaining equivalent M3 screw torque specifications (0.5-0.6 Nm). The UL current rating increases from 12A to 15A on the substitute part, providing additional margin in UL-regulated applications. Both components maintain identical wire gauge acceptance (12-30 AWG) and insulation height (1.024").

Compliance certifications are equivalent: both parts meet UL94 V-0 flammability requirements, EAR99 export classification, and HTSUS 8536.90.4000 tariff coding. The 1792304 carries ROHS3 compliance versus RoHS compliance on the original part, reflecting current regulatory standards.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1792304 directly replace 5451022 in existing installations?

A: Yes. Both components share identical pitch (5.08mm), position count (8), wire entry angle (90°), and electrical ratings (12A at 630V IEC). Mechanical mounting and screw termination specifications are equivalent, enabling direct substitution in free-hanging in-line applications.

Q: What is the primary difference between these two parts?

A: The 1792304 uses rising cage clamp termination technology versus standard screw termination on the 5451022. Both employ M3 screws with identical torque specifications (0.5-0.6 Nm). The 1792304 also provides higher UL current rating (15A versus 12A) and active product status.

Q: Are there packaging differences between 5451022 and 1792304?

A: The 5451022 is listed with no specified packaging, while the 1792304 is supplied in bulk packaging. Both components maintain identical electrical and mechanical specifications for terminal block connectivity.

Q: Do both parts meet current regulatory compliance standards?

A: Yes. Both components are RoHS compliant (5451022 carries RoHS Compliant status; 1792304 carries ROHS3 Compliant status), UL94 V-0 rated, and classified under identical ECCN (EAR99) and HTSUS (8536.90.4000) codes. The 1792304 reflects current ROHS3 standards.

Q: What wire gauges are supported by the substitute part?

A: The 1792304 accepts identical wire gauge ranges as the 5451022: 12-30 AWG or 0.2-2.5mm². Wire strip length is 7mm for both components.

Q: Is the 1792304 suitable for both IEC and UL applications?

A: Yes. The 1792304 meets both IEC standards (12A at 630V) and UL standards (15A at 300V), matching or exceeding the ratings of the 5451022 (12A at 630V IEC; 12A at 300V UL).
