Phoenix Contact 5451006 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

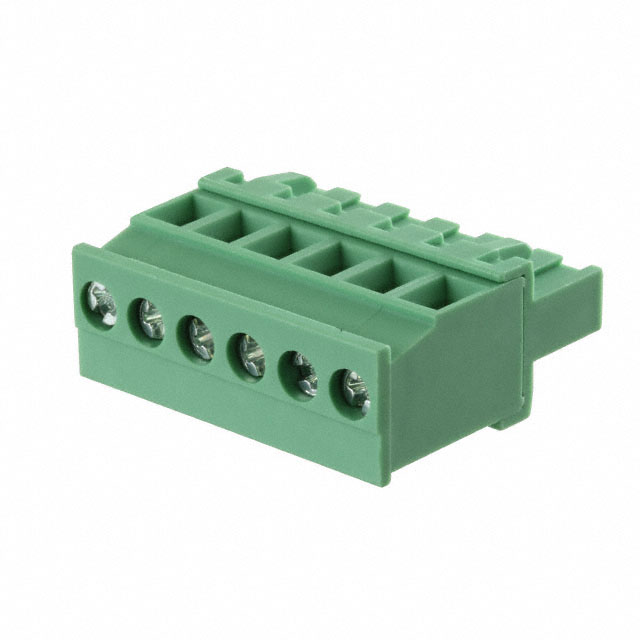

The Phoenix Contact 5451006 is a 6-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 90° free-hanging in-line applications. This component features screw termination, rated for 12A at 630V (IEC) and 12A at 300V (UL), and accommodates wire gauges from 12-30 AWG (0.2-2.5mm²). The part is classified as obsolete, making equivalent substitutes necessary for ongoing system maintenance and new designs requiring compatible connectivity solutions.

Key Parameters

Parameter	Value
Number of Positions	6
Pitch	0.200" (5.08mm)
Type	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)
Plug Wire Entry	90°
Termination Style	Screw
Current Rating (IEC)	12A
Voltage Rating (IEC)	630V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)
Housing Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
Screw Size	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 5451006 is determined by strict alignment with the following critical parameters:

6-position configuration with 0.200" (5.08mm) pitch spacing
Female socket plug type with 90° wire entry orientation
Free-hanging in-line mounting configuration
Screw-based termination mechanism
Minimum current rating of 12A (IEC) and voltage rating of 630V (IEC)
Wire gauge compatibility: 12-30 AWG (0.2-2.5mm²)
M3 screw size with 0.5-0.6 Nm torque specification
Polyamide housing with UL94 V-0 flammability rating

The substitute part Phoenix Contact 1792281 meets all these criteria while offering enhanced specifications and active product status.

Parameter Comparison

Parameter	5451006 (Main Part)	1792281 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Number of Positions	6	6
Pitch	0.200" (5.08mm)	0.200" (5.08mm)
Type	Plug, Female Sockets	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Plug Wire Entry	90°	90°
Termination Style	Screw	Screw - Rising Cage Clamp
Current Rating (IEC)	12A	12A
Voltage Rating (IEC)	630V	630V
Current Rating (UL)	12A	15A
Voltage Rating (UL)	300V	300V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)	12-30 AWG (0.2-2.5mm²)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0	UL94 V-0
Screw Size	M3	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)	0.5-0.6 Nm (4.4-5.3 Lb-In)
Product Status	Obsolete	Active
RoHS Compliance	RoHS Compliant	ROHS3 Compliant

Engineering Selection Recommendations

The Phoenix Contact 1792281 is the direct substitute for the obsolete 5451006. Both components share identical mechanical and electrical specifications across all critical parameters, ensuring direct compatibility in existing applications.

The 1792281 offers the advantage of active product status, ensuring long-term availability and supply chain continuity. The component maintains full compliance with current RoHS3 regulations, compared to the legacy RoHS compliance of the 5451006. The rising cage clamp termination mechanism in the 1792281 provides an enhanced screw termination design while maintaining the same torque specification and wire gauge compatibility.

The UL current rating improvement (15A versus 12A) in the 1792281 provides additional operational margin without affecting IEC ratings or mechanical form factor. Both components are rated for identical voltage levels (630V IEC, 300V UL) and accommodate the same wire gauge range.

Frequently Asked Questions (FAQ)

Q: Can the 1792281 directly replace the 5451006 in existing installations?

A: Yes. Both components share identical pitch (0.200"/5.08mm), position count (6), mounting type (free-hanging in-line), wire entry angle (90°), wire gauge compatibility (12-30 AWG), screw size (M3), and torque specifications (0.5-0.6 Nm). Mechanical and electrical compatibility is complete.

Q: What is the difference between standard screw termination and rising cage clamp termination?

A: The 1792281 uses a rising cage clamp mechanism within the screw termination design. Both maintain identical torque specifications (0.5-0.6 Nm) and wire gauge acceptance (12-30 AWG/0.2-2.5mm²). The cage clamp design represents an enhanced termination approach while preserving all electrical and mechanical parameters.

Q: Are there voltage or current rating differences between these parts?

A: IEC ratings are identical: 12A at 630V. UL ratings differ slightly: the 5451006 is rated 12A at 300V, while the 1792281 is rated 15A at 300V. Both meet or exceed the original specification requirements.

Q: What is the significance of the product status change from Obsolete to Active?

A: The 1792281 is an active product with guaranteed long-term availability. The 5451006 is obsolete and subject to discontinuation. For new designs and ongoing maintenance, the 1792281 ensures supply chain reliability and future support.

Q: Are both components RoHS compliant?

A: Yes. The 5451006 meets RoHS compliance standards. The 1792281 meets the more current ROHS3 compliance requirements, ensuring alignment with updated environmental regulations.

Q: Do these components require different installation procedures?

A: No. Both components use identical M3 screw termination with 0.5-0.6 Nm torque specification, 7mm wire strip length, and the same mounting configuration. Installation procedures are identical.
