TE Connectivity 536642-1 Equivalent & Substitute Parts

Part Overview

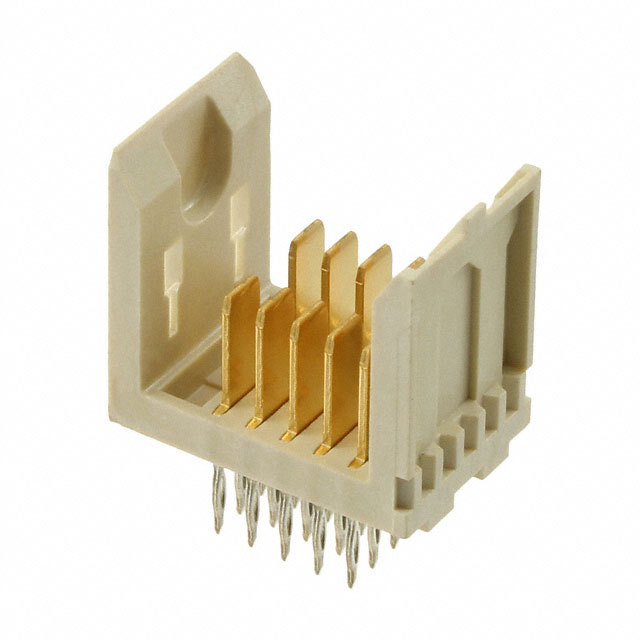

The TE Connectivity 536642-1 is a 10-position Futurebus header connector with male blades, designed for through-hole PCB mounting using press-fit termination. This connector is classified as obsolete, which necessitates identification of equivalent and substitute components for ongoing design support and procurement requirements. The part operates within a temperature range of -55°C to 125°C and carries a 30V voltage rating with UL94 V-0 flammability compliance.

Key Parameters

Parameter	Value
Connector Type	Header, Male Blades
Number of Positions	10
Pitch	0.236" (6.00mm)
Number of Rows	5
Mounting Type	Through Hole
Termination	Press-Fit
Contact Finish	Gold
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 536642-1 is determined by strict alignment of the following critical parameters:

Primary Substitution Criteria:

Connector type: Header, Male Blades
Number of positions: 10
Pitch: 0.236" (6.00mm)
Number of rows: 5
Mounting type: Through Hole
Termination method: Press-Fit
Contact finish: Gold
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

Direct Equivalent: The part 5536642-1 from TE Connectivity AMP Connectors is a direct equivalent. This part maintains identical electrical and mechanical specifications to the original 536642-1 while offering active product status and ROHS3 compliance.

Similar Substitutes: Parts from the Amphenol ICC (FCI) Metral® series (70430-112LF, 70430-116LF, 70430-118LF, 70430-140LF, 70430-142LF, 70430-158LF, 70430-159LF) and the 89099-101LF from Amphenol ICC (FCI) meet the core mechanical and electrical parameters. These parts share identical pitch, row configuration, mounting type, termination method, contact finish, and flammability rating. The 70430-124LF variant differs in contact layout (8 Power instead of 10 Power) and is suitable only where this configuration is acceptable.

Parameter Comparison

Parameter	536642-1 (Main)	5536642-1 (Direct)	70430-112LF	70430-116LF	70430-118LF	70430-124LF	70430-140LF	70430-142LF	70430-158LF	70430-159LF	89099-101LF
Connector Type	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades	Header, Male Blades
Number of Positions	10	10	10	10	10	10	10	10	10	10	10
Pitch	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)
Number of Rows	5	5	5	5	5	5	5	5	5	5	5
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Contact Finish	Gold (Flash)	Gold (Flash)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)	Gold (30.0µin / 0.76µm)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Contact Layout	10 Power	10 Power	10 Power	10 Power	10 Power	8 Power	10 Power	10 Power	10 Power	10 Power	10 Power
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant

Engineering Selection Recommendations

Primary Selection: 5536642-1

The TE Connectivity 5536642-1 is the recommended primary substitute. This part is a direct equivalent offering identical mechanical and electrical specifications to the obsolete 536642-1. The 5536642-1 carries active product status and ROHS3 compliance, addressing regulatory requirements for new designs and procurement. Tube packaging is standard for this part.

Secondary Selection: Amphenol ICC (FCI) Metral® Series

The Amphenol ICC (FCI) Metral® series connectors (70430-112LF, 70430-116LF, 70430-118LF, 70430-140LF, 70430-142LF, 70430-158LF, 70430-159LF) and 89099-101LF provide functional equivalence with active product status and RoHS compliance. These parts maintain all critical mechanical parameters and electrical specifications. The 89099-101LF additionally specifies the operating temperature range of -55°C to 125°C, matching the original part specification.

Exclusion: 70430-124LF

The 70430-124LF differs in contact layout configuration (8 Power versus 10 Power) and is suitable only for applications where this reduced power contact arrangement is acceptable.

Frequently Asked Questions (FAQ)

Q: Can the 5536642-1 be used as a direct replacement for the obsolete 536642-1?

A: Yes. The 5536642-1 maintains identical connector type, position count, pitch, row configuration, mounting type, termination method, contact finish, and flammability rating. The part is electrically and mechanically compatible with the original specification.

Q: What is the primary difference between the TE Connectivity 5536642-1 and the Amphenol ICC (FCI) Metral® series substitutes?

A: The 5536642-1 is a direct TE Connectivity equivalent with identical specifications. The Amphenol ICC (FCI) Metral® series parts are functionally equivalent but from a different manufacturer. All parts share the same pitch, row configuration, mounting type, termination method, contact finish, and flammability rating. The Metral® series parts specify a current rating of 3A, which is not specified for the original part.

Q: Are all listed substitutes RoHS compliant?

A: Yes. The 5536642-1 carries ROHS3 compliance. All Amphenol ICC (FCI) parts listed (70430 and 89099 series) are RoHS compliant. The original 536642-1 is RoHS non-compliant.

Q: Does the 70430-124LF meet the same specifications as the main part?

A: The 70430-124LF meets all mechanical and electrical parameters except contact layout. It provides 8 Power contacts instead of 10 Power contacts. This part is suitable only for applications where the reduced power contact configuration is acceptable.

Q: What packaging is available for substitute parts?

A: All substitute parts are supplied in tube packaging, which is standard for backplane connector components.

Q: Is the operating temperature range specified for all substitute parts?

A: The original 536642-1 specifies -55°C to 125°C. The 5536642-1 maintains this range. The Amphenol ICC (FCI) Metral® series (70430 variants) do not specify operating temperature in the provided data. The 89099-101LF specifies -55°C to 125°C, matching the original part.

Q: What is the voltage rating for the substitute parts?

A: The original 536642-1 specifies 30V. The 5536642-1 maintains this 30V rating. The Amphenol ICC (FCI) Metral® series and 89099-101LF do not specify voltage rating in the provided data.
