TE Connectivity AMP Connectors 536513-2 Equivalent & Substitute Parts

Part Overview

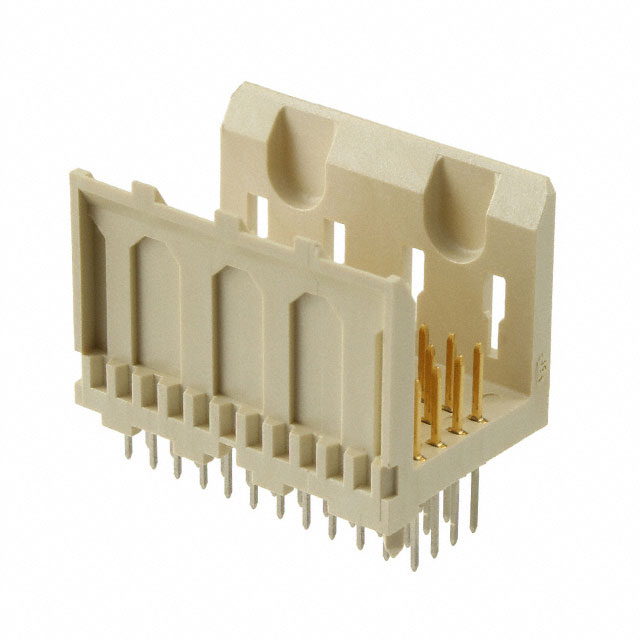

The TE Connectivity AMP Connectors 536513-2 is a 48-position Futurebus header connector with male pins designed for through-hole PCB mounting. This backplane connector features a 0.079" (2.00mm) pitch configuration across 4 rows and includes board guide features with gold-plated contacts. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing design support, maintenance, and production continuity.

Substiute Parts

536513-2

TE Connectivity AMP ConnectorsIn Stock: 1154536513-2 Datasheet

Current PartRFQ

5536513-2

TE Connectivity AMP ConnectorsIn Stock: 10945536513-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 536513-2 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector style: Futurebus
• Number of positions: 48
• Pitch: 0.079" (2.00mm)
• Voltage rating: 30V
• Contact finish: Gold

Mechanical Compatibility Parameters:

• Connector type: Header, Male Pins
• Number of rows: 4
• Mounting type: Through Hole
• Termination method: Solder
• Features: Board Guide

Manufacturing Parameters:

• Series: Z-PACK
• Positions loaded: All

The substitute part 5536513-2 maintains identical electrical and mechanical specifications across all critical parameters, ensuring direct functional equivalence for PCB integration and circuit performance.

Parameter Comparison

Engineering Selection Recommendations

The 5536513-2 serves as the direct substitute for the obsolete 536513-2 based on the following engineering criteria:

Functional Equivalence: Both parts maintain identical electrical and mechanical specifications across all critical parameters including connector style, position count, pitch, voltage rating, and mounting configuration. Direct pin-for-pin and footprint compatibility is established.

Product Status Advantage: The 5536513-2 is classified as active production status, ensuring continued availability and supply chain reliability compared to the obsolete 536513-2.

Compliance Enhancement: The 5536513-2 achieves ROHS3 compliance status, addressing current regulatory requirements. The substitute also provides documented material flammability rating (UL94 V-0) and operating temperature range (-55°C ~ 125°C), specifications not provided for the original part.

Packaging Consideration: The 5536513-2 is supplied in tube packaging, which may differ from the original part's packaging specification. Verify packaging requirements for your procurement and assembly processes.

Regulatory Status: The 5536513-2 maintains ECCN EAR99 and HTSUS 8536.69.4040 classifications consistent with the original part. REACH status for the substitute is listed as vendor undefined; confirm REACH compliance status with the manufacturer for your specific application requirements.

Frequently Asked Questions (FAQ)

Q: Can the 5536513-2 be used as a direct replacement for the 536513-2 in existing designs?

A: Yes. The 5536513-2 maintains identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch, voltage rating, mounting type, and termination method. Direct substitution is supported for PCB integration and circuit performance.

Q: What is the primary reason for substituting the 536513-2?

A: The 536513-2 is classified as obsolete. The 5536513-2 is the active production equivalent, ensuring continued component availability and supply chain continuity.

Q: Are there differences in compliance between the two parts?

A: Yes. The 536513-2 is RoHS non-compliant, while the 5536513-2 achieves ROHS3 compliance. The substitute also provides documented material flammability rating (UL94 V-0) and operating temperature range (-55°C ~ 125°C). These enhancements align with current regulatory and design standards.

Q: Does packaging differ between these parts?

A: The 5536513-2 is supplied in tube packaging. Verify that tube packaging is compatible with your procurement, storage, and assembly processes. Contact the manufacturer if alternative packaging options are required.

Q: Are the electrical specifications identical?

A: Yes. Both parts share identical voltage rating (30V), contact finish (gold), and all electrical interface parameters. No circuit redesign is required.

Q: Are the mechanical specifications identical?

A: Yes. Both parts maintain identical mounting type (through hole), termination method (solder), pitch (0.079" / 2.00mm), row configuration (4 rows), and position count (48). PCB footprints are compatible.

Q: What is the inventory status for each part?

A: The 536513-2 has 1046 pieces in stock (obsolete status). The 5536513-2 has 1028 pieces in stock (active production status). Confirm current inventory availability with your supplier.

Q: Is REACH compliance status the same for both parts?

A: No. The 536513-2 lists REACH status as affected. The 5536513-2 lists REACH status as vendor undefined. Confirm REACH compliance requirements with the manufacturer for your specific application and regulatory jurisdiction.
