TE Connectivity 536507-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 536507-1 is a 24-position Futurebus receptacle connector with female sockets, designed for board edge mounting through hole applications. This connector features a 0.079" (2.00mm) pitch, 4-row configuration, and gold-plated contacts rated for 30V operation across an extended temperature range of -55°C to 125°C.

The 536507-1 is classified as obsolete. Identifying equivalent and substitute parts is necessary to support ongoing maintenance, repair, and legacy system requirements where this connector type remains in service. Substitute parts must maintain electrical and mechanical compatibility while meeting current manufacturing and compliance standards.

Substiute Parts

536507-1

TE Connectivity AMP ConnectorsIn Stock: 903536507-1 Datasheet

Current PartRFQ

5536507-1

TE Connectivity AMP ConnectorsIn Stock: 20535536507-1 Datasheet

SimilarRFQ

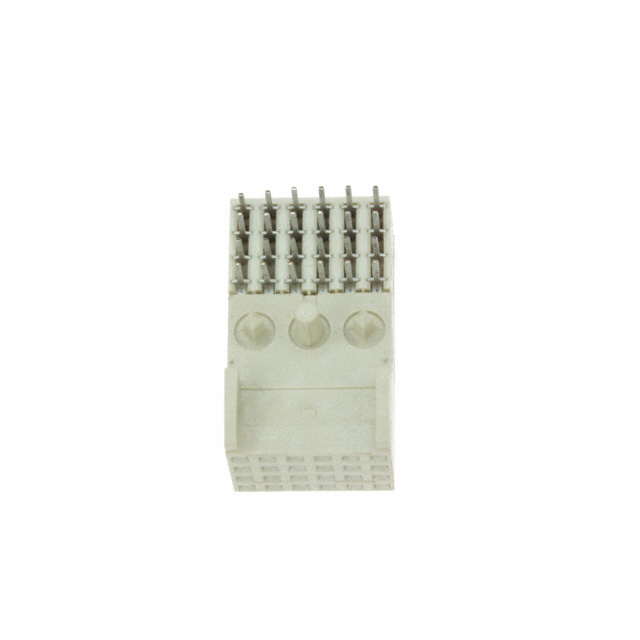

MP2-S024-41M1-C-LR

3MIn Stock: 1311MP2-S024-41M1-C-LR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 536507-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Requirements:

• Connector type: Receptacle, female sockets
• Number of positions: 24
• Pitch: 0.079" (2.00mm)
• Row configuration: 4 rows
• Voltage rating: 30V minimum
• Operating temperature range: -55°C to 125°C
• Contact finish: Gold plating

Mechanical Compatibility Requirements:

• Mounting type: Board edge, through hole, right angle
• Termination method: Solder
• Flammability rating: UL94 V-0 minimum
• Moisture sensitivity: MSL 1

Identified Substitutes:

1. 5536507-1 (TE Connectivity AMP Connectors): Direct form, fit, and function equivalent with identical electrical and mechanical specifications. Differs in product status (active vs. obsolete) and RoHS compliance level.

2. MP2-S024-41M1-C-LR (3M MetPak™ MP2 Series): Cross-manufacturer substitute with equivalent electrical and mechanical parameters. Operates within the same voltage and temperature specifications. Connector style designation differs (Futurebus+ vs. Futurebus) but maintains pin-compatible 24-position, 4-row, 2.00mm pitch configuration.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 5536507-1

The 5536507-1 is the preferred substitute for the obsolete 536507-1. Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications. The 5536507-1 maintains full compatibility with existing designs while offering the advantage of active product status and ROHS3 compliance. This part is suitable for direct replacement in new production and legacy system support applications.

Secondary Substitute: MP2-S024-41M1-C-LR

The 3M MP2-S024-41M1-C-LR provides cross-manufacturer substitution capability. This connector maintains electrical and mechanical compatibility across all critical parameters: 24-position configuration, 2.00mm pitch, 4-row layout, board edge through-hole right-angle mounting, solder termination, and gold contact finish. The MP2-S024-41M1-C-LR operates within the same temperature range (-55°C to 125°C) and meets UL94 V-0 flammability requirements. The part is RoHS compliant and carries active product status. The 3M connector includes additional features (board lock) not present in the TE Connectivity design. Current rating is specified at 1.5A for the 3M part.

Compliance Considerations:

Both substitute parts are RoHS compliant, addressing regulatory requirements that the original 536507-1 does not meet. Selection between the two substitutes should consider supply chain preferences, existing TE Connectivity or 3M component relationships, and specific application requirements regarding current capacity and connector features.

Frequently Asked Questions (FAQ)

Q: Can the 5536507-1 be used as a direct replacement for the 536507-1?

A: Yes. The 5536507-1 is a direct form, fit, and function equivalent. Both connectors share identical specifications for connector type, position count, pitch, row configuration, mounting method, termination, contact finish, operating temperature, voltage rating, and flammability rating. The primary differences are product status (active vs. obsolete) and RoHS compliance level.

Q: What are the key differences between the TE Connectivity 5536507-1 and the 3M MP2-S024-41M1-C-LR?

A: Both connectors are electrically and mechanically compatible with the original 536507-1 across all critical parameters. The primary differences are: manufacturer (TE Connectivity vs. 3M), connector style designation (Futurebus vs. Futurebus+), color (natural vs. beige), additional features (3M includes board lock), and current rating specification (3M specifies 1.5A; TE Connectivity does not specify). The 3M part does not specify a voltage rating, while the TE Connectivity parts specify 30V.

Q: Are there any compatibility concerns when substituting the MP2-S024-41M1-C-LR for the 536507-1?

A: No compatibility concerns exist for the specified electrical and mechanical parameters. Both connectors maintain the same 24-position, 4-row, 2.00mm pitch configuration with board edge through-hole right-angle mounting and solder termination. Both operate across the -55°C to 125°C temperature range and feature gold-plated contacts with UL94 V-0 flammability rating. The Futurebus+ designation indicates an enhanced connector standard, but maintains pin compatibility with Futurebus applications.

Q: What is the significance of the packaging difference between the main part and substitutes?

A: The 536507-1 packaging is not specified in available documentation. Both substitute parts are supplied in tube packaging. Tube packaging is standard for backplane connectors and does not affect electrical or mechanical compatibility. Packaging selection may influence handling, storage, and ordering considerations but does not impact connector performance or interchangeability.

Q: How do the RoHS compliance differences affect part selection?

A: The original 536507-1 is RoHS non-compliant. Both substitute parts (5536507-1 and MP2-S024-41M1-C-LR) are RoHS compliant. For new designs and applications subject to RoHS regulations, either substitute part is required. For legacy system maintenance where RoHS compliance is not mandated, all three parts remain functionally equivalent.

Q: Is the current rating specification relevant for substitution decisions?

A: The 3M MP2-S024-41M1-C-LR specifies a current rating of 1.5A. The original 536507-1 and the TE Connectivity 5536507-1 do not specify current ratings. If the application requires current rating verification, the 3M part provides explicit specification. If current capacity is not a design constraint, the absence of specification in the TE Connectivity parts does not preclude their use.

Q: Can these connectors be used interchangeably in existing backplane designs?

A: Yes, within the scope of the specified electrical and mechanical parameters. All three connectors maintain identical 24-position, 4-row, 2.00mm pitch configurations with board edge through-hole right-angle mounting and solder termination. Existing backplane designs using the 536507-1 can accommodate either substitute part without modification to PCB layout or mating connector specifications.
