Part Overview

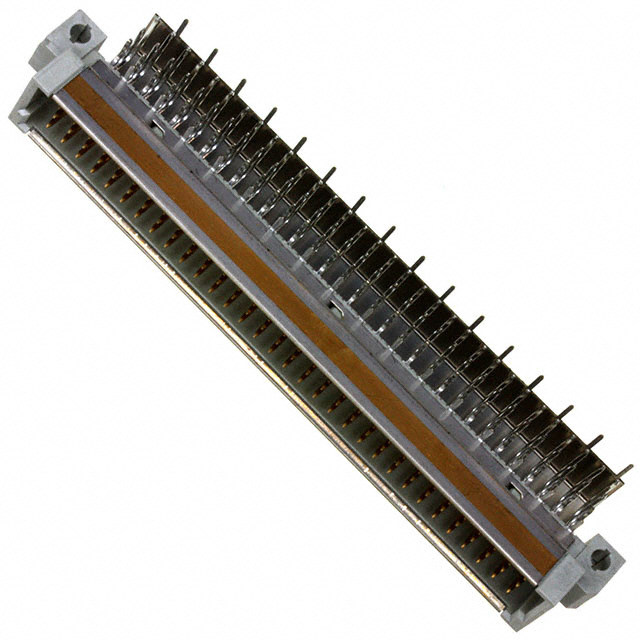

The TE Connectivity AMP Connectors 536146-5 is a 96 Position DIN Plug connector with male pins, gold plating, and right-angle through-hole mounting. This backplane connector is designed for PCB applications requiring high-density interconnection in the Eurocard series. The part is currently Active in product status with 1182 pieces in stock inventory.

Substitute parts are necessary when the original 536146-5 becomes unavailable, when design requirements shift toward RoHS compliance, or when alternative connector configurations better suit specific application needs. The substitute parts listed maintain electrical and mechanical compatibility through matching core parameters: 96 positions, 0.100" (2.54mm) pitch, 3-row configuration, Style C, through-hole right-angle mounting, solder termination, and gold contact finish.

Key Parameters

Parameter	Value
Connector Type	Plug, Male Pins
Number of Positions	96
Pitch	0.100" (2.54mm)
Number of Rows	3
Style	C
Mounting Type	Through Hole, Right Angle
Termination	Solder
Contact Finish	Gold
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution compatibility for the 536146-5 is determined by strict adherence to the following core parameters:

Mandatory Matching Parameters:

Number of Positions: 96
Pitch: 0.100" (2.54mm)
Number of Rows: 3
Style: C
Mounting Type: Through Hole, Right Angle
Termination: Solder
Contact Finish: Gold
Operating Temperature Range: Minimum -55°C to maximum 125°C (or higher)
Material Flammability Rating: UL94 V-0

Acceptable Variations:

Connector Type: Header or Plug configurations are functionally interchangeable in backplane applications
Features: Ground Plate, Mounting Clips, or Board Lock do not prevent substitution
Contact Finish Thickness: Variations in gold plating thickness do not affect electrical performance
Current Rating: Variations in amperage rating do not prevent substitution
Insulation Material: Different thermoplastic polymers meeting UL94 V-0 are acceptable
RoHS Status: Both compliant and non-compliant parts are listed; selection depends on regulatory requirements

All five substitute parts meet these mandatory parameters and are therefore electrically and mechanically compatible with the 536146-5.

Parameter Comparison

Parameter	536146-5 (TE Connectivity)	0850030567 (Molex)	121A10149X (Amphenol CONEC)	86093967113H55ELF (Amphenol ICC/FCI)	PCN10-96P-2.54DS(72) (Hirose)	PCN10EA-96P-2.54DS(72) (Hirose)	RE96MSR-062 (Vector Electronics)
Manufacturer	TE Connectivity AMP Connectors	Molex	Amphenol CONEC	Amphenol ICC (FCI)	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Vector Electronics
Number of Positions	96	96	96	96	96	96	96
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	3	3	3	3	3	3	3
Style	C	C	C	C	C	C	1
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Operating Temperature Range	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	Not Specified
Product Status	Active	Obsolete	Obsolete	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant
Inventory (Pcs)	1182	923	1022	2156	905	1105	1213

Engineering Selection Recommendations

Primary Selection (Active Status, Full Temperature Range):

The 86093967113H55ELF (Amphenol ICC/FCI) is the preferred substitute when the original 536146-5 is unavailable. This part maintains Active product status, operates across the full -55°C to 125°C temperature range, carries RoHS compliance, and has the highest inventory availability (2156 pieces). The Board Lock feature provides enhanced mechanical stability without compromising electrical compatibility.

The RE96MSR-062 (Vector Electronics) is an alternative Active-status substitute that also supports the full -55°C to 125°C operating range and carries ROHS3 compliance. This part is suitable for applications requiring maximum temperature performance.

Secondary Selection (Active Status, Limited Temperature Range):

The PCN10-96P-2.54DS(72) and PCN10EA-96P-2.54DS(72) (Hirose Electric Co Ltd) are Active-status substitutes with ROHS3 compliance. Both parts operate within -55°C to 85°C, which is 40°C below the original part's maximum rating. These parts are suitable only for applications where the operating temperature does not exceed 85°C. The PCN10EA-96P-2.54DS(72) variant includes Board Lock features.

Obsolete Status Parts (Not Recommended for New Designs):

The 0850030567 (Molex) and 121A10149X (Amphenol CONEC) carry Obsolete product status. While electrically and mechanically compatible, these parts should not be selected for new designs or long-term production requirements due to discontinued manufacturer support and uncertain future availability.

RoHS Compliance Consideration:

The original 536146-5 is RoHS non-compliant. All substitute parts listed are RoHS compliant (either ROHS3 or RoHS Compliant status). Selection of a substitute part automatically upgrades the assembly to RoHS compliance.

Frequently Asked Questions (FAQ)

Q: Can I substitute a Header connector for the Plug connector in the 536146-5?

A: Yes. The 536146-5 is a Plug configuration, while most substitutes are Header configurations. In backplane connector applications, Plug and Header types are functionally interchangeable when all other parameters match (positions, pitch, rows, mounting, termination, and contact finish). The electrical and mechanical interface remains compatible.

Q: What is the difference between the two Hirose parts (PCN10-96P-2.54DS(72) and PCN10EA-96P-2.54DS(72))?

A: Both Hirose parts are identical except for the Board Lock feature present in the PCN10EA variant. The "EA" designation indicates the addition of Board Lock. Both parts operate within -55°C to 85°C and carry identical electrical specifications. Selection between them depends on whether the application requires mechanical board locking.

Q: Why do some substitute parts have a lower maximum operating temperature (-55°C to 85°C instead of -55°C to 125°C)?

A: The Hirose PCN10 series parts are rated to 85°C maximum, which is 40°C lower than the original 536146-5. This difference is a manufacturer specification and does not indicate inferior quality. These parts are suitable for applications where the operating environment does not exceed 85°C. For applications requiring full -55°C to 125°C operation, select the Amphenol ICC/FCI 86093967113H55ELF or Vector Electronics RE96MSR-062.

Q: Is the 536146-5 still available, or should I transition to a substitute?

A: The 536146-5 remains Active in product status with 1182 pieces currently in stock. However, if future availability becomes uncertain or if RoHS compliance is required, the 86093967113H55ELF (Amphenol ICC/FCI) is the recommended transition path due to its Active status, full temperature range support, and RoHS compliance.

Q: What does "Style C" mean, and why is it important for substitution?

A: Style C refers to a specific DIN connector configuration standard that defines the physical layout and keying of the connector. All listed substitute parts maintain Style C compatibility with the original 536146-5, except for the RE96MSR-062 which uses Style 1. Style differences do not prevent electrical substitution but may affect mechanical fit in some applications. Verify mechanical compatibility with your specific PCB layout before final selection.

Q: Are there differences in gold plating thickness between the substitute parts?

A: Yes. Contact finish thickness varies across substitutes: 24.0µin (0.61µm) for Molex, 7.00µin (0.178µm) for Amphenol CONEC, 8.00µin (0.203µm) for Hirose, and 10.0µin (0.25µm) for Vector Electronics. The original 536146-5 does not specify thickness. These variations do not affect electrical performance or contact reliability in standard applications.

Q: Which substitute part has the best inventory availability?

A: The 86093967113H55ELF (Amphenol ICC/FCI) has the highest inventory with 2156 pieces in stock, followed by RE96MSR-062 (Vector Electronics) with 1213 pieces. Both are suitable for immediate procurement.

Q: Can I use the obsolete Molex 0850030567 or Amphenol CONEC 121A10149X as substitutes?

A: While electrically and mechanically compatible, both parts carry Obsolete product status. This means manufacturer support has ended and future availability is not guaranteed. These parts should only be used for repair or maintenance of existing equipment where the original part is no longer available. For new designs or ongoing production, select an Active-status substitute.

Q: What does RoHS compliance mean for my application?

A: RoHS (Restriction of Hazardous Substances) compliance indicates the part does not contain restricted materials such as lead, mercury, cadmium, or hexavalent chromium. If your application or end market requires RoHS compliance, all substitute parts listed meet this requirement. The original 536146-5 is RoHS non-compliant, so substitution automatically upgrades compliance status.
