Amphenol ICC 53611-G34-4 Rectangular Connector Header — Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 53611-G34-4 is a shrouded vertical rectangular connector header with 34 positions, 2 rows, and 0.100" (2.54mm) pitch. This through-hole solder-terminated component features male pins with gold-plated mating contacts and phosphor bronze material. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	34
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Contact Finish - Mating	Gold or Gold, GXT™
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 53611-G34-4 is determined by strict equivalence across the following critical parameters:

Connector type: Header
Contact type: Male pin
Number of positions: 34
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Shrouding: Shrouded - 4 wall
Mounting type: Through hole
Termination: Solder
Contact finish - mating: Gold or gold-based
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

Substitute parts are grouped into two categories:

Category 1: Direct Amphenol ICC Equivalent The 53611-G34-4LF is the active production equivalent from the same manufacturer and series (Quickie™). This part maintains identical mechanical and electrical specifications while offering RoHS compliance and improved availability.

Category 2: TE Connectivity AMP-Latch Series Substitutes Parts from TE Connectivity (102321-8, 2-5499206-8, 499206-8, 499922-8, 5102321-8, 5499206-8, 5499922-8, 5499923-8) are functionally equivalent across all critical parameters. These parts share the same pitch, position count, shrouding, and termination method. Variations exist in contact length specifications, post finish materials, and compliance certifications, but all maintain board-to-cable/wire connection capability with identical mating interfaces.

Category 3: Assmann WSW Components Alternative The AWH 34G-0222-T provides mechanical and electrical equivalence with differences in contact material (brass vs. phosphor bronze), insulation material composition, and operating temperature range.

Parameter Comparison

Parameter	53611-G34-4	53611-G34-4LF	102321-8	2-5499206-8	499206-8	499922-8	5102321-8	5499206-8	5499922-8	5499923-8	AWH 34G-0222-T
Manufacturer	Amphenol ICC	Amphenol ICC	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Assmann WSW
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	34	34	34	34	34	34	34	34	34	34	34
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	Not specified
Contact Length - Post	0.120" (3.05mm)	0.120" (3.05mm)	0.155" (3.94mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.155" (3.94mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.155" (3.94mm)	0.130" (3.30mm)
Insulation Height	0.640" (16.26mm)	0.640" (16.26mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.669" (17.00mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	Flash
Contact Finish - Post	Not specified	Tin	Tin-Lead	Tin	Tin-Lead	Tin-Lead	Tin	Tin	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Brass
Insulation Material	Thermoplastic	Thermoplastic	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot	Keying Slot	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot
Operating Temperature	Not specified	Not specified	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Blue	Black	Black	Black	Black	Black	Black	Gray
Current Rating (Amps)	Not specified	Not specified	1A per Contact	1A	1A	1A	1A per Contact	1A	1A	1A per Contact	3A
Voltage Rating	Not specified	Not specified	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	Not specified
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	ROHS3 Compliant	Not applicable	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Not specified	Tray	Bulk	Tray	Tray	Tray	Tray	Tray	Bulk	Bulk	Tray
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

For applications currently using the obsolete 53611-G34-4, the following selection criteria apply:

Primary Recommendation: 53611-G34-4LF This Amphenol ICC part is the direct active production equivalent. It maintains identical mechanical and electrical specifications while offering RoHS compliance and superior availability. This is the preferred choice for new designs and direct replacements where the original series continuity is required.

Secondary Recommendation: TE Connectivity AMP-Latch Series (5499206-8, 5499922-8, 5499923-8) These parts provide full functional equivalence with active product status and ROHS3 compliance. The 5499206-8 offers the highest inventory availability (10,100 units) and is suitable for applications where manufacturer diversity is acceptable. The 5499922-8 and 5499923-8 provide alternative contact finish thickness options (15.0µin mating finish) for specific environmental requirements.

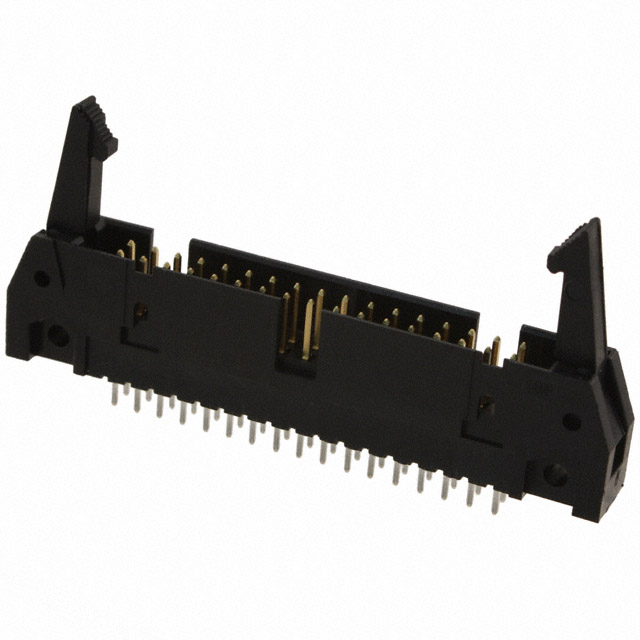

Tertiary Recommendation: TE Connectivity 102321-8 and 5102321-8 These parts are suitable for applications requiring longer contact post lengths (0.155" / 3.94mm). Both maintain full electrical and mechanical compatibility with identical pitch and position specifications.

Alternative Consideration: Assmann WSW AWH 34G-0222-T This part provides the highest current rating (3A) and extended operating temperature range (-40°C to 105°C). It is suitable for applications with higher thermal or current demands. Note the differences in contact material (brass vs. phosphor bronze) and insulation material composition (glass-filled PBT vs. thermoplastic).

Compliance Considerations: For new designs requiring RoHS compliance, select from: 53611-G34-4LF, 2-5499206-8, 5102321-8, 5499206-8, 5499922-8, 5499923-8, or AWH 34G-0222-T. For REACH-unaffected applications, prioritize 2-5499206-8, 5102321-8, 5499206-8, 5499922-8, 5499923-8, or AWH 34G-0222-T.

Frequently Asked Questions (FAQ)

Q: Can I directly replace 53611-G34-4 with 53611-G34-4LF? A: Yes. The 53611-G34-4LF is the active production equivalent from Amphenol ICC. It maintains identical pitch (0.100"), position count (34), row configuration (2 rows), shrouding (4-wall), and termination method (solder). The primary difference is RoHS compliance status and improved availability.

Q: Are TE Connectivity AMP-Latch parts fully compatible with the original Amphenol ICC connector? A: Yes, for mating interface purposes. All TE Connectivity substitutes share identical pitch (0.100"), position count (34), row spacing (0.100"), shrouding (4-wall), and contact type (male pin). Variations in contact post length and insulation height do not affect mating compatibility but may impact PCB layout and mechanical clearance. Verify board-level dimensions before implementation.

Q: What is the difference between contact post lengths in the substitute parts? A: Contact post length varies between 0.110" (2.79mm), 0.120" (3.05mm), and 0.155" (3.94mm) across the substitute options. Longer posts provide greater engagement depth with mating receptacles and accommodate thicker PCB assemblies. Shorter posts reduce overall connector height. Select based on your specific PCB thickness and mating receptacle design.

Q: Which substitute part has the best availability? A: The TE Connectivity 5499206-8 has the highest inventory (10,100 units). The 5499922-8 and 5499923-8 also offer strong availability (1,684 and 1,694 units respectively). The Assmann WSW AWH 34G-0222-T provides 12,910 units in stock.

Q: Are there RoHS compliance differences between substitutes? A: Yes. The 53611-G34-4LF, 2-5499206-8, 5102321-8, 5499206-8, 5499922-8, 5499923-8, and AWH 34G-0222-T are RoHS3 compliant or RoHS compliant. The original 53611-G34-4, 102321-8, 499922-8, and 499206-8 are either non-compliant or not applicable. For new designs, select from the compliant options.

Q: What packaging options are available? A: Tray packaging is standard for most substitutes (53611-G34-4LF, 2-5499206-8, 499206-8, 499922-8, 5102321-8, 5499206-8, AWH 34G-0222-T). Bulk packaging is available for 102321-8, 5499922-8, and 5499923-8. Select based on your procurement and handling requirements.

Q: Can I use the Assmann WSW AWH 34G-0222-T as a direct substitute? A: The AWH 34G-0222-T is mechanically and electrically equivalent for mating interface purposes. However, note the differences: brass contact material (vs. phosphor bronze), glass-filled PBT insulation (vs. thermoplastic), higher current rating (3A vs. 1A), and extended operating temperature range (-40°C to 105°C vs. unspecified). These differences may affect performance in specific applications. Verify compatibility with your system requirements before implementation.

Q: What is the difference between tin and tin-lead post finishes? A: Tin-lead post finishes are found on 102321-8, 499206-8, and 499922-8. Tin post finishes are used on 53611-G34-4LF, 2-5499206-8, 5102321-8, 5499206-8, 5499922-8, 5499923-8, and AWH 34G-0222-T. Tin-lead finishes are restricted in RoHS3 compliant applications. For new designs, select tin-finished parts to ensure regulatory compliance.

Q: Do all substitutes have the same mating contact finish? A: All substitutes use gold or gold-based finishes on mating contacts. The original 53611-G34-4 and 53611-G34-4LF specify gold or gold GXT™. TE Connectivity parts specify gold or gold-palladium. Assmann WSW specifies gold with flash thickness. These variations are within acceptable industry standards for connector mating surfaces.
