TE Connectivity AMP Connectors 535677-5 Equivalent & Substitute Parts

Part Overview

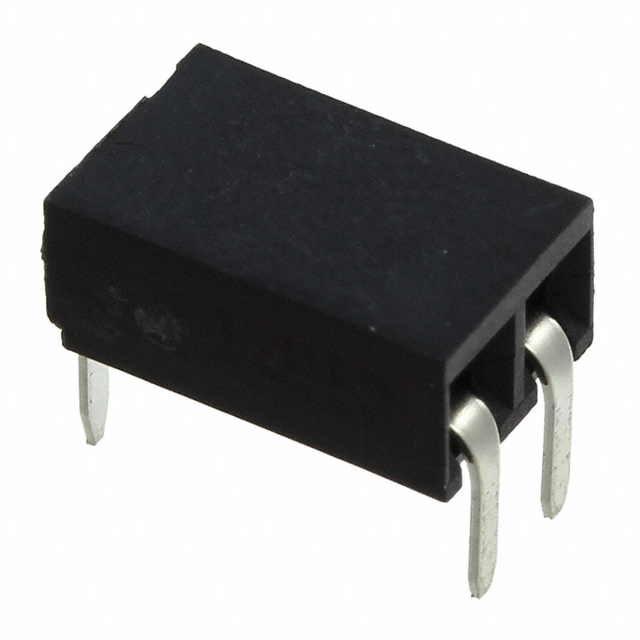

The TE Connectivity AMP Connectors 535677-5 is a 2 Position Receptacle Connector with 0.100" (2.54mm) pitch, designed for Through Hole, Right Angle mounting on printed circuit boards. This connector features Tin-Lead contact finish and is part of the AMPMODU Mod II series. The part is classified as Obsolete, making identification of equivalent and substitute components essential for ongoing design support, maintenance, and production continuity.

Substiute Parts

535677-5

TE Connectivity AMP ConnectorsIn Stock: 985535677-5 Datasheet

Current PartRFQ

5535677-5

TE Connectivity AMP ConnectorsIn Stock: 7905535677-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 535677-5 is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

• Number of Positions: 2
• Pitch - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole, Right Angle
• Connector Type: Receptacle
• Contact Type: Female Socket
• Insulation Height: 0.137" (3.47mm)
• Contact Length - Post: 0.115" (2.92mm)

Electrical & Material Parameters:

• Operating Temperature Range: -55°C ~ 125°C
• Insulation Material: Polyester, Glass Filled
• Contact Material: Phosphor Bronze
• Termination: Solder
• Fastening Type: Push-Pull

Environmental & Compliance Parameters:

• RoHS Compliance Status
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

The substitute part 5535677-5 maintains full mechanical and electrical compatibility with the original 535677-5 across all critical parameters. The primary differences are in contact finish specifications and product status classification.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity AMP Connectors 5535677-5

The 5535677-5 is the direct functional equivalent for the obsolete 535677-5. Both connectors share identical mechanical dimensions, electrical operating parameters, and material specifications. The substitute part is currently in Active product status, ensuring ongoing availability and supply chain continuity.

Compliance Considerations:

The original 535677-5 carries ROHS3 Compliant certification, while the substitute 5535677-5 carries RoHS Compliant certification. Both meet current environmental and regulatory requirements. The substitute part maintains full MSL 1 (Unlimited) moisture sensitivity rating, matching the original specification.

Contact Finish Differences:

The primary technical distinction between the two parts is the contact finish specification. The original 535677-5 uses Tin-Lead finish at 100.0µin (2.54µm) thickness on both mating and post contacts. The substitute 5535677-5 uses pure Tin finish at 150.0µin (3.81µm) thickness. The increased thickness in the substitute part provides equivalent or superior contact durability and corrosion resistance.

Interchangeability:

The 5535677-5 is a direct mechanical and electrical substitute for the 535677-5. Both connectors are designed for identical mating applications, PCB mounting configurations, and operating environments. The parts are fully interchangeable in board-to-board connector applications requiring 2-position, 0.100" pitch receptacle connectors with right-angle through-hole mounting.

Frequently Asked Questions (FAQ)

Q: Can the 5535677-5 directly replace the 535677-5 in existing designs?

A: Yes. The 5535677-5 is a direct substitute for the 535677-5. Both connectors share identical mechanical dimensions, pitch spacing, mounting configuration, and electrical operating parameters. The parts are fully interchangeable for board-to-board connector applications.

Q: What is the significance of the contact finish difference between Tin-Lead and Tin?

A: The original 535677-5 uses Tin-Lead finish, while the substitute 5535677-5 uses pure Tin finish. The substitute part features increased contact finish thickness (150.0µin versus 100.0µin), which provides enhanced contact durability and corrosion resistance. Both finishes are suitable for solder termination and long-term reliability in the specified operating temperature range of -55°C to 125°C.

Q: Why is the original 535677-5 classified as Obsolete?

A: The 535677-5 is classified as Obsolete due to product lifecycle management by TE Connectivity. The substitute 5535677-5 is the current Active equivalent, ensuring continued availability and support for applications requiring this connector type.

Q: Are there any packaging differences between the two parts?

A: The original 535677-5 packaging information is not specified in the available data. The substitute 5535677-5 is supplied in Bulk packaging. Both parts maintain identical electrical and mechanical specifications regardless of packaging format.

Q: What is the operating temperature range for both connectors?

A: Both the 535677-5 and 5535677-5 operate across the identical temperature range of -55°C to 125°C. This specification applies to all electrical and mechanical functions of the connector.

Q: Are both parts RoHS compliant?

A: Yes. The original 535677-5 is ROHS3 Compliant, and the substitute 5535677-5 is RoHS Compliant. Both parts meet current environmental and regulatory requirements for lead-free and restricted substance compliance.

Q: What is the moisture sensitivity level for these connectors?

A: Both the 535677-5 and 5535677-5 carry MSL 1 (Unlimited) rating, indicating unlimited shelf life without moisture control requirements. These connectors do not require special moisture-sensitive device handling procedures.

Q: Can these connectors be used in high-reliability applications?

A: Both connectors are suitable for applications requiring reliable board-to-board connections within the specified operating temperature range. The phosphor bronze contact material and solder termination provide stable electrical performance. Specific application suitability depends on individual circuit requirements and environmental conditions.
