Part Overview

The TE Connectivity AMP Connectors 535676-5 is a 6 Position Receptacle Connector with 0.100" (2.54mm) pitch, designed for through-hole, right-angle board-to-board applications. This connector features gold-plated mating contacts and tin-lead post finish, operating across -55°C to 125°C. The part is classified as obsolete, necessitating identification of equivalent and substitute components for ongoing design and procurement requirements. Active alternatives are available that maintain functional compatibility while offering improved product status and compliance certifications.

Substiute Parts

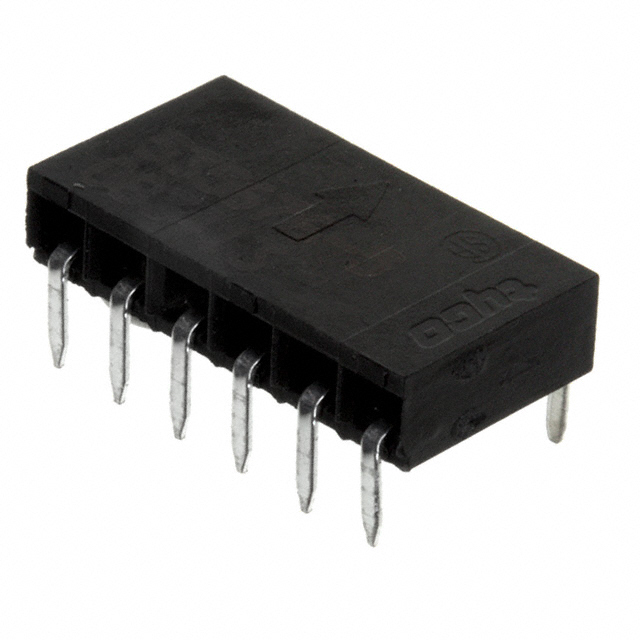

535676-5

TE Connectivity AMP ConnectorsIn Stock: 905535676-5 Datasheet

Current PartRFQ

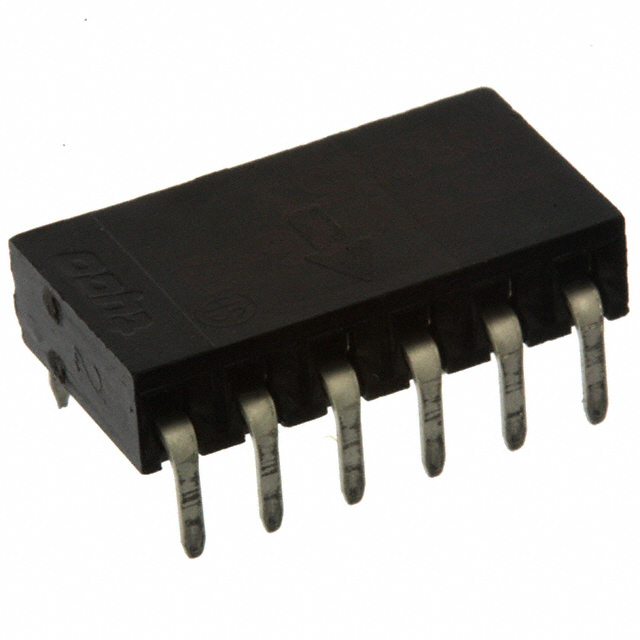

5535676-5

TE Connectivity AMP ConnectorsIn Stock: 17835535676-5 Datasheet

DirectRFQ

0901481312

MolexIn Stock: 10060901481312 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the 535676-5 is based on the following critical parameters that determine functional compatibility:

Direct Equivalent Criteria:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (6)
• Pitch - mating (0.100" / 2.54mm)
• Mounting type (Through Hole, Right Angle)
• Termination method (Solder)
• Contact finish - mating (Gold)
• Insulation material (Polyester, Glass Filled)
• Contact material (Phosphor Bronze)

Substitute Part 5535676-5 meets all direct equivalent criteria. This part is the active production variant of the base product number 5535676, differing only in post finish composition (tin versus tin-lead) and contact finish thickness specifications. The 5535676-5 maintains identical mechanical and electrical mating characteristics while offering RoHS compliance and active product status.

Substitute Part 0901481312 is a similar-category part from Molex that shares the same connector type, contact type, pitch, mounting type, termination, mating contact finish, insulation material, and contact material. However, this part differs in position count (12 versus 6), operating temperature maximum (105°C versus 125°C), and includes specified current and voltage ratings. This part functions as a higher-capacity alternative for applications where additional positions are acceptable.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Same Position Count):

The 5535676-5 is the primary substitute for the obsolete 535676-5. Both parts maintain identical mechanical and electrical mating specifications within the AMPMODU Mod II series. The 5535676-5 offers active product status, ensuring long-term availability and supply chain stability. The transition from tin-lead to tin post finish aligns with RoHS compliance requirements. The increased contact finish thickness on the post (150.0µin versus 50.0µin) provides enhanced durability. Operating temperature range remains -55°C to 125°C, preserving thermal performance characteristics.

For Higher-Capacity Applications:

The Molex 0901481312 serves as a substitute when application requirements permit increased position count. This part doubles the position capacity to 12 while maintaining 0.100" pitch spacing and identical mating contact specifications. The operating temperature maximum of 105°C is lower than the original part; applications requiring operation above 105°C are not suitable for this substitute. The 0901481312 includes specified current (3A) and voltage (350V) ratings, providing defined electrical performance parameters absent from the original part specification.

Compliance Considerations:

The 535676-5 carries RoHS non-compliant status with tin-lead post finish. The 5535676-5 achieves RoHS compliance through tin post finish modification. The 0901481312 achieves ROHS3 compliance. For applications subject to RoHS regulatory requirements, the 5535676-5 or 0901481312 are appropriate selections.

Frequently Asked Questions (FAQ)

Q: Can the 5535676-5 be used as a direct replacement for the 535676-5?

A: Yes. The 5535676-5 is the active production equivalent of the obsolete 535676-5. Both parts share identical connector type, position count, pitch, mounting configuration, and mating contact specifications. The primary differences are product status (active versus obsolete), RoHS compliance, and post finish composition (tin versus tin-lead). Mechanical and electrical mating compatibility is maintained.

Q: What is the key difference between the 535676-5 and 5535676-5?

A: The 5535676-5 is the RoHS-compliant variant with tin post finish, while the 535676-5 uses tin-lead post finish. The 5535676-5 also features increased contact finish thickness on the post (150.0µin versus 50.0µin). Both parts operate across -55°C to 125°C and maintain identical 6-position, 0.100" pitch specifications.

Q: Can the Molex 0901481312 replace the TE Connectivity 535676-5?

A: The 0901481312 is a similar-category substitute with compatible mating characteristics but differs in position count (12 versus 6) and maximum operating temperature (105°C versus 125°C). This part is suitable only for applications where the additional positions are acceptable and operating temperature does not exceed 105°C.

Q: What packaging options are available for these parts?

A: The 535676-5 packaging is not specified. The 5535676-5 is supplied in bulk packaging. The 0901481312 is supplied in tube packaging. Packaging selection depends on procurement volume and handling requirements.

Q: Are all three parts RoHS compliant?

A: No. The 535676-5 is RoHS non-compliant. The 5535676-5 is RoHS compliant. The 0901481312 is ROHS3 compliant. For applications requiring RoHS compliance, the 5535676-5 or 0901481312 must be selected.

Q: What is the operating temperature range for each part?

A: The 535676-5 and 5535676-5 both operate from -55°C to 125°C. The 0901481312 operates from -55°C to 105°C. Applications requiring operation above 105°C are not compatible with the Molex part.

Q: Do these parts have specified electrical ratings?

A: The 535676-5 and 5535676-5 do not include specified current or voltage ratings in their documentation. The 0901481312 specifies 3A current rating and 350V voltage rating.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
