TE Connectivity 535653-1 PCMCIA Card Connector Equivalent & Substitute Parts

Part Overview

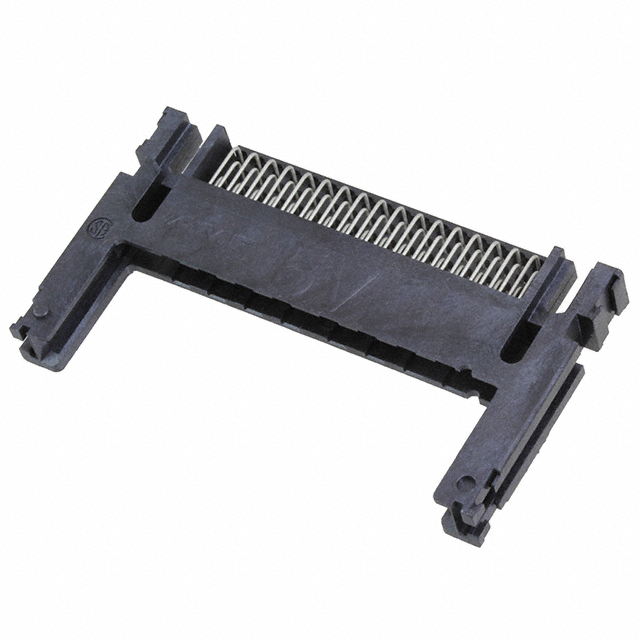

The TE Connectivity 535653-1 is a 68-position PCMCIA card connector designed for through-hole, right-angle mounting applications. This connector features push-in/pull-out insertion and removal methodology with gold-plated contacts and integrated card guides. The part is classified as obsolete, necessitating identification of active equivalent components for ongoing design support and procurement requirements. The substitute part maintains functional and mechanical compatibility while offering improved product status and compliance characteristics.

Substiute Parts

535653-1

TE Connectivity AMP ConnectorsIn Stock: 740535653-1 Datasheet

Current PartRFQ

5535653-1

TE Connectivity AMP ConnectorsIn Stock: 27105535653-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 535653-1 with the 5535653-1 is based on strict equivalence across all critical electrical and mechanical parameters. Both connectors share identical specifications for card type (PCMCIA), position count (68), insertion/removal method (push-in/pull-out), mounting configuration (through-hole, right-angle), board height (0.275"), contact finish (gold), contact finish thickness (30.0µin), and moisture sensitivity rating (MSL 1). The substitute part maintains full mechanical and electrical compatibility while differing in product status (active versus obsolete) and regulatory compliance posture. The substitution is valid for applications requiring direct form, fit, and function replacement.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 5535653-1 serves as the direct functional equivalent to the obsolete 535653-1 PCMCIA connector. Selection of the substitute part is supported by the following engineering criteria:

Product Status: The 5535653-1 maintains active product status, ensuring ongoing manufacturer support, availability, and supply chain continuity. The 535653-1 is classified as obsolete, limiting future procurement options.

Regulatory Compliance: The 5535653-1 is ROHS3 compliant and REACH unaffected, meeting current environmental and hazardous substance regulations. The 535653-1 is RoHS non-compliant with undefined REACH status, presenting compliance risk in regulated applications.

Electrical and Mechanical Equivalence: All critical parameters—card type, position count, insertion method, mounting configuration, board height, contact finish, and moisture sensitivity—are identical between the two parts, ensuring direct substitution without design modification.

Inventory and Availability: The 5535653-1 is available in higher inventory quantities (2608 pieces) compared to the 535653-1 (663 pieces), supporting procurement reliability.

Frequently Asked Questions (FAQ)

Q: Can the 5535653-1 be used as a direct replacement for the 535653-1 in existing designs?

A: Yes. The 5535653-1 is electrically and mechanically equivalent to the 535653-1 across all specified parameters, including position count, mounting type, board height, contact finish, and insertion method. No design modification is required for direct substitution.

Q: What is the primary reason for substituting the 535653-1?

A: The 535653-1 is classified as obsolete, limiting manufacturer support and long-term availability. The 5535653-1 is an active product offering improved supply chain continuity and regulatory compliance.

Q: Are there differences in packaging between these parts?

A: Yes. The 535653-1 packaging is not specified in available documentation. The 5535653-1 is supplied in bulk packaging. Packaging differences do not affect electrical or mechanical compatibility; they relate only to order quantity and handling.

Q: Does the 5535653-1 meet current environmental regulations?

A: Yes. The 5535653-1 is ROHS3 compliant and REACH unaffected, meeting current environmental and hazardous substance directives. The 535653-1 is RoHS non-compliant with undefined REACH status.

Q: Are the contact specifications identical between these connectors?

A: Yes. Both parts feature gold contact finish with 30.0µin (0.76µm) thickness, ensuring equivalent electrical performance and contact reliability.

Q: What is the moisture sensitivity rating for both parts?

A: Both the 535653-1 and 5535653-1 carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints for storage or handling.

Q: Can the 5535653-1 be used in applications originally designed for the 535653-1?

A: Yes. The 5535653-1 maintains identical form, fit, and function across all specified parameters, enabling direct application compatibility without design changes or re-qualification.
