TE Connectivity AMP Connectors 53424-1 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 53424-1 is an insulated ring terminal connector designed for circular stud applications. This component is classified as a Circular Ring Terminal with an 8 stud configuration, rated for 10-12 AWG wire gauges, and features crimp termination. The part is currently Active in product status with 1007 pieces available in inventory.

Ring terminal connectors are essential components in electrical assemblies where secure, permanent connections to studs or bolts are required. Substitute parts become necessary when original inventory is depleted, when alternative compliance certifications are required, or when design revisions necessitate updated part specifications.

Substiute Parts

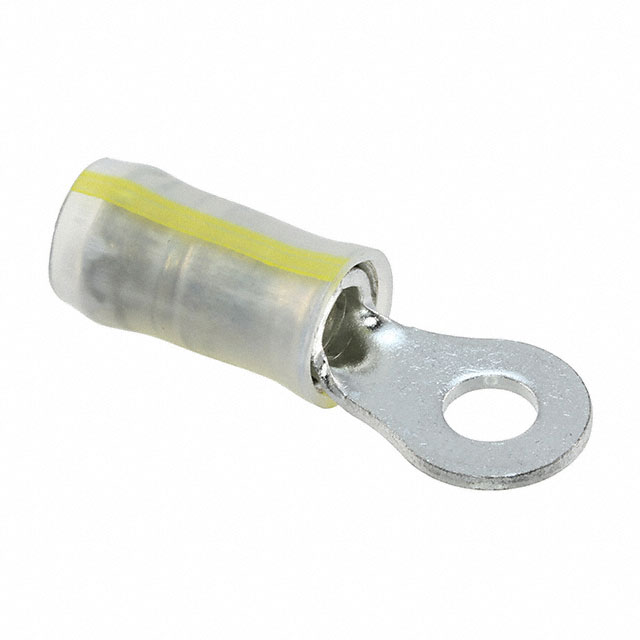

53424-1

TE Connectivity AMP ConnectorsIn Stock: 109753424-1 Datasheet

Current PartRFQ

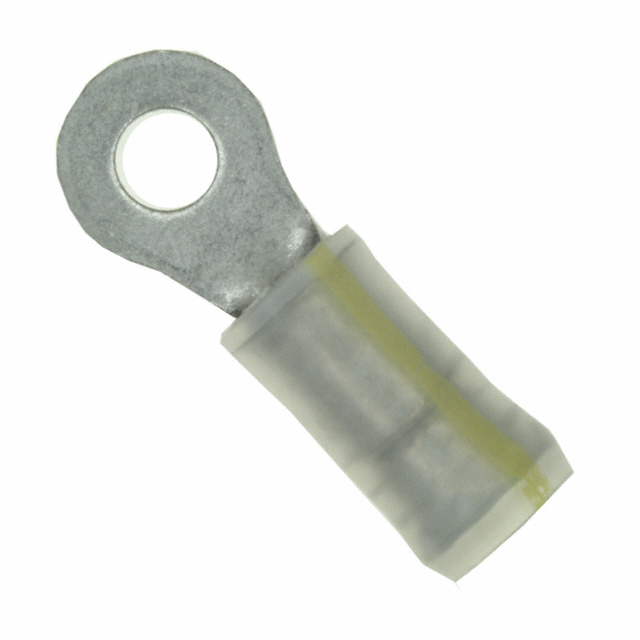

696424-5

TE Connectivity AMP ConnectorsIn Stock: 5133696424-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 53424-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Circular
• Stud/Tab Size: 8 Stud
• Wire Gauge: 10-12 AWG
• Termination Method: Crimp
• Insulation Status: Insulated
• Contact Material: Copper
• Series: PIDG
• Mounting Type: Free Hanging (In-Line)
• Insulation Diameter: 0.150" ~ 0.230" (3.81mm ~ 5.84mm)
• Material - Insulation: Polyvinylidene Fluoride (PVDF)

Allowable Variations:

• Contact Finish: Tin-Lead or Tin
• Length - Overall: Within 0.005" (0.127mm) tolerance
• Thickness: Identical at 0.039" (0.99mm)
• Width - Outer Edges: Identical at 0.375" (9.53mm)
• Features: Radiation Resistant feature may be present or absent
• RoHS Status: Non-compliant or ROHS3 Compliant
• REACH Status: Affected or Vendor Undefined

The substitute part 696424-5 meets all mandatory matching parameters and represents a direct functional equivalent with allowable variations in contact finish and regulatory compliance status.

Parameter Comparison

Engineering Selection Recommendations

53424-1 Selection Criteria: The 53424-1 is appropriate for applications where RoHS non-compliant components are acceptable and where tin-lead contact finish is specified or required. This part maintains Active product status and is currently available with substantial inventory (1007 pieces).

696424-5 Selection Criteria: The 696424-5 is appropriate for applications requiring ROHS3 compliance. This substitute provides identical functional performance with a tin contact finish instead of tin-lead. The substitute part carries higher inventory availability (5081 pieces) and meets current regulatory compliance standards. Both parts share identical electrical and mechanical characteristics within specified tolerances.

Compliance Considerations: The primary distinction between these parts is regulatory compliance status. The 53424-1 carries RoHS non-compliant designation, while 696424-5 is ROHS3 Compliant. Contact finish differs between tin-lead (53424-1) and tin (696424-5), which may affect corrosion resistance characteristics in specific environmental conditions. Both parts are classified as Moisture Sensitivity Level 1 (Unlimited) and carry identical ECCN and HTSUS classifications.

Frequently Asked Questions (FAQ)

Q: Can 696424-5 be used as a direct replacement for 53424-1 in all applications?

A: The 696424-5 is functionally equivalent to 53424-1 across all critical electrical and mechanical parameters. The primary differences are contact finish (tin versus tin-lead) and RoHS compliance status. Substitution is valid where these variations are acceptable to the application requirements.

Q: What is the significance of the contact finish difference between tin-lead and tin?

A: Contact finish affects corrosion resistance and long-term reliability in specific environmental conditions. Tin-lead (53424-1) and tin (696424-5) finishes have different oxidation characteristics. Selection between these finishes depends on application environment and performance requirements.

Q: Are both parts available in the same packaging format?

A: Both 53424-1 and 696424-5 are supplied in Bulk packaging. Inventory availability differs: 53424-1 has 1007 pieces in stock, while 696424-5 has 5081 pieces in stock.

Q: What does ROHS3 Compliant mean for 696424-5?

A: ROHS3 Compliance indicates the part meets Restriction of Hazardous Substances Directive 3 requirements, restricting the use of specific hazardous materials in electrical and electronic equipment. The 53424-1 is RoHS non-compliant and does not meet these restrictions.

Q: Are the dimensional specifications identical between these parts?

A: Dimensional specifications are nearly identical. Length-Overall differs by 0.005" (0.13mm): 53424-1 measures 1.083" (27.51mm) while 696424-5 measures 1.088" (27.64mm). This variation is within standard manufacturing tolerances and does not affect functional compatibility.

Q: Do both parts use the same insulation material?

A: Yes, both parts use Polyvinylidene Fluoride (PVDF) insulation with identical insulation diameter specifications of 0.150" ~ 0.230" (3.81mm ~ 5.84mm).

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
