TE Connectivity AMP Connectors 532956-3 Equivalent & Substitute Parts

Part Overview

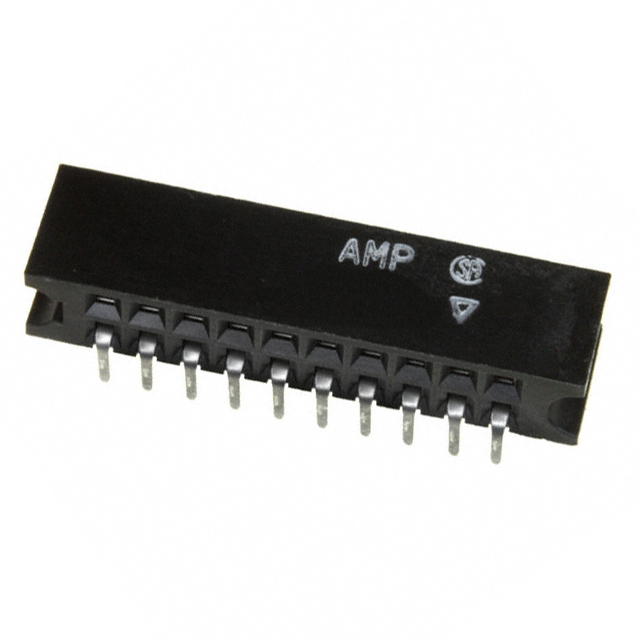

The TE Connectivity AMP Connectors 532956-3 is a 20 Position Receptacle Connector with 0.100" (2.54mm) pitch, designed for Through Hole, Right Angle board-to-board applications. This connector features gold-plated mating contacts, tin-lead plated posts, and push-pull fastening in the AMPMODU Mod II series. The part is currently Active in product status with 1115 pieces in stock. Substitute parts are identified when the primary part becomes unavailable, discontinued, or when alternative configurations meet identical electrical and mechanical specifications for rectangular connector applications.

Substiute Parts

532956-3

TE Connectivity AMP ConnectorsIn Stock: 1164532956-3 Datasheet

Current PartRFQ

5-532956-3

TE Connectivity AMP ConnectorsIn Stock: 8975-532956-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 532956-3 are identified based on strict equivalence of the following critical parameters:

• Connector Type and Contact Type: Receptacle with Female Socket contacts
• Position Count and Configuration: 20 positions in 2 rows
• Pitch and Row Spacing: 0.100" (2.54mm) mating pitch and row spacing
• Mounting and Termination: Through Hole, Right Angle orientation with Solder termination
• Fastening Mechanism: Push-Pull fastening type
• Contact Materials and Finishes: Phosphor Bronze base material with Gold mating surface and Tin or Tin-Lead post finish
• Physical Dimensions: Insulation height of 0.238" (6.05mm) and contact post length of 0.115" (2.92mm)
• Series Compatibility: AMPMODU Mod II series designation

The substitute part 5-532956-3 maintains full electrical and mechanical compatibility with the primary part number 532956-3 across all specified parameters. Differences in product status, compliance certifications, and inventory availability do not affect functional interchangeability in rectangular connector applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (532956-3)

The TE Connectivity 532956-3 is the recommended selection for new designs and applications requiring active product status. This part is currently Active with full inventory availability of 1115 pieces. The part is RoHS non-compliant with Tin-Lead post finish. Selection of this part is appropriate for applications where RoHS compliance is not a regulatory requirement and where Tin-Lead termination is acceptable.

Substitute Part Selection (5-532956-3)

The 5-532956-3 serves as a functional equivalent for applications where ROHS3 compliance is required. This substitute maintains identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch, mounting configuration, and contact materials. The primary distinction is the post contact finish, which is Tin rather than Tin-Lead, and full ROHS3 compliance certification. This part is currently discontinued at DiGi Electronics but remains available with 821 pieces in stock. Selection of this substitute is appropriate for applications with RoHS3 compliance mandates where the Tin post finish is acceptable.

Compliance Considerations

The primary part (532956-3) carries RoHS non-compliant status, while the substitute (5-532956-3) is ROHS3 compliant. Both parts maintain identical Moisture Sensitivity Level (MSL) of 1 (Unlimited) and share the same ECCN (EAR99) and HTSUS (8536.69.4040) classifications. REACH status differs between the parts, with the primary part marked as REACH Affected and the substitute marked as Vendor Undefined.

Frequently Asked Questions (FAQ)

Q: Are the 532956-3 and 5-532956-3 electrically and mechanically interchangeable?

A: Yes. Both parts are functionally equivalent rectangular connectors with identical specifications for connector type, position count, pitch, mounting configuration, termination method, and fastening mechanism. The parts are directly interchangeable in board-to-board applications requiring 20-position, 0.100" pitch receptacle connectors with right-angle through-hole mounting.

Q: What is the difference between the Tin-Lead post finish on the 532956-3 and the Tin post finish on the 5-532956-3?

A: The primary part (532956-3) features Tin-Lead plated posts, while the substitute (5-532956-3) features Tin plated posts. Both maintain the same contact finish thickness of 50.0µin (1.27µm). The post finish difference reflects the RoHS compliance status of each part, with Tin-Lead associated with RoHS non-compliant products and Tin associated with ROHS3 compliant products.

Q: When should I select the 5-532956-3 substitute over the primary 532956-3?

A: Select the 5-532956-3 substitute when your application or regulatory environment requires ROHS3 compliance certification. The substitute maintains full functional equivalence while meeting RoHS3 requirements. The primary part (532956-3) should be selected for applications where RoHS compliance is not mandated and where Tin-Lead termination is acceptable.

Q: What is the product status difference between these two parts?

A: The primary part (532956-3) is Active with full ongoing availability. The substitute part (5-532956-3) is Discontinued at DiGi Electronics, indicating it is no longer actively distributed through that channel. However, both parts remain available through inventory stock, with the primary part offering 1115 pieces and the substitute offering 821 pieces.

Q: Are there any packaging differences between the 532956-3 and 5-532956-3?

A: The primary part (532956-3) is packaged in Tube format. The substitute part (5-532956-3) does not specify packaging information in available documentation. Confirm packaging requirements with your supplier before ordering.

Q: Do both parts meet the same moisture sensitivity and export control requirements?

A: Yes. Both parts share identical Moisture Sensitivity Level (MSL) of 1 (Unlimited), indicating no moisture sensitivity restrictions. Both parts carry the same ECCN classification (EAR99) and HTSUS code (8536.69.4040). REACH status differs, with the primary part marked as REACH Affected and the substitute marked as Vendor Undefined.

Q: Can I use the 5-532956-3 as a direct replacement in existing designs using the 532956-3?

A: Yes, the 5-532956-3 is a direct replacement for the 532956-3 in terms of electrical and mechanical function. The connector specifications, dimensions, and performance characteristics are identical. Verify that your application or regulatory requirements align with the ROHS3 compliance status and Tin post finish of the substitute before implementation.
