TE Connectivity AMP Connectors 532600-4 Card Edge Connector Equivalent & Substitute Parts

Part Overview

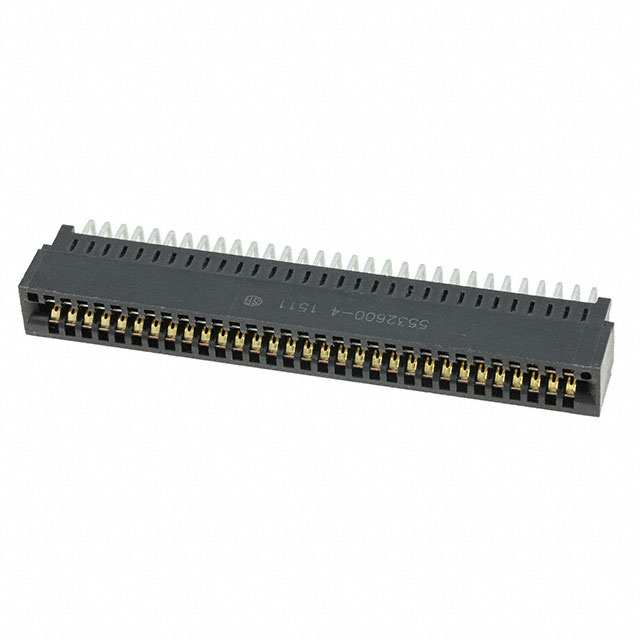

The TE Connectivity AMP Connectors 532600-4 is a 62-position female card edge connector from the Standard Edge II series. This connector is designed for through-hole, right-angle mounting applications with dual-edge configuration and 0.100" (2.54mm) pitch spacing. The connector features gold-plated phosphor bronze contacts and operates across a temperature range of -55°C to 85°C.

The 532600-4 is classified as an active product. Identifying equivalent and substitute parts is necessary to support procurement flexibility, manage supply chain continuity, and accommodate specific packaging or compliance requirements in production environments.

Substiute Parts

532600-4

TE Connectivity AMP ConnectorsIn Stock: 682532600-4 Datasheet

Current PartRFQ

5532600-4

TE Connectivity AMP ConnectorsIn Stock: 10225532600-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 532600-4 is determined by strict equivalence across all critical electrical and mechanical parameters. The following parameters must match identically for a part to function as a direct substitute:

• Number of positions: 62
• Pitch spacing: 0.100" (2.54mm)
• Gender: Female
• Number of rows: 2
• Card type: Non Specified - Dual Edge
• Card thickness tolerance: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
• Mounting type: Through Hole, Right Angle
• Termination method: Solder
• Contact material: Phosphor Bronze
• Contact finish: Gold
• Contact finish thickness: 15.0µin (0.38µm)
• Operating temperature range: -55°C ~ 85°C
• Insulation material: Polyester, Glass Filled
• Color: Black
• Series: Standard Edge II

The substitute part identified meets all these criteria and differs only in packaging configuration and regulatory compliance status.

Parameter Comparison

Engineering Selection Recommendations

Both the 532600-4 and 5532600-4 are active products from TE Connectivity AMP Connectors and are electrically and mechanically identical. Selection between these parts should be based on the following criteria:

RoHS Compliance: The 5532600-4 is ROHS3 compliant, while the 532600-4 is RoHS non-compliant. Applications subject to RoHS regulations or customer specifications requiring RoHS compliance must use the 5532600-4.

REACH Compliance: The 5532600-4 is REACH unaffected, while the 532600-4 is REACH affected. Applications requiring REACH compliance or operating in regions with REACH restrictions should specify the 5532600-4.

Packaging Configuration: The 5532600-4 is supplied in bulk packaging, while the 532600-4 packaging is not specified. Bulk packaging may be preferred for high-volume production environments or when specific packaging requirements are mandated.

Inventory Availability: The 5532600-4 has 994 pieces in stock, while the 532600-4 has 654 pieces in stock. Procurement decisions may consider current inventory levels for supply chain optimization.

Both parts share identical electrical performance, mechanical dimensions, and operational characteristics. The choice between them is determined by regulatory compliance requirements and packaging specifications rather than functional performance.

Frequently Asked Questions (FAQ)

Q: Are the 532600-4 and 5532600-4 electrically interchangeable?

A: Yes. Both connectors have identical electrical specifications, including 62 positions, 0.100" pitch, gold-plated phosphor bronze contacts, and operating temperature range of -55°C to 85°C. They perform identically in circuit applications.

Q: What is the primary difference between these two parts?

A: The primary differences are regulatory compliance status and packaging. The 5532600-4 is ROHS3 compliant and REACH unaffected, while the 532600-4 is RoHS non-compliant and REACH affected. The 5532600-4 is supplied in bulk packaging.

Q: Can I use the 532600-4 in an application requiring RoHS compliance?

A: No. The 532600-4 is RoHS non-compliant. Applications with RoHS requirements must use the 5532600-4, which is ROHS3 compliant.

Q: Are the mechanical dimensions identical between these connectors?

A: Yes. Both connectors have identical mechanical specifications: 62 positions, 2 rows, 0.100" pitch, dual-edge configuration, card thickness tolerance of 0.054" to 0.070", through-hole right-angle mounting, and black polyester glass-filled insulation.

Q: What is the card thickness tolerance for these connectors?

A: Both connectors accept cards with thickness between 0.054" and 0.070" (1.37mm to 1.78mm).

Q: Can these connectors be used in high-temperature applications?

A: Both connectors operate across a temperature range of -55°C to 85°C. Applications requiring operation outside this range are not suitable for either connector.

Q: What is the contact finish thickness specification?

A: Both connectors feature gold contact finish with a thickness of 15.0µin (0.38µm).

Q: Does packaging affect the electrical or mechanical performance of these connectors?

A: No. Packaging differences do not affect electrical or mechanical performance. Packaging is a logistics and supply chain consideration only.
