TE Connectivity 53241-2 Spade Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity 53241-2 is an insulated spade terminal connector designed for crimp termination of 16-22 AWG wire. This red 8 stud terminal is part of the Plasti-Grip series and is classified as an active product. The 53241-2 is supplied in Cut Tape (CT) packaging and maintains ROHS3 compliance with MSL 1 rating. Substitute parts are identified when packaging format differs, inventory availability requires alternatives, or equivalent electrical and mechanical specifications are required for system integration.

Substiute Parts

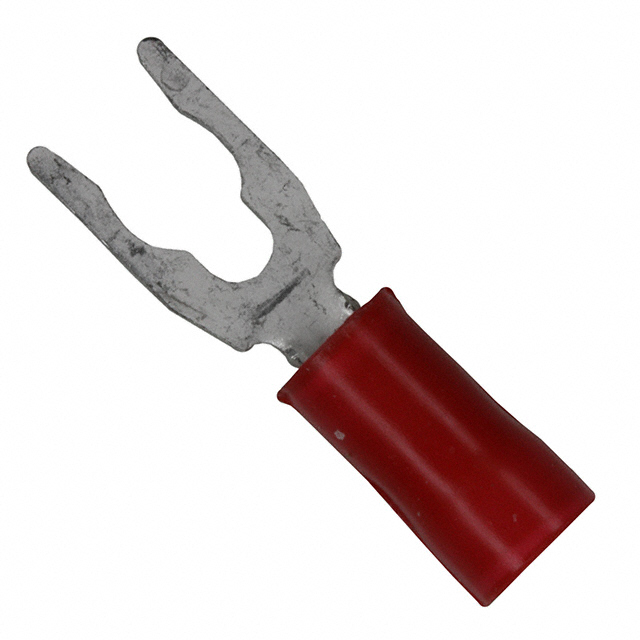

53241-2

TE Connectivity AMP ConnectorsIn Stock: 567153241-2 Datasheet

Current PartRFQ

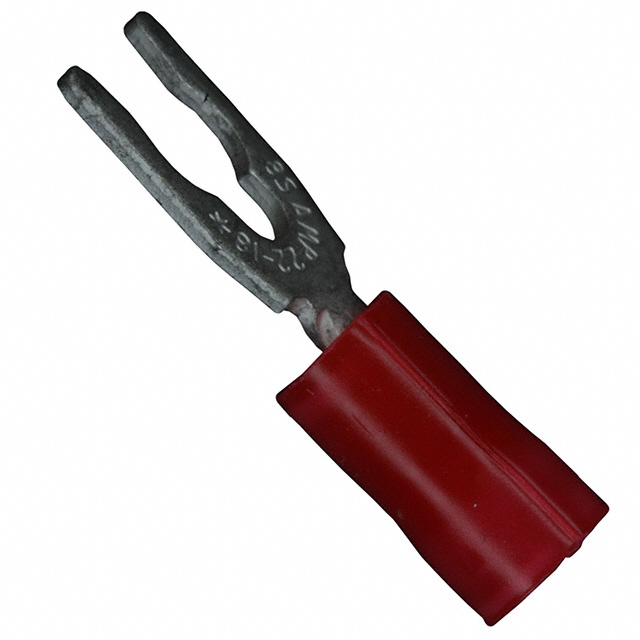

53241-1

TE Connectivity AMP ConnectorsIn Stock: 1054753241-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 53241-2 is determined by equivalence across the following critical parameters:

Wire gauge compatibility (16-22 AWG) ensures proper crimp contact and electrical performance. The 8 stud size establishes mechanical fit with mating connectors and circuit board terminals. Terminal type (Spring, Snap) and crimp termination method define the connection mechanism. Insulation specifications including PVC material and diameter range (0.105" ~ 0.140") ensure proper strain relief and environmental protection. Contact material (Brass) and finish (Tin) establish electrical conductivity and corrosion resistance. Physical dimensions including overall length (0.872"), width (0.244"), and tongue opening (0.164") determine mechanical fit within assemblies. RoHS3 compliance and MSL 1 rating confirm regulatory and environmental suitability.

The substitute part 53241-1 maintains identical electrical and mechanical specifications across all parameters listed above. The primary distinction is packaging format: 53241-2 is supplied in Cut Tape (CT) while 53241-1 is supplied in Bulk packaging. Both parts are manufactured by TE Connectivity AMP Connectors within the Plasti-Grip series and carry Active product status.

Parameter Comparison

Engineering Selection Recommendations

Both the 53241-2 and 53241-1 are active products manufactured by TE Connectivity AMP Connectors with full ROHS3 compliance and MSL 1 rating. Selection between these parts is based on packaging requirements and inventory availability rather than electrical or mechanical performance differences.

The 53241-2 in Cut Tape packaging is suitable for automated pick-and-place assembly operations and applications requiring controlled component dispensing. The 53241-1 in Bulk packaging is appropriate for high-volume manual assembly, kit assembly, or applications where packaging format does not constrain the assembly process.

Both parts are functionally equivalent for all electrical and mechanical applications within the 16-22 AWG wire gauge range and 8 stud terminal configuration. Selection should be determined by assembly methodology, supply chain requirements, and packaging compatibility with production equipment.

Frequently Asked Questions (FAQ)

Q: Are the 53241-2 and 53241-1 electrically identical?

A: Yes. Both parts are manufactured by TE Connectivity AMP Connectors with identical wire gauge (16-22 AWG), contact material (Brass with Tin finish), and electrical specifications. The only difference is packaging format.

Q: What is the difference between Cut Tape and Bulk packaging?

A: Cut Tape (CT) packaging supplies components on a continuous tape that is cut to length, suitable for automated assembly equipment. Bulk packaging supplies loose components in a container, suitable for manual assembly or kit assembly operations.

Q: Can I substitute 53241-1 for 53241-2 in my assembly?

A: Substitution is possible if your assembly process can accommodate Bulk packaging. The electrical and mechanical specifications are identical. Verify that your assembly equipment or manual process is compatible with the Bulk packaging format.

Q: Are both parts RoHS compliant?

A: Yes. Both 53241-2 and 53241-1 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity rating.

Q: What wire gauges are compatible with these terminals?

A: Both parts are rated for 16-22 AWG wire. Insulation diameter must fall within the range of 0.105" to 0.140" (2.67mm to 3.56mm) for proper crimp contact.

Q: What is the stud size for these terminals?

A: Both parts feature an 8 stud size, which determines compatibility with mating connectors and circuit board terminals designed for #8 studs.

Q: Are these terminals suitable for high-temperature applications?

A: The provided specifications do not include operating temperature range data. Consult TE Connectivity technical documentation for thermal performance characteristics.

Q: What is the contact material and finish?

A: Both parts use Brass contact material with Tin finish, providing electrical conductivity and corrosion resistance suitable for general-purpose electrical connections.
