Amphenol RF 531-40046 F Type Coaxial Connector Equivalent & Substitute Parts

Part Overview

The Amphenol RF 531-40046 is an F Type Connector Jack with female socket configuration, designed for 75 ohm coaxial applications. This component functions as a panel-mount, through-hole solder termination connector suitable for RF and video signal transmission up to 3 GHz. The part is classified as obsolete, making identification of equivalent substitute components necessary for ongoing system maintenance, repair, and new design implementations where legacy compatibility is required.

Substiute Parts

531-40046

Amphenol RFIn Stock: 840531-40046 Datasheet

Current PartRFQ

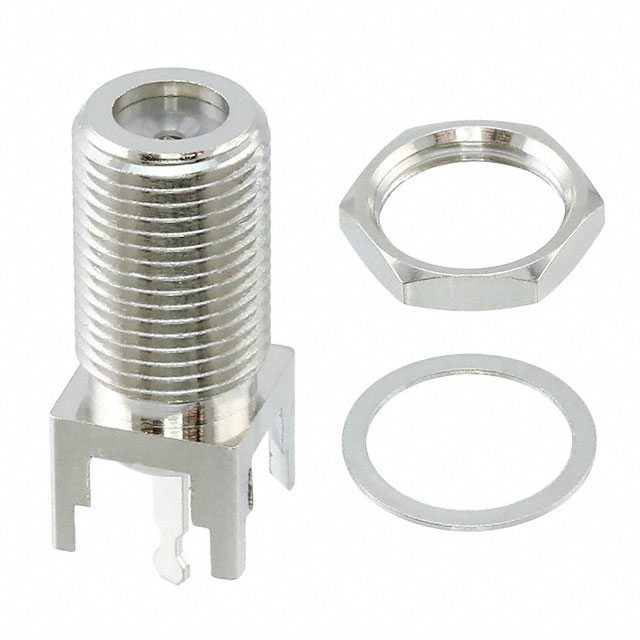

VF320

Cinch Connectivity SolutionsIn Stock: 1719VF320 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Amphenol RF 531-40046 is based on the following critical parameters that must align across equivalent components:

Primary Substitution Criteria:

• Connector Style: F Type (mandatory match)
• Connector Type: Jack, Female Socket (mandatory match)
• Impedance: 75 Ohms (mandatory match)
• Mounting Type: Panel Mount, Through Hole (mandatory match)
• Fastening Type: Threaded (mandatory match)
• Number of Ports: 1 (mandatory match)

Secondary Compatibility Parameters:

• Shield Termination: Solder (must be compatible with PCB assembly process)
• RoHS Compliance: Required for regulatory alignment
• Moisture Sensitivity Level: 1 (Unlimited) for storage and handling compatibility

The Cinch Connectivity Solutions VF320 meets all primary substitution criteria. Variations in contact termination method (solder tab versus solder), body materials, and frequency maximum rating represent acceptable engineering trade-offs within the 75 ohm F Type jack category.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Cinch Connectivity Solutions VF320

The VF320 is the qualified equivalent substitute for the obsolete Amphenol RF 531-40046. Both components are RoHS compliant and carry identical moisture sensitivity ratings, ensuring regulatory and environmental compatibility.

Selection Basis:

1. Functional Equivalence: The VF320 maintains all critical F Type 75 ohm jack specifications required for panel-mount through-hole PCB applications.

2. Active Product Status: The VF320 is actively manufactured by Cinch Connectivity Solutions, providing assured supply chain continuity and technical support compared to the obsolete 531-40046.

3. Regulatory Alignment: Both components meet RoHS compliance requirements and carry EAR99 export classification.

4. Application-Specific Considerations:

   • For applications operating at frequencies up to 2 GHz, the VF320 is directly substitutable without performance degradation.
   • For applications requiring operation above 2 GHz up to 3 GHz, the frequency limitation of the VF320 must be evaluated against actual system requirements.
   • The extended operating temperature range of the VF320 (-55°C to 85°C versus -40°C to 60°C) provides additional thermal margin for demanding environments.

5. Mechanical Integration: The solder tab termination of the VF320 requires PCB layout verification to ensure compatibility with existing through-hole solder pad configurations designed for the 531-40046.

Frequently Asked Questions (FAQ)

Q: Can the Cinch VF320 be used as a direct replacement for the Amphenol RF 531-40046 in all applications?

A: The VF320 is functionally equivalent for applications operating at frequencies up to 2 GHz. Applications requiring operation between 2 GHz and 3 GHz must evaluate whether the frequency limitation impacts system performance. Both components share identical 75 ohm impedance, F Type jack configuration, and panel-mount through-hole mounting specifications.

Q: What is the difference between solder and solder tab termination?

A: The 531-40046 uses solder termination, while the VF320 uses solder tab termination. Both are solder-based connection methods. The solder tab variant of the VF320 provides a defined contact point for PCB attachment. PCB layout must accommodate the specific termination geometry of the selected component.

Q: Are there any compliance or certification differences between these parts?

A: Both the 531-40046 and VF320 are RoHS compliant with identical moisture sensitivity levels (MSL 1 - Unlimited). Both carry EAR99 export classification and identical HTSUS codes, ensuring regulatory equivalence.

Q: Why is the 531-40046 listed as obsolete?

A: The Amphenol RF 531-40046 is classified as obsolete, indicating it is no longer in active production. The VF320 from Cinch Connectivity Solutions is actively manufactured and represents the current equivalent solution for new designs and legacy system maintenance.

Q: What is the impact of the different mating cycle ratings?

A: The 531-40046 is rated for 500 mating cycles, while the VF320 is rated for 200 mating cycles. For applications involving frequent connector mating and unmating, the higher cycle rating of the 531-40046 may be preferable. However, for typical fixed installation applications, the 200-cycle rating of the VF320 is generally sufficient.

Q: How do the operating temperature ranges affect component selection?

A: The VF320 operates from -55°C to 85°C, providing a wider temperature envelope than the 531-40046 (-40°C to 60°C). For applications in extreme thermal environments, the VF320 offers extended operational capability. For standard industrial and consumer applications within the -40°C to 60°C range, both components are equivalent.

Q: What packaging considerations apply to these components?

A: The 531-40046 is supplied with 2 pieces per connector (1 connector, 1 nut). The VF320 is supplied with 3 pieces per connector (1 connector, 1 nut, 1 washer) in bulk packaging. The additional washer in the VF320 package provides an extra component for assembly flexibility.
