TE Connectivity AMP Connectors 53125-1 Equivalent & Substitute Parts

Part Overview

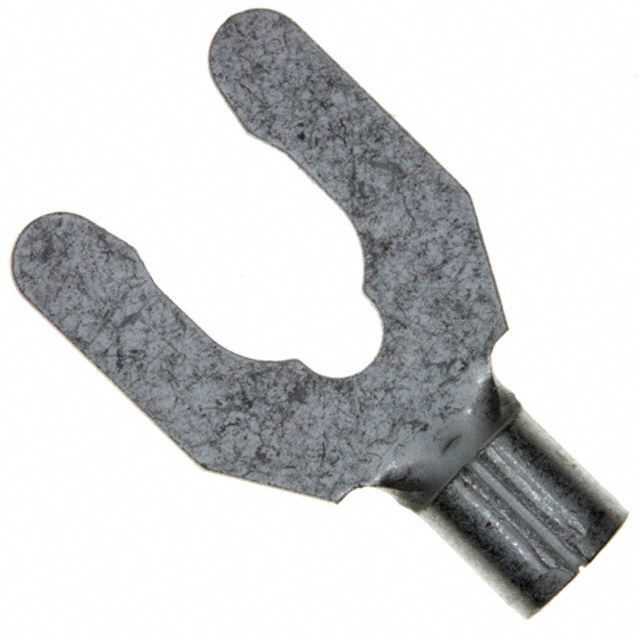

The TE Connectivity AMP Connectors 53125-1 is a 10 stud spade terminal connector designed for crimp termination of 14-16 AWG wire. This non-insulated terminal features a phosphor bronze contact material with tin finish and is part of the Solistrand series. The connector utilizes a spring snap terminal type with brazed seam construction and serrated termination for secure wire attachment. The product is currently active and maintains full inventory availability. Substitute parts are identified to provide alternative packaging options and sourcing flexibility while maintaining identical electrical and mechanical specifications.

Substiute Parts

53125-1

TE Connectivity AMP ConnectorsIn Stock: 114153125-1 Datasheet

Current PartRFQ

53125-2

TE Connectivity AMP ConnectorsIn Stock: 2905253125-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 53125-2 is functionally equivalent to the main part 53125-1 based on the following critical parameters that determine substitutability:

Electrical Parameters:

• Stud size: 10 stud (identical connection interface)
• Wire gauge range: 14-16 AWG (identical termination capability)
• Contact material: Phosphor bronze (identical electrical properties)
• Contact finish: Tin (identical surface characteristics)

Mechanical Parameters:

• Terminal type: Spring, snap (identical mechanical engagement)
• Termination method: Crimp (identical installation process)
• Overall dimensions: 0.685" length, 0.406" width (identical form factor)
• Mounting type: Free hanging in-line (identical installation configuration)

Material & Construction:

• Insulation: Non-insulated (identical configuration)
• Features: Brazed seam, serrated termination (identical construction)

Compliance & Environmental:

• RoHS compliance: Both parts meet RoHS requirements
• MSL rating: 1 (Unlimited) for both parts
• ECCN classification: EAR99 for both parts

The primary difference between these parts is packaging format: 53125-1 is supplied in bulk packaging, while 53125-2 is supplied in cut tape (CT) packaging. This distinction affects inventory management and automated assembly processes but does not alter the electrical or mechanical performance of the terminal connector.

Parameter Comparison

Engineering Selection Recommendations

Both the 53125-1 and 53125-2 are active products from TE Connectivity AMP Connectors and maintain full compliance with RoHS requirements. The selection between these parts is determined by packaging and supply chain requirements rather than electrical or mechanical performance criteria.

53125-1 (Bulk Packaging): Select this part number when bulk quantities are required for manual assembly operations or when inventory management systems accommodate loose component storage. This packaging format provides cost efficiency for high-volume applications with flexible assembly timelines.

53125-2 (Cut Tape Packaging): Select this part number when automated assembly equipment is utilized or when controlled component dispensing is required. Cut tape packaging integrates with pick-and-place machinery and reduces component handling during assembly processes. This format is preferred for high-speed production environments.

Both parts carry identical electrical specifications, mechanical dimensions, and compliance certifications. The choice between them is a logistics and manufacturing process decision, not a technical performance decision. Inventory availability should be evaluated based on current stock levels: 53125-1 maintains 1,073 pieces in stock, while 53125-2 maintains 29,006 pieces in stock.

Frequently Asked Questions (FAQ)

Q: Can 53125-2 be used as a direct replacement for 53125-1 in existing assemblies?

A: Yes. The 53125-2 is electrically and mechanically identical to 53125-1. Both parts feature the same 10 stud configuration, 14-16 AWG wire gauge capacity, phosphor bronze contact material with tin finish, and crimp termination method. The only difference is packaging format (cut tape versus bulk), which does not affect the terminal's performance in the application.

Q: What is the significance of the packaging difference between these parts?

A: Packaging format affects supply chain logistics and assembly processes. Bulk packaging (53125-1) is suitable for manual assembly and applications where components are stored loose. Cut tape packaging (53125-2) is designed for automated pick-and-place assembly equipment and provides controlled component dispensing. The terminal connector itself is identical in both formats.

Q: Are both parts RoHS compliant?

A: Yes. The 53125-1 is RoHS3 compliant, and the 53125-2 is RoHS compliant. Both parts meet regulatory requirements for hazardous substance restrictions. The RoHS3 designation for 53125-1 indicates compliance with the most current RoHS directive version.

Q: What wire gauges are compatible with these spade terminals?

A: Both 53125-1 and 53125-2 are rated for 14-16 AWG wire. This range accommodates standard electrical wiring applications within the specified gauge parameters. Wire gauge selection must match the terminal's crimp termination specifications.

Q: What is the stud size, and why is it important?

A: Both parts feature a 10 stud configuration. The stud size determines the connection interface and must match the receiving component (such as a connector block or terminal strip). The 10 stud size is a fixed specification that cannot be altered and must be verified during component selection.

Q: Can these terminals be used in high-temperature applications?

A: The provided specifications do not include temperature rating data. Component selection for temperature-sensitive applications requires verification of thermal performance specifications beyond the parameters listed in this reference.

Q: What does "serrated termination" mean?

A: Serrated termination refers to the textured surface on the crimp barrel of the terminal. This feature enhances the mechanical grip on the wire during the crimping process, improving connection reliability and reducing the risk of wire slippage after termination.

Q: Are these terminals suitable for automated assembly?

A: The 53125-2 in cut tape packaging is specifically designed for automated assembly equipment. The 53125-1 in bulk packaging is suitable for manual assembly processes. Both terminals use crimp termination, which requires appropriate crimping equipment regardless of packaging format.

Q: What is the MSL rating, and what does it indicate?

A: Both parts carry an MSL (Moisture Sensitivity Level) rating of 1, which indicates unlimited shelf life with no special moisture control requirements during storage or handling. This rating simplifies inventory management and reduces storage complexity.
