TE Connectivity AMP Connectors 530520-1 Equivalent & Substitute Parts

Part Overview

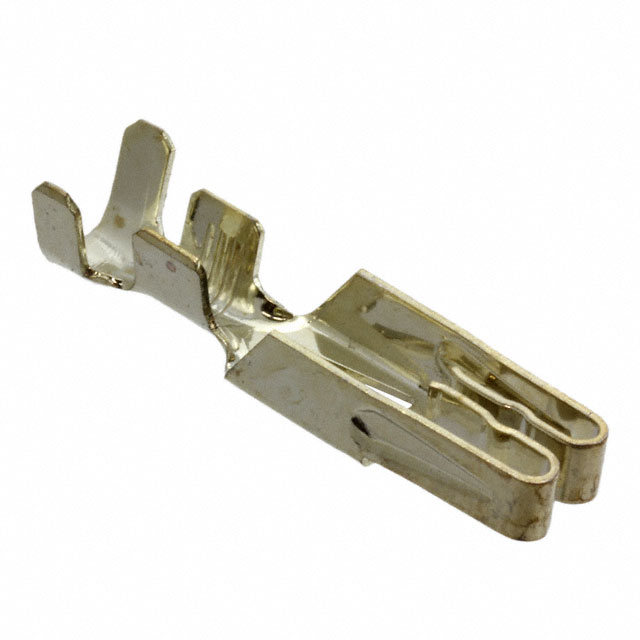

The TE Connectivity AMP Connectors 530520-1 is a Card Edge Connector classified as an Edge Terminal with non-gendered configuration. This component is designed for 10-12 AWG wire applications and utilizes crimp termination with tin-plated copper alloy contacts. The part is currently listed as obsolete, making identification of equivalent and substitute components essential for ongoing maintenance, repair, and legacy system support applications.

Substiute Parts

530520-1

TE Connectivity AMP ConnectorsIn Stock: 841530520-1 Datasheet

Current PartRFQ

5-530520-1

TE Connectivity AMP ConnectorsIn Stock: 9445-530520-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 530520-1 is determined by strict equivalence across the following critical parameters:

Wire gauge compatibility (10-12 AWG) ensures proper current-carrying capacity and mechanical fit within mating connectors. Contact termination method (crimp) must remain consistent to maintain assembly process compatibility and electrical performance. Contact material composition (copper alloy) and finish specification (tin at 15.0µin thickness) are essential for corrosion resistance and electrical conductivity. The non-gendered pin or socket configuration must be preserved to maintain connector interchangeability. Moisture sensitivity level (MSL 1) indicates unlimited shelf life and environmental tolerance.

The substitute part 5-530520-1 maintains identical specifications across all these critical parameters, establishing direct functional equivalence with the original 530520-1 component.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5-530520-1 provides direct functional equivalence to the original 530520-1 component. Both parts share identical electrical and mechanical specifications across all critical parameters including wire gauge, termination method, contact material, finish specification, and configuration type.

A key distinction exists in regulatory compliance status. The original 530520-1 carries a RoHS Status designation of "Not applicable," while the substitute part 5-530520-1 is ROHS3 Compliant. This compliance upgrade in the substitute part represents an advancement in environmental and regulatory adherence without modification to the component's core electrical or mechanical function.

Both parts are classified as obsolete products. The substitute part 5-530520-1 currently maintains higher inventory availability (849 pieces) compared to the original part (820 pieces), providing improved procurement reliability for legacy system applications.

Frequently Asked Questions (FAQ)

Q: Can 5-530520-1 be used as a direct replacement for 530520-1 in existing assemblies?

A: Yes. The substitute part 5-530520-1 maintains identical specifications across all critical electrical and mechanical parameters including wire gauge (10-12 AWG), contact termination (crimp), contact material (copper alloy), finish specification (tin at 15.0µin), and configuration (non-gendered). Direct substitution is supported without modification to assembly processes or mating connector interfaces.

Q: What is the significance of the ROHS3 Compliance designation on the substitute part?

A: The 5-530520-1 substitute part carries ROHS3 Compliant status, indicating compliance with the Restriction of Hazardous Substances Directive. The original 530520-1 carries a "Not applicable" RoHS status. This compliance upgrade in the substitute part reflects current environmental and regulatory standards without altering the component's electrical performance or mechanical compatibility.

Q: Are there any differences in contact finish or material composition between these parts?

A: No. Both the 530520-1 and 5-530520-1 utilize identical contact material (copper alloy) and finish specification (tin at 15.0µin thickness). Contact finish thickness directly impacts corrosion resistance and electrical conductivity, and this specification is maintained across both parts.

Q: What does the non-gendered pin or socket configuration mean for connector compatibility?

A: Non-gendered configuration indicates that the connector terminal does not have a defined male or female designation. This design allows the component to function in either orientation within compatible mating connectors, providing flexibility in assembly and reducing the need for orientation-specific variants.

Q: Why is Moisture Sensitivity Level (MSL) 1 important for these components?

A: MSL 1 designation indicates unlimited shelf life and environmental tolerance with respect to moisture absorption. This classification means the component does not require special storage conditions or desiccant packaging, simplifying inventory management and reducing handling constraints for both the original and substitute parts.

Q: How do the inventory levels affect component selection?

A: The substitute part 5-530520-1 currently maintains 849 pieces in stock compared to 820 pieces for the original 530520-1. For legacy system applications requiring these obsolete components, the substitute part offers improved procurement availability while maintaining complete functional equivalence.
