TE Connectivity AMP Connectors 530002-5 Equivalent & Substitute Parts

Part Overview

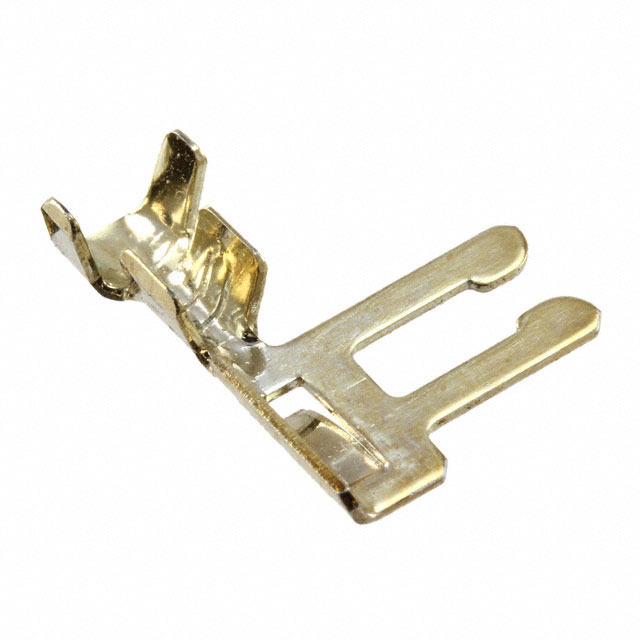

The TE Connectivity AMP Connectors 530002-5 is a Card Edge Connector classified as an Edge Terminal within the DUO-TYNE series. This non-gendered terminal accommodates wire gauges from 18-22 AWG and utilizes crimp termination with phosphor bronze contacts finished in tin. The component is currently in Active product status with 629 pieces available in new original inventory.

Substitute parts become necessary when the primary part reaches end-of-life status, inventory depletion, or when design requirements align with alternative configurations within the same product family. The 530002-5 has one identified substitute within the DUO-TYNE series that maintains functional compatibility through equivalent electrical and mechanical parameters.

Substiute Parts

530002-5

TE Connectivity AMP ConnectorsIn Stock: 707530002-5 Datasheet

Current PartRFQ

530002-8

TE Connectivity AMP ConnectorsIn Stock: 854530002-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 530002-5 is determined by strict alignment across the following critical parameters:

Mandatory Matching Parameters:

• Manufacturer: TE Connectivity AMP Connectors
• Category: Card Edge Connectors
• Series: DUO-TYNE
• Pin or Socket Configuration: Non-Gendered
• Contact Material: Phosphor Bronze
• Contact Finish: Tin
• Contact Termination: Crimp
• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN Classification: EAR99
• HTSUS Code: 8536.90.4000

Wire Gauge Compatibility: The 530002-5 specifies a wire gauge range of 18-22 AWG. Substitute parts must accommodate this range or provide equivalent coverage through discrete wire gauge specifications that fall within or match this range.

The identified substitute, 530002-8, maintains all mandatory parameters while specifying discrete wire gauge options of 18 AWG and 22 AWG, which collectively cover the range defined for the primary part.

Parameter Comparison

Engineering Selection Recommendations

530002-5 Selection Criteria: The 530002-5 remains the primary selection for applications where Active product status and current inventory availability are required. This part is suitable for new designs and ongoing production where long-term supply continuity is a consideration. The part carries RoHS non-compliant status, which may be acceptable for applications not subject to RoHS regulatory requirements.

530002-8 Selection Criteria: The 530002-8 is designated as Last Time Buy, indicating limited future availability. This part achieves ROHS3 compliance and REACH Unaffected status, making it suitable for applications subject to European Union environmental and chemical regulations. Selection of 530002-8 is appropriate when regulatory compliance with RoHS3 and REACH requirements is mandatory, provided that the Last Time Buy status aligns with project timelines and inventory planning.

Substitution Decision Framework:

• Use 530002-5 for applications requiring Active product status and non-compliant RoHS applications
• Use 530002-8 for applications requiring RoHS3 compliance and REACH compliance, with awareness of Last Time Buy status
• Both parts are electrically and mechanically equivalent for wire gauge accommodation, termination method, and contact material specifications

Frequently Asked Questions (FAQ)

Q: Can 530002-8 be used as a direct replacement for 530002-5 in existing designs?

A: Yes, from an electrical and mechanical standpoint. Both parts share identical specifications for wire gauge coverage (18-22 AWG range), contact material (phosphor bronze), contact finish (tin), termination method (crimp), and moisture sensitivity level. The primary differences are product status and regulatory compliance. Designs must account for the Last Time Buy status of 530002-8 and verify that RoHS3 compliance is either required or acceptable for the application.

Q: What is the significance of the wire gauge specification difference between 530002-5 and 530002-8?

A: The 530002-5 specifies wire gauge as a continuous range (18-22 AWG), while 530002-8 specifies discrete wire gauge options (18 AWG and 22 AWG). Both specifications provide equivalent coverage for the same wire sizes. The discrete specification in 530002-8 does not restrict functionality; it indicates that the terminal is rated for both 18 AWG and 22 AWG conductors.

Q: Are there packaging differences between these parts?

A: Packaging information is not provided in the available specifications for either part. Contact the manufacturer or authorized distributor for detailed packaging configuration details if packaging compatibility is a design consideration.

Q: What does Last Time Buy status mean for 530002-8?

A: Last Time Buy indicates that 530002-8 is in the final phase of its product lifecycle. Future availability is limited, and production will eventually cease. This status does not affect the part's current functionality or performance but requires careful inventory planning if this part is selected for new designs or long-term production commitments.

Q: Are both parts suitable for applications requiring regulatory compliance?

A: The 530002-5 is RoHS non-compliant and has undefined REACH status. The 530002-8 is ROHS3 compliant and REACH Unaffected. Applications subject to European Union environmental regulations or customer-mandated RoHS requirements must use 530002-8. Applications without such requirements may use either part based on availability and product status considerations.

Q: What is the base product number relationship between these parts?

A: Both 530002-5 and 530002-8 share the base product number 530002, indicating they belong to the same product family within the DUO-TYNE series. The suffix numbers (-5 and -8) differentiate specific configurations or compliance variants within this family.
