TE Connectivity 5227716-3 BNC Connector Equivalent & Substitute Parts
Part Overview
The TE Connectivity AMP Connectors 5227716-3 is a BNC Connector Jack, Female Socket rated for 50 Ohms impedance with panel mount bulkhead configuration and solder cup termination. This component is classified as Obsolete, necessitating identification of active equivalent and substitute parts for ongoing procurement and design applications. The connector operates across a frequency range up to 4 GHz with a voltage rating of 500 V and supports 500 mating cycles. Extended insulation features and RoHS compliance characterize this RF coaxial connector category.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Impedance | 50 Ohms |
| Contact Termination | Solder Cup |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Voltage Rating | 500 V |
| Mating Cycles | 500 |
| Operating Temperature Range | -55°C ~ 85°C |
| Number of Ports | 1 |
Substitute Part Grouping Explanation
Substitution of the 5227716-3 is determined by strict equivalence across the following critical parameters: BNC connector style, female socket jack type, 50 Ohm impedance, solder cup contact termination, panel mount bulkhead configuration with rear side nut, bayonet lock fastening, 4 GHz maximum frequency, 500 V voltage rating, and 500 mating cycles. All substitute parts listed maintain these core electrical and mechanical specifications.
Substitute parts are grouped into two categories:
Parametric Equivalents (TE Connectivity AMP Connectors): Parts 1-1337448-0, 227755-1, 227755-2, 5227169-5, 5227169-7, 5227169-8, and 5227755-1 maintain full functional equivalence with the main part across all critical parameters. These parts differ in secondary attributes such as center contact plating material (gold or tin), dielectric material composition (PTFE or PBT), body material (zinc or brass), and product status (active versus obsolete).
Similar Parts (Alternative Manufacturers): Parts 31-221 and 31-236 from Amphenol RF provide functional equivalence with manufacturer-specific variations in center contact material (beryllium copper versus phosphor bronze), body material (brass versus zinc), and measured insertion loss specifications. Part 31-236 operates at a reduced maximum frequency of 2 GHz compared to the 4 GHz specification of the main part.
Obsolete Cross-Reference: Part 227169-7 shares obsolete product status with the main part and serves as a historical reference for legacy system documentation.
Parameter Comparison
| Part Number | Manufacturer | Product Status | Connector Style | Impedance | Frequency Max | Operating Temp | Center Contact Plating | Body Material | Dielectric Material | RoHS Status |
|---|---|---|---|---|---|---|---|---|---|---|
| 5227716-3 | TE Connectivity AMP | Obsolete | BNC | 50 Ohms | 4 GHz | -55°C ~ 85°C | Gold | Zinc | Fluoropolymer (FP) | RoHS Compliant |
| 1-1337448-0 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Gold | Brass | Polytetrafluoroethylene (PTFE) | RoHS Compliant |
| 227755-1 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Tin | Zinc | Polybutylene Terephthalate (PBT) | RoHS non-compliant |
| 227755-2 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Gold | Zinc | Polybutylene Terephthalate (PBT) | RoHS non-compliant |
| 5227169-5 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Tin | Zinc | Polybutylene Terephthalate (PBT) | RoHS Compliant |
| 5227169-7 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Gold | Zinc | Polybutylene Terephthalate (PBT) | ROHS3 Compliant |
| 5227169-8 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Gold | Zinc | Polytetrafluoroethylene (PTFE) | RoHS Compliant |
| 5227755-1 | TE Connectivity AMP | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Tin | Zinc | Polybutylene Terephthalate (PBT) | ROHS3 Compliant |
| 31-221 | Amphenol RF | Active | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Silver | Brass | Polytetrafluoroethylene (PTFE) | ROHS3 Compliant |
| 31-236 | Amphenol RF | Active | BNC | 50 Ohms | 2 GHz | -65°C ~ 165°C | Silver | Brass | Polytetrafluoroethylene (PTFE) | ROHS3 Compliant |
| 227169-7 | TE Connectivity AMP | Obsolete | BNC | 50 Ohms | 4 GHz | -65°C ~ 165°C | Gold | Not specified | Not specified | Not applicable |
Engineering Selection Recommendations
Primary Recommendation for Active Replacement: Part 5227169-8 (TE Connectivity AMP Connectors) provides direct functional substitution with active product status, RoHS Compliant certification, REACH Affected designation, and extended operating temperature range (-65°C ~ 165°C). This part maintains gold center contact plating and PTFE dielectric material matching the original 5227716-3 specification while offering superior temperature performance.
Alternative with Enhanced Compliance: Part 1-1337448-0 (TE Connectivity AMP Connectors, Greenpar Series) delivers active status with RoHS Compliant certification and includes a lockwasher in the package configuration. This part features brass body material and PTFE dielectric composition, supporting the full 4 GHz frequency specification and extended temperature range.
RoHS3 Compliant Options: Parts 5227169-7, 5227755-1, and 31-221 carry ROHS3 Compliant certification for applications requiring enhanced regulatory compliance. Part 5227169-7 maintains zinc body material and gold plating consistent with the original design. Part 31-221 from Amphenol RF provides an alternative manufacturer source with documented insertion loss specification of 0.2 dB and beryllium copper center contact material.

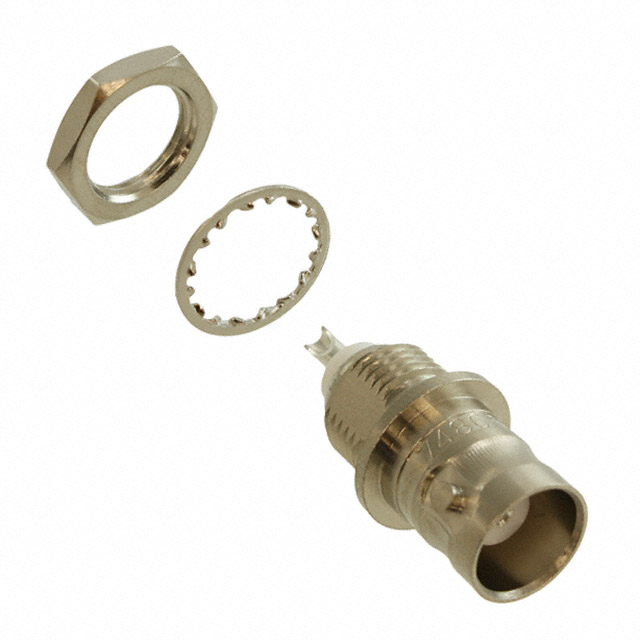

Frequency-Limited Alternative: Part 31-236 (Amphenol RF) operates at a reduced maximum frequency of 2 GHz and is suitable only for applications not requiring the full 4 GHz bandwidth of the original connector.
Obsolete Reference: Part 227169-7 shares obsolete status with the main part and should not be selected for new designs or ongoing procurement.
Frequently Asked Questions (FAQ)
Q: Can 5227169-8 directly replace 5227716-3 in existing designs?
A: Yes. Part 5227169-8 maintains all critical electrical and mechanical parameters: BNC connector style, female socket jack type, 50 Ohm impedance, solder cup termination, panel mount bulkhead configuration, 4 GHz maximum frequency, 500 V voltage rating, and 500 mating cycles. The extended operating temperature range (-65°C ~ 165°C versus -55°C ~ 85°C) provides additional performance margin.
Q: What is the difference between gold and tin center contact plating?
A: Center contact plating material affects electrical contact resistance and corrosion resistance characteristics. Gold plating (5227169-8, 5227169-7, 227755-2) provides superior corrosion resistance and lower contact resistance. Tin plating (227755-1, 5227169-5, 5227755-1) offers cost optimization while maintaining functional performance within specified electrical parameters.
Q: Are TE Connectivity and Amphenol RF parts interchangeable?
A: Parts 31-221 and 31-236 from Amphenol RF provide functional equivalence across core parameters but differ in center contact material (beryllium copper versus phosphor bronze), body material (brass versus zinc), and measured insertion loss (0.2 dB specified). Part 31-236 operates at 2 GHz maximum frequency, limiting its use to applications not requiring 4 GHz bandwidth.
Q: What is the significance of PTFE versus PBT dielectric material?
A: Polytetrafluoroethylene (PTFE) dielectric material (5227169-8, 1-1337448-0, 31-221, 31-236) provides superior high-frequency performance and temperature stability. Polybutylene Terephthalate (PBT) dielectric material (227755-1, 227755-2, 5227169-5, 5227169-7, 5227755-1) offers cost optimization while maintaining functional performance within specified electrical parameters.
Q: Why is RoHS compliance status different across substitute parts?
A: RoHS compliance reflects manufacturing process and material composition at the time of production. Parts 5227716-3, 1-1337448-0, 5227169-5, and 5227169-8 carry RoHS Compliant or ROHS3 Compliant certification. Parts 227755-1 and 227755-2 are RoHS non-compliant and require evaluation against specific application regulatory requirements.
Q: What package configurations are available?
A: The main part 5227716-3 is supplied without specified packaging. Substitute parts are available in Bulk packaging (1-1337448-0, 227755-1, 5227169-5, 5227169-7, 5227169-8, 5227755-1, 31-221, 31-236) or unspecified packaging (227755-2, 227169-7). Packaging selection should align with procurement and inventory management requirements.
Q: Can 31-236 be used in applications requiring 4 GHz operation?
A: No. Part 31-236 operates at a maximum frequency of 2 GHz and is not suitable for applications requiring the full 4 GHz bandwidth specification of the original 5227716-3 connector.
Q: What is the inventory status for substitute parts?
A: All substitute parts listed maintain active inventory: 1-1337448-0 (1042 pcs), 227755-1 (4813 pcs), 227755-2 (1085 pcs), 5227169-5 (1830 pcs), 5227169-7 (643 pcs), 5227169-8 (1695 pcs), 5227755-1 (952 pcs), 31-221 (1173 pcs), and 31-236 (1738 pcs). The original 5227716-3 maintains 856 pcs in stock with obsolete product status.
